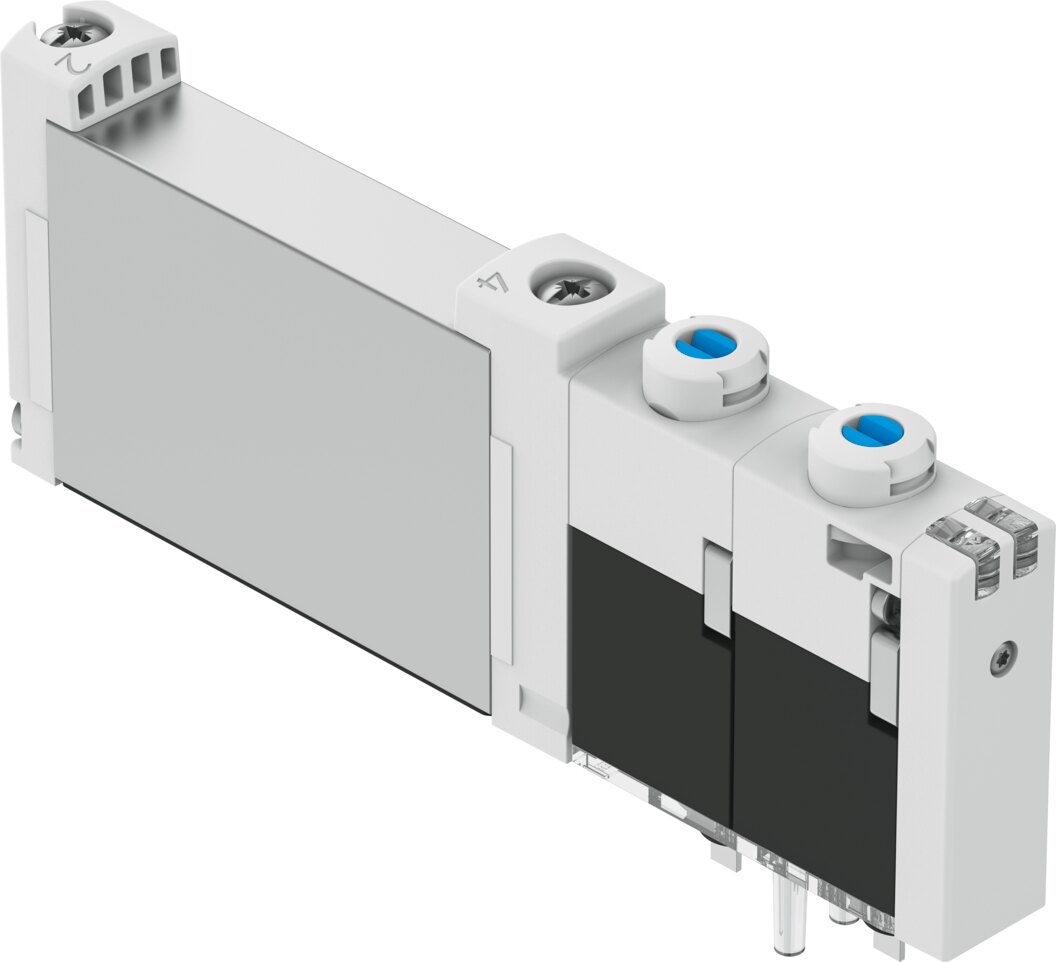

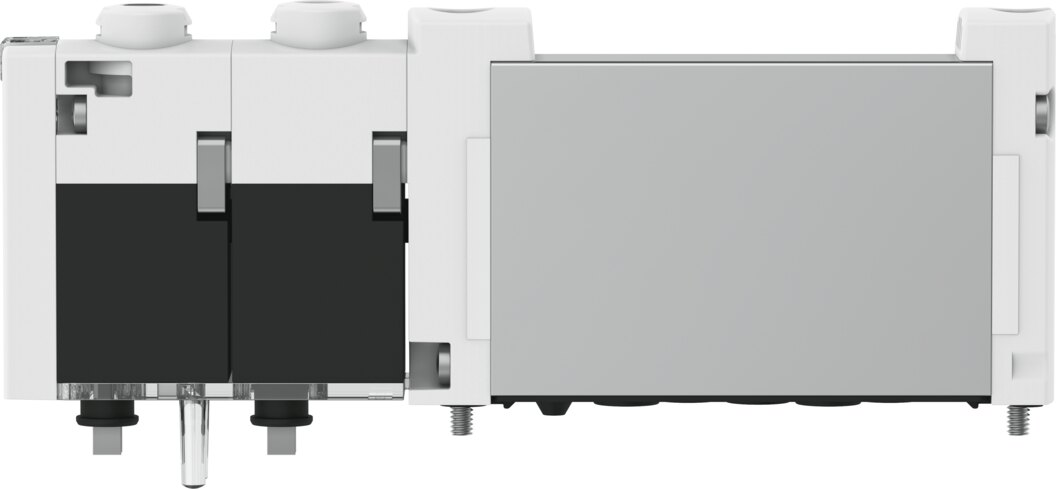

Solenoid valve 5/3 pressurised centre, 10 mm, for manifold rail VUVG-B10-P53U-ZT-F-1T1L-F1A - Festo 8141523

Festo ✓ Original product Brand new

5/3 pressurised centre solenoid valve from the VUVG series: 200 l/min standard nominal flow, operating pressure -0.9 to 10 bar. Flange connection for manifold rail, valve size 10 mm, 24 V DC coil with 1.0 W.

Net
€112.01
excl. VAT
Item FES-8141523
Manufacturer no. VUVG-B10-P53U-ZT-F-1T1L-F1A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

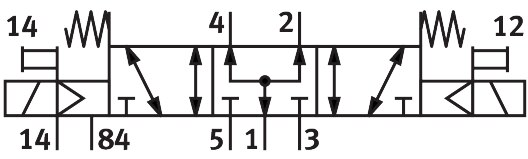

The solenoid valve VUVG-B10-P53U-ZT-F-1T1L-F1A applies pressure to ports 2 and 4 in the mid-position, working as a 5/3-way valve. At 10 mm valve size it delivers 200 l/min.

Benefits

  • Flow and switching time: 200 l/min at valve size 10 mm, switches on in 12 ms and off in 38 ms.
  • Coil: 22 V DC: 1.0 W, duty cycle 100 %.
  • Cleanroom: Class 6 to ISO 14644-1.
  • Protection: Degree of protection IP40, ambient -5 to 60 °C.
  • Pressure range: -0.9 to 10 bar, suitable for vacuum.

Application

In the mid-position both cylinder sides are pressurised. External pilot air, pilot pressure 3 to 8 bar. Manual override detenting, non-detenting. Mounting on manifold rail, product weight 58 g. Operating medium compressed air to ISO 8573-1:2010 [7:4:4]. Media temperature -5 to 60 °C, ambient -5 to 60 °C. Once lubricated, lubrication must continue. Suitable for battery production (F1a, low Cu/Zn/Ni).

Technical data

TypeVUVG-B10-P53U-ZT-F-1T1L-F1A
Festo part number8141523
Valve function5/3-way, mid-position pressurised
Type of actuationElectrical
Valve size10 mm
Standard nominal flow rate (to DIN 1343)200 l/min
Pneumatic working portFlange
Operating voltage24 V DC
Operating pressure-0.9 to 10 bar
DesignPiston spool
Type of resetMechanical spring
Approvalc UL us - Recognized (OL)
Degree of protectionIP40
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting, non-detenting
Type of pilotingPiloted
Pilot air supplyExternal
Flow directionReversible
OverlapIndeterminate overlap
Signal status displayLED
Pilot pressure3 to 8 bar
Maximum switching frequency3 Hz
Switching time off38 ms
Switching time on12 ms
Changeover time16 ms
Duty cycle100 %
Maximum positive test pulse with 0 signal1600 µs
Maximum negative test pulse with 1 signal3000 µs
Characteristic coil data22 V DC: 1.0 W
Permissible voltage fluctuations+/- 10 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured to ISO 14644-14Class 6 to ISO 14644-1
Media temperature-5 to 60 °C
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5 to 60 °C
Product weight58 g
Electrical connectionVia sub-base
Type of mountingOn manifold rail
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingWrought aluminium alloy
Weight0.06 kg
ManufacturerFesto
Hersteller-NrVUVG-B10-P53U-ZT-F-1T1L-F1A
EAN4052568576929
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
Seal materialHNBR, NBR
Housing materialAluminium
MediumCompressed air
Function5/3 pressurised
Flow rate [l/min]200
Actuation typeElectrical
Medientemperatur [°C]-5 bis 60
SeriesVUVG
Betriebsdruck max [bar]10
Pneumatic connectionFlange
Protection ratingIP40
Temperaturbereich-5-60 °C
Temperature (max.)60
