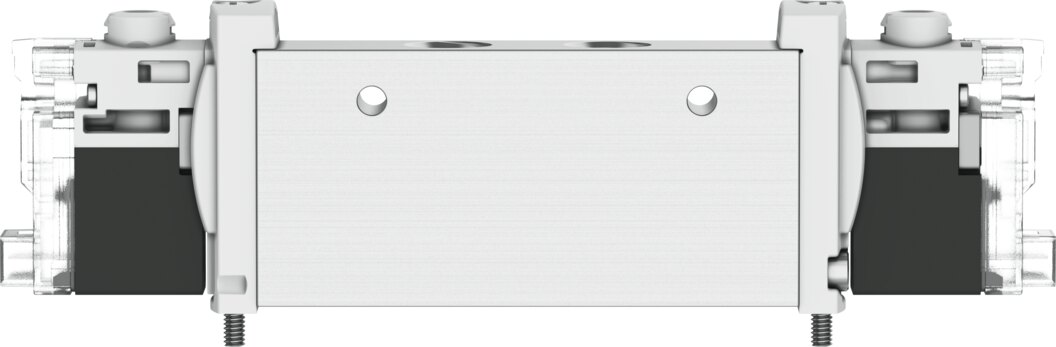

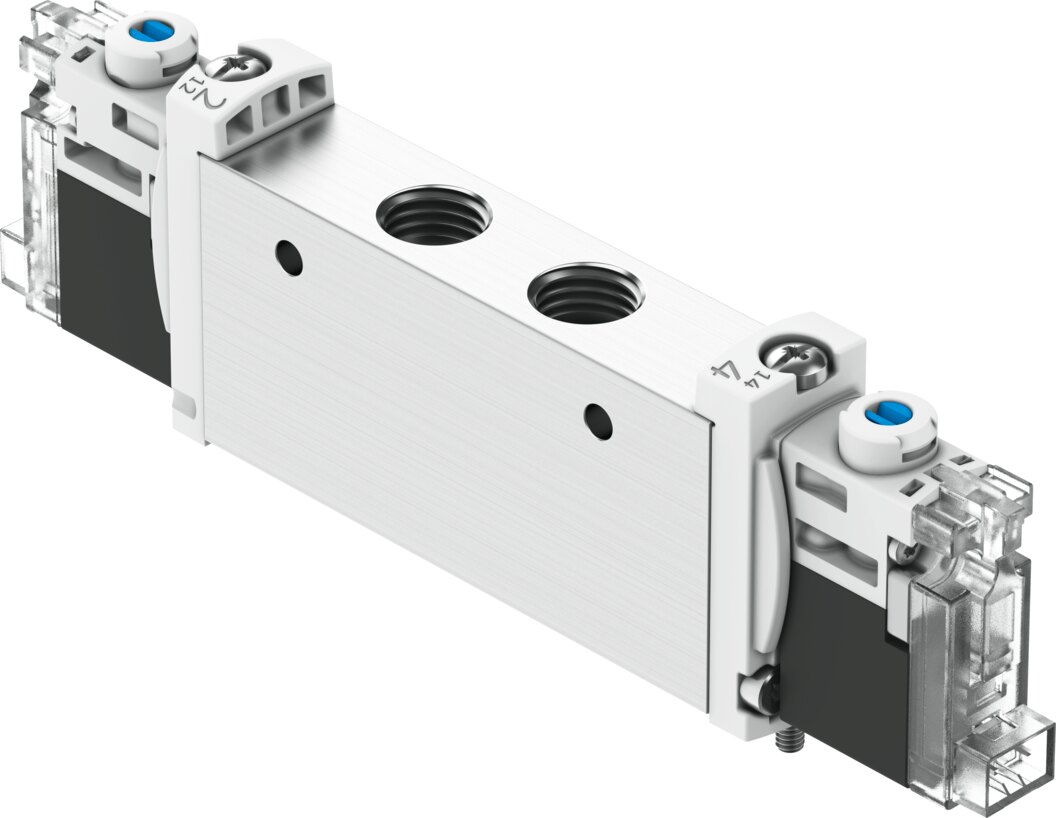

Solenoid valve 2x 3/2 normally closed, monostable, 14 mm, G1/8 VUVG-L14-T32C-AZT-G18-1H2L-F1A - Festo 8164561

Festo ✓ Original product Brand new

Festo solenoid valve VUVG-L14-T32C-AZT-G18-1H2L-F1A, function 2x 3/2 normally closed, monostable: 560 l/min standard nominal flow, operating pressure 1.5 to 10 bar. Port G1/8, valve size 14 mm, 24 V DC coil with 0.8 W.

Net
€113.81
excl. VAT
Item FES-8164561
Manufacturer no. VUVG-L14-T32C-AZT-G18-1H2L-F1A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VUVG-L14-T32C-AZT-G18-1H2L-F1A contains two separately actuated 3/2-way functions, both closed in the normal position. In valve size 14 mm it reaches 560 l/min standard nominal flow.

Benefits

  • Flow and switching time: 560 l/min at valve size 14 mm, switches on in 11 ms and off in 33 ms.
  • Coil: 24 V DC: 0.8 W, duty cycle 100 %.
  • Pressure range: 1.5 to 10 bar operating pressure.
  • Protection: Degree of protection IP40, ambient -5 to 50 °C.
  • Cleanroom: Class 5 to ISO 14644-1.

Application

Use: single-acting cylinders, separate pilot circuits. External pilot air, pilot pressure 1.5 to 8 bar. Manual override detenting, non-detenting, concealed. Mounting on manifold rail, with through-hole, product weight 89 g. Medium: compressed air to ISO 8573-1:2010 [7:4:4]. Media temperature -5 to 50 °C, ambient -5 to 50 °C. Lubricated operation possible, then always required. Suitable for battery production (F1a, low Cu/Zn/Ni).

Technical data

TypeVUVG-L14-T32C-AZT-G18-1H2L-F1A
Festo part number8164561
Valve function2x3/2-way, closed, monostable
Type of actuationElectrical
Valve size14 mm
Standard nominal flow rate (to DIN 1343)560 l/min
Pneumatic working portG1/8
Operating voltage24 V DC
Operating pressure1.5 to 10 bar
DesignPiston spool
Type of resetPneumatic spring
ApprovalRCM Mark, c UL us - Recognized (OL)
Certificate issuing authorityUL MH19482
Degree of protectionIP40
Nominal size4.6 mm
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting, non-detenting, concealed
Type of pilotingPiloted
Pilot air supplyExternal
OverlapPositive overlap
Pilot pressure1.5 to 8 bar
Suitability for vacuumNo
Switching time off33 ms
Switching time on11 ms
Duty cycle100 %
Maximum positive test pulse with 0 signal700 µs
Maximum negative test pulse with 1 signal900 µs
Characteristic coil data24 V DC: 0.8 W
Permissible voltage fluctuations+/- 10 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Restrictions for ambient and media temperature-5 - 50 °C, without holding current reduction
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured to ISO 14644-14Class 5 to ISO 14644-1
Storage temperature-20 to 60 °C
Media temperature-5 to 50 °C
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5 to 50 °C
Product weight89 g
Electrical connectionPlug
Type of mountingOn manifold rail, with through-hole
Pilot air port 12/14M5
Pneumatic connection, port 1G1/8
Pneumatic connection, port 2G1/8
Pneumatic connection, port 3G1/8
Pneumatic connection, port 4G1/8
Pneumatic connection, port 5G1/8
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingWrought aluminium alloy
Material screwsCoated steel
Weight0.095 kg
ManufacturerFesto
Hersteller-NrVUVG-L14-T32C-AZT-G18-1H2L-F1A
EAN4052568612337
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadG 1/8
Nominal size DN [mm]4,6
Seal materialHNBR, NBR
Housing materialAluminium
MediumCompressed air
Function2x3/2 closed monostable
Flow rate [l/min]560
Actuation typeElectrical
Medientemperatur [°C]-5 bis 50
SeriesVUVG
Betriebsdruck max [bar]10
Pneumatic connectionG1/8
Protection ratingIP40
Temperature (max.)50
