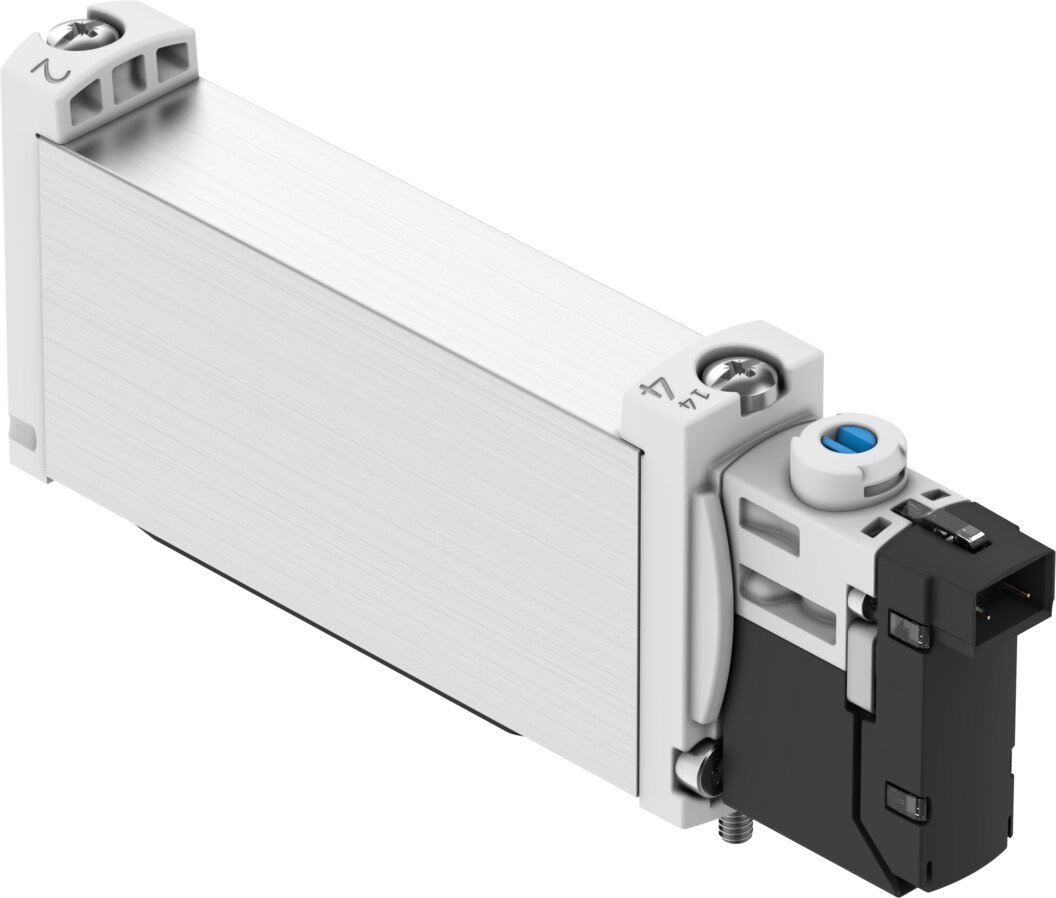

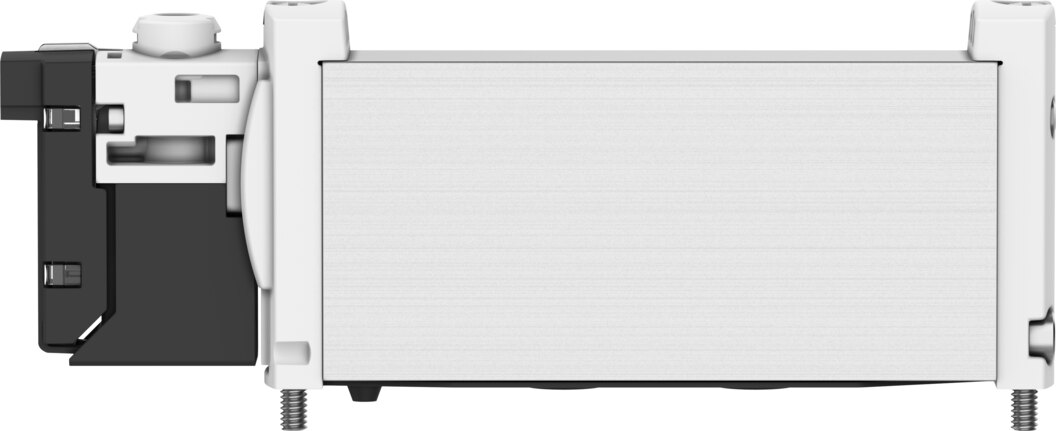

Solenoid valve 5/2-way monostable, valve size 14 mm, sub-base version VUVG-B14-M52-MZT-F-1H3L - Festo 578773
The solenoid valve VUVG-B14-M52-MZT-F-1H3L with 5/2-way monostable function and 14 mm valve size controls double-acting cylinders and actuators. Sub-base version for mounting on a manifold rail. Housing in wrought aluminium alloy, seals in HNBR, NBR.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Valve function 5/2-way monostable at 14 mm valve size: the Festo solenoid valve VUVG-B14-M52-MZT-F-1H3L controls double-acting cylinders and actuators. As a monostable 5/2-way valve it controls both chambers of a double-acting cylinder and drops back to its normal position on loss of signal.
Benefits
- Valve size 14 mm for compact valve arrangements
- Sub-base version for mounting on a manifold rail
- External pilot air at 3 to 8 bar
Applications
The valve runs on compressed air to ISO 8573-1:2010 [7:4:4]. Festo 578773 is mounted on manifold rail.
Technical data
| Feature | Value |
|---|---|
| Type | VUVG-B14-M52-MZT-F-1H3L |
| Festo part number | 578773 |
| Series | VUVG |
| Valve function | 5/2-way monostable |
| Type of actuation | Electrical |
| Valve size | 14 mm |
| Design | Piston spool |
| Type of reset | Mechanical spring |
| Exhaust air function | Can be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of piloting | Piloted |
| Pilot air supply | External |
| Pilot pressure | 3 to 8 bar |
| Duty cycle | 100 % |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Type of mounting | On manifold rail |
| Seal material | HNBR, NBR |
| Housing material | Wrought aluminium alloy |
| Weight | 0.085 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VUVG-B14-M52-MZT-F-1H3L |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Medium | Compressed air |
| Function | 5/2 monostable |
| Actuation type | Electrical |
| Pneumatic connection | Flange |
