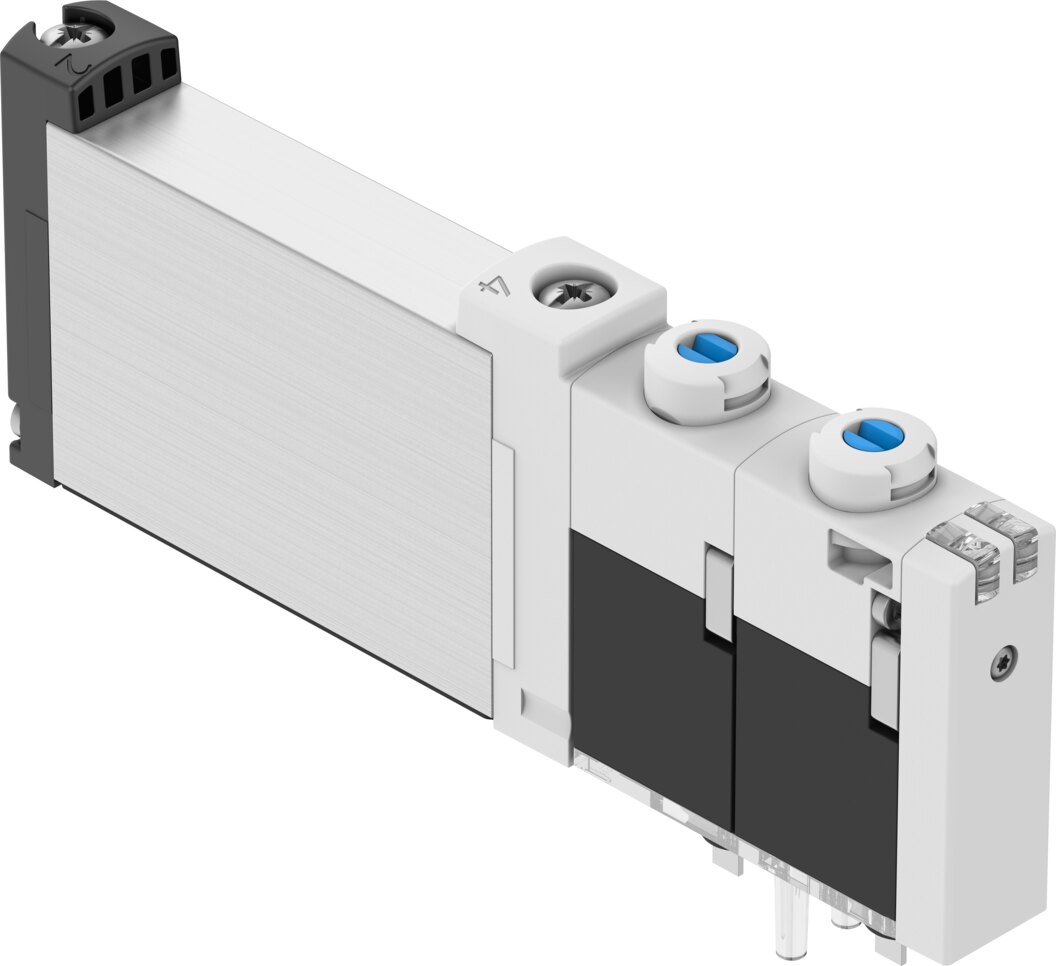

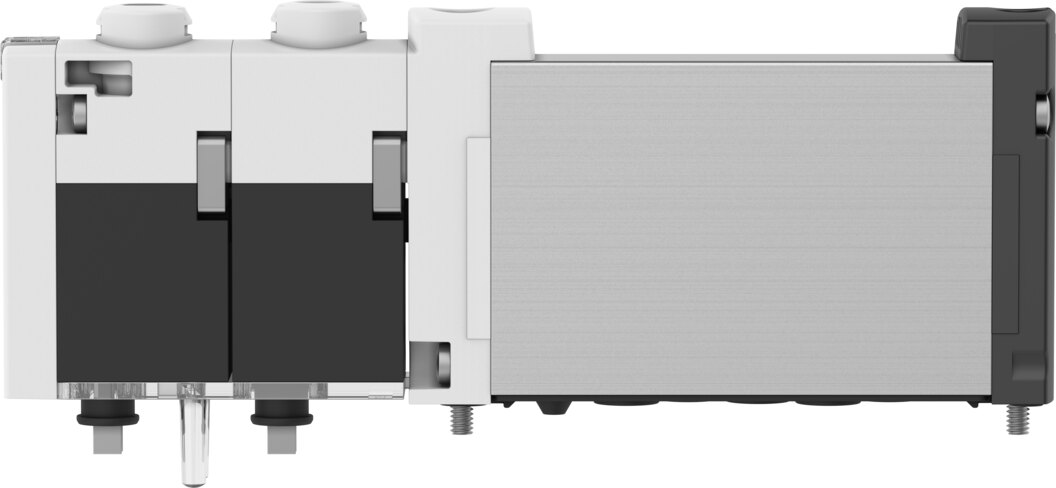

Solenoid valve 2x 3/2 normally closed, monostable, 10 mm, for manifold rail VUVG-B10-T32C-AZT-F-1T1L-EX2C - Festo 8041895

Festo ✓ Original product Brand new

2x 3/2 normally closed, monostable solenoid valve from the VUVG series for 150 l/min at 1.5 to 10 bar operating pressure. Flange connection for manifold rail, valve size 10 mm, 24 V DC coil with 1.0 W.

Net
€124.25
excl. VAT
Item FES-8041895
Manufacturer no. VUVG-B10-T32C-AZT-F-1T1L-EX2C
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VUVG-B10-T32C-AZT-F-1T1L-EX2C combines two 3/2-way valves (normally closed) in one housing. At 10 mm valve size it delivers 150 l/min.

Benefits

  • Flow and switching time: 150 l/min at valve size 10 mm, switches on in 8 ms and off in 20 ms.
  • Corrosion protection: CRC 2 - Moderate corrosion stress.
  • Pressure range: 1.5 to 10 bar operating pressure.
  • Protection: Degree of protection IP65, IP67, ambient -5 to 60 °C.
  • Coil: 22 V DC: 1.0 W, duty cycle 100 %.

Application

Suitable for single-acting cylinders and separate air circuits. External pilot air, pilot pressure 1.5 to 8 bar. Manual override detenting, non-detenting. Installation on manifold rail, product weight 59 g. Operating medium compressed air to ISO 8573-1:2010 [7:4:4]. Media temperature -5 to 60 °C, ambient -5 to 60 °C. Once lubricated, lubrication must continue.

Technical data

TypeVUVG-B10-T32C-AZT-F-1T1L-EX2C
Festo part number8041895
Valve function2x3/2-way, closed, monostable
Type of actuationElectrical
Valve size10 mm
Standard nominal flow rate (to DIN 1343)150 l/min
Pneumatic working portFlange
Operating voltage24 V DC
Operating pressure1.5 to 10 bar
DesignPiston spool
Type of resetPneumatic spring
Approvalc UL us - Recognized (OL)
Degree of protectionIP65, IP67
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting, non-detenting
Type of pilotingPiloted
Pilot air supplyExternal
OverlapPositive overlap
Signal status displayLED
Pilot pressure1.5 to 8 bar
Maximum switching frequency3 Hz
Switching time off20 ms
Switching time on8 ms
Duty cycle100 %
Maximum positive test pulse with 0 signal1600 µs
Maximum negative test pulse with 1 signal3000 µs
Characteristic coil data22 V DC: 1.0 W
Permissible voltage fluctuations+/- 10 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Media temperature-5 to 60 °C
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5 to 60 °C
Product weight59 g
Electrical connectionVia sub-base
Type of mountingOn manifold rail
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingWrought aluminium alloy
Weight0.065 kg
ManufacturerFesto
Hersteller-NrVUVG-B10-T32C-AZT-F-1T1L-EX2C
EAN4052568434724
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
Seal materialHNBR, NBR
Housing materialAluminium
MediumCompressed air
Function2x3/2 closed monostable
Flow rate [l/min]150
Actuation typeElectrical
Medientemperatur [°C]-5 bis 60
SeriesVUVG
Betriebsdruck max [bar]10
Pneumatic connectionFlange
Temperaturbereich-5-60 °C
Temperature (max.)60
