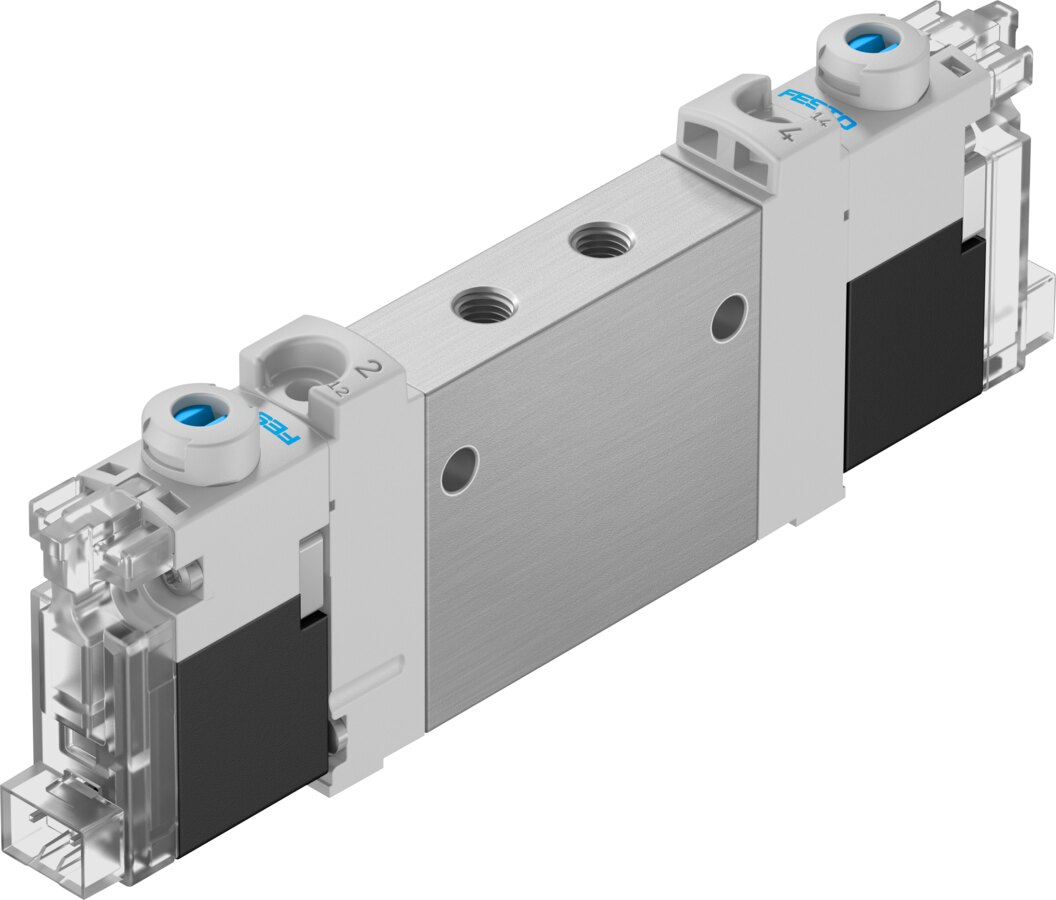

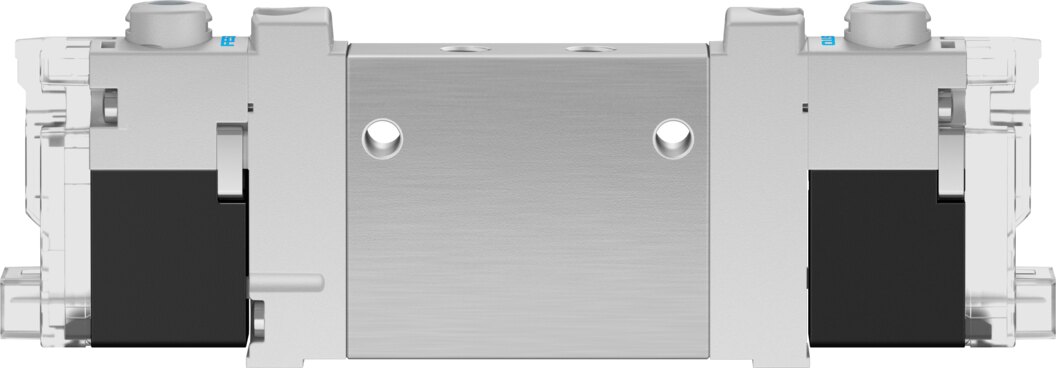

Solenoid valve 2x 3/2 normally closed, monostable, 10 mm, M5 VUVG-LK10-T32C-AT-M5-1H2L-F1A - Festo 8173199

Festo ✓ Original product Brand new

Festo solenoid valve VUVG-LK10-T32C-AT-M5-1H2L-F1A, function 2x 3/2 normally closed, monostable for 180 l/min at 1.5 to 7 bar operating pressure. Port M5, valve size 10 mm, 24 V DC coil with 0.8 W.

Net
€63.45
excl. VAT
Item FES-8173199
Manufacturer no. VUVG-LK10-T32C-AT-M5-1H2L-F1A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

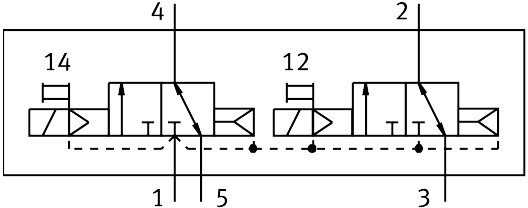

The solenoid valve VUVG-LK10-T32C-AT-M5-1H2L-F1A combines two 3/2-way valves (normally closed) in one housing. In valve size 10 mm it reaches 180 l/min standard nominal flow.

Benefits

  • Flow and switching time: 180 l/min at valve size 10 mm, switches on in 12 ms and off in 14 ms.
  • Pressure range: 1.5 to 7 bar operating pressure.
  • Protection: Degree of protection IP40, ambient -5 to 50 °C.
  • Cleanroom: Class 6 to ISO 14644-1.
  • Coil: 24 V DC: 0.8 W, duty cycle 100 %.

Application

Use: single-acting cylinders, separate pilot circuits. Pilot air is taken internally from the supply port. Manual override detenting, non-detenting. Installation on manifold rail, with through-hole, product weight 55 g. Medium: compressed air to ISO 8573-1:2010 [7:4:4]. Media temperature -5 to 50 °C, ambient -5 to 50 °C. Lubricated operation possible, then always required. Suitable for battery production (F1a, low Cu/Zn/Ni).

Technical data

TypeVUVG-LK10-T32C-AT-M5-1H2L-F1A
Festo part number8173199
Valve function2x3/2-way, closed, monostable
Type of actuationElectrical
Valve size10 mm
Standard nominal flow rate (to DIN 1343)180 l/min
Pneumatic working portM5
Operating voltage24 V DC
Operating pressure1.5 to 7 bar
DesignPiston spool with sealing ring
Type of resetPneumatic spring
Approvalc UL us - Recognized (OL)
Certificate issuing authorityUL MH19482
Degree of protectionIP40
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting, non-detenting
Type of pilotingPiloted
Pilot air supplyInternal
Flow directionNon-reversible
OverlapPositive overlap
Signal status displayLED
Maximum switching frequency2 Hz
Switching time off14 ms
Switching time on12 ms
Duty cycle100 %
Maximum positive test pulse with 0 signal1600 µs
Maximum negative test pulse with 1 signal3000 µs
Characteristic coil data24 V DC: 0.8 W
Permissible voltage fluctuations+/- 10 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured to ISO 14644-14Class 6 to ISO 14644-1
Media temperature-5 to 50 °C
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5 to 50 °C
Product weight55 g
Electrical connectionPlug
Type of mountingOn manifold rail, with through-hole
Pneumatic connection, port 2M5
Pneumatic connection, port 4M5
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingWrought aluminium alloy
Weight0.055 kg
ManufacturerFesto
Hersteller-NrVUVG-LK10-T32C-AT-M5-1H2L-F1A
EAN4052568607074
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM5
Seal materialHNBR, NBR
Housing materialAluminium
MediumCompressed air
Function2x3/2 closed monostable
Flow rate [l/min]180
Actuation typeElectrical
Medientemperatur [°C]-5 bis 50
SeriesVUVG
Betriebsdruck max [bar]7
Pneumatic connectionM5
Protection ratingIP40
Temperature (max.)50
