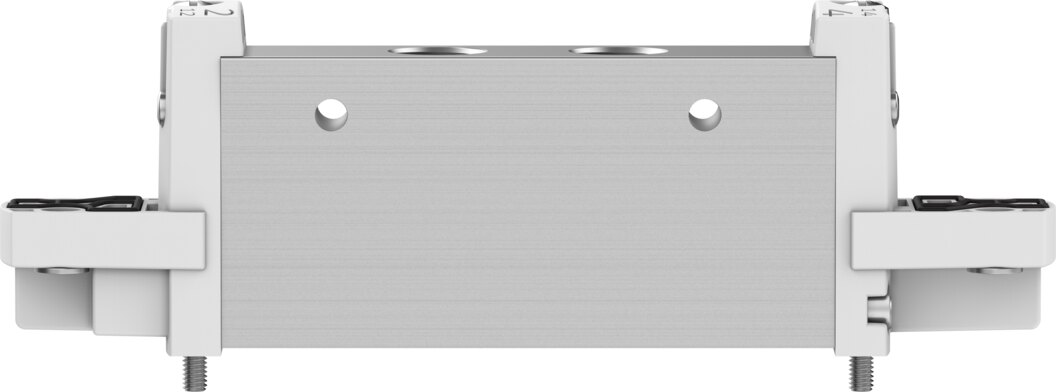

Solenoid valve 5/3 exhausted centre, 14 mm, G1/8 VUVG-L14-P53E-G18-P1 - Festo 8033533

Festo ✓ Original product Brand new

5/3 exhausted centre solenoid valve from the VUVG series: 560 l/min standard nominal flow, operating pressure 3 to 8 bar. Port G1/8, valve size 14 mm, pilot interface to ISO 15218.

Net
€71.32
excl. VAT
Item FES-8033533
Manufacturer no. VUVG-L14-P53E-G18-P1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VUVG-L14-P53E-G18-P1 connects ports 2 and 4 to exhaust in the mid-position, working as a 5/3-way valve. At 14 mm valve size it delivers 560 l/min.

Benefits

  • Flow and switching time: 560 l/min at valve size 14 mm, switches on in 14 ms and off in 24 ms.
  • Protection: Degree of protection IP65 with plug socket.
  • Piloting: Interface to ISO 15218.
  • Cleanroom: Class 5 to ISO 14644-1.
  • Pressure range: 3 to 8 bar operating pressure.
  • Corrosion protection: CRC 2 - Moderate corrosion stress.

Application

In the mid-position the cylinder is pressureless. Internal pilot air from port 1. Mounting on manifold rail, with through-hole, product weight 65 g. Operating medium compressed air to ISO 8573-1:2010 [7:4:4]. Media temperature -5 to 60 °C, ambient -5 to 60 °C. Once lubricated, lubrication must continue.

Technical data

TypeVUVG-L14-P53E-G18-P1
Festo part number8033533
Valve function5/3-way, mid-position exhausted
Type of actuationElectrical
Valve size14 mm
Standard nominal flow rate (to DIN 1343)560 l/min
Pneumatic working portG1/8
Operating pressure3 to 8 bar
DesignPiston spool
Type of resetMechanical spring
Approvalc UL us - Recognized (OL)
CE marking (see declaration of conformity)To EU EMC Directive, to EU Low Voltage Directive, to EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS regulations, to UK regulations for electrical equipment
Certificate issuing authorityUL MH19482
Degree of protectionIP65, with electric pilot valve and plug socket
Nominal size5.6 mm
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Type of pilotingPiloted
Pilot air supplyInternal
OverlapPositive overlap
Pilot pressure3 to 8 bar
Suitability for vacuumNo
Switching time off24 ms
Switching time on14 ms
Changeover time20 ms
Duty cycle100 %
Maximum positive test pulse with 0 signal700 µs
Maximum negative test pulse with 1 signal900 µs
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured to ISO 14644-14Class 5 to ISO 14644-1
Media temperature-5 to 60 °C
Ambient temperature-5 to 60 °C
Product weight65 g
Electrical connectionVia electric pilot valve
Type of mountingOn manifold rail, with through-hole
Pneumatic connection, port 1G1/8
Pneumatic connection, port 2G1/8
Pneumatic connection, port 3G1/8
Pneumatic connection, port 4G1/8
Pneumatic connection, port 5G1/8
Pilot control interfaceTo ISO 15218
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingWrought aluminium alloy
ManufacturerFesto
Hersteller-NrVUVG-L14-P53E-G18-P1
EAN4052568428969
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadG 1/8
Nominal size DN [mm]5,6
Seal materialHNBR, NBR
Housing materialAluminium
MediumCompressed air
Function5/3 exhausted
Flow rate [l/min]560
Actuation typeElectrical
Medientemperatur [°C]-5 bis 60
NormISO 15218
SeriesVUVG
Betriebsdruck max [bar]8
Pneumatic connectionG1/8
Protection ratingIP65
Temperaturbereich-5-60 °C
Temperature (max.)60
