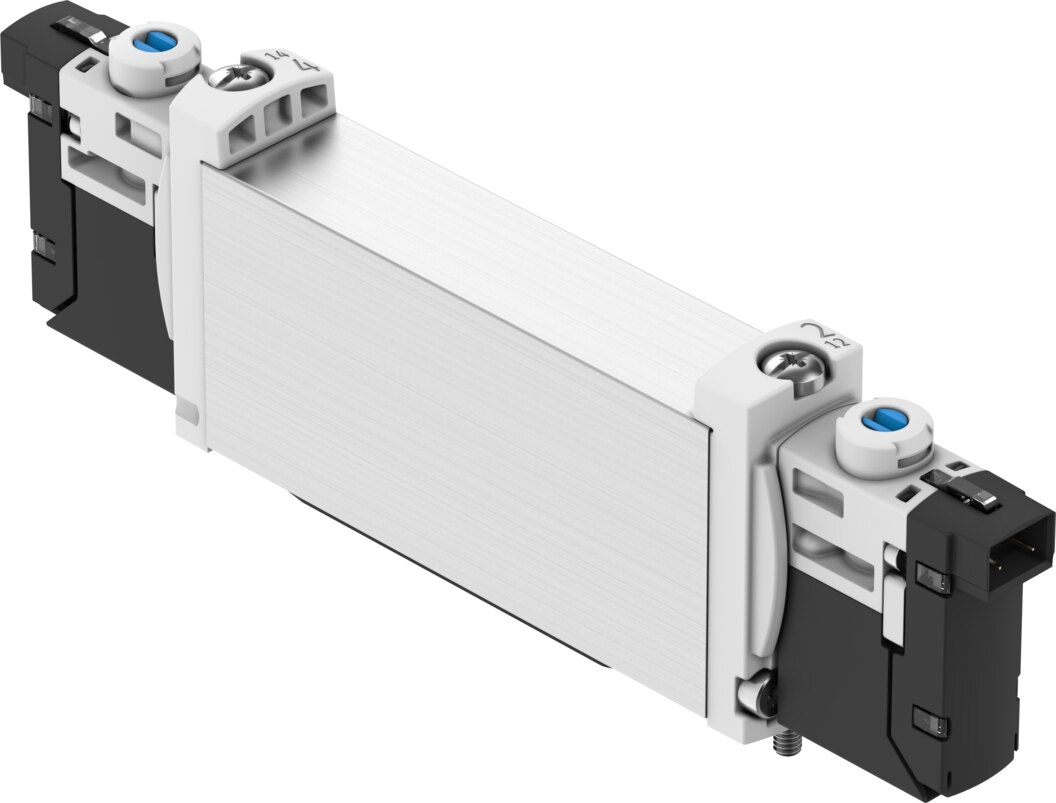

Solenoid valve 5/2-way monostable, valve size 10 mm, sub-base version VUVG-B10-M52-MZT-F-1H2L-W1 - Festo 578167

Festo ✓ Original product Brand new

230 l/min standard nominal flow from 10 mm valve size: the solenoid valve VUVG-B10-M52-MZT-F-1H2L-W1 controls double-acting cylinders and actuators. Valve function 5/2-way monostable, operating pressure -0.9 to 8 bar, sub-base version for mounting on a manifold rail, coil 24 V DC with 1.0 W.

Net
€64.44
excl. VAT
Item FES-578167
Manufacturer no. VUVG-B10-M52-MZT-F-1H2L-W1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VUVG-B10-M52-MZT-F-1H2L-W1 from the Festo VUVG series delivers 230 l/min standard nominal flow at 10 mm valve size. Without a signal the 5/2-way valve returns to its normal position, so a double-acting cylinder moves to a defined position.

Benefits

  • Standard nominal flow rate 230 l/min at 10 mm valve size, nominal size 2.3 mm
  • Operating pressure -0.9 to 8 bar, suitable for vacuum
  • Short switching times: 8 ms on, 24 ms off
  • Coil 24 V DC with 1.0 W, 100 % duty cycle
  • Sub-base version for mounting on a manifold rail
  • Cleanroom suitable: class 5 to ISO 14644-1

Applications

The valve runs on compressed air to ISO 8573-1:2010 [7:4:4]. Once lubricated, operation must remain lubricated. The VUVG-B10-M52-MZT-F-1H2L-W1 is rated for media and ambient temperatures of -5 to 60 °C and can be installed in any position. Mounting of the VUVG-B10-M52-MZT-F-1H2L-W1: on manifold rail, electrical connection 2-pin, plug pattern H, horizontal connection, cable with open end.

Technical data

FeatureValue
TypeVUVG-B10-M52-MZT-F-1H2L-W1
Festo part number578167
SeriesVUVG
Valve function5/2-way monostable
Type of actuationElectrical
Valve size10 mm
Standard nominal flow rate230 l/min
Pneumatic working portFlange
Operating voltage24 V DC
Operating pressure-0.9 to 8 bar
DesignPiston spool
Type of resetMechanical spring
ApprovalRCM mark, c UL us - Recognized (OL)
CE marking (see declaration of conformity)To EU EMC Directive, to EU Low Voltage Directive, to EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS regulations, to UK electrical equipment regulations
Degree of protectionIP40, with plug socket
Nominal size2.3 mm
Exhaust air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting, non-detenting, concealed
Type of pilotingPiloted
Pilot air supplyExternal
OverlapPositive overlap
Pilot pressure3 to 8 bar
Vacuum suitabilityYes
Switching time off24 ms
Switching time on8 ms
Duty cycle100 %
Maximum positive test pulse at 0 signal700 µs
Maximum negative test pulse at 1 signal900 µs
Coil characteristics24 V DC: 1.0 W
Permissible voltage fluctuation±10 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Ambient and media temperature restriction-5 to 50 °C, without holding current reduction
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - moderate corrosion stress
PWIS conformity (LABS)VDMA24364-B1/B2-L
Cleanroom suitability, measured to ISO 14644-14Class 5 to ISO 14644-1
Medium temperature-5 to 60 °C
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5 to 60 °C
Electrical connection2-pin, plug pattern H, horizontal connection, cable with open end
Type of mountingOn manifold rail
Note on materialsRoHS compliant
Seal materialHNBR, NBR
Housing materialWrought aluminium alloy
Weight0.055 kg
ManufacturerFesto
Hersteller-NrVUVG-B10-M52-MZT-F-1H2L-W1
EAN4052568383718
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
Nominal size DN [mm]2,3
MediumCompressed air
Function5/2 monostable
Flow rate [l/min]230
Actuation typeElectrical
Medientemperatur [°C]-5 bis 60
Betriebsdruck max [bar]8
Pneumatic connectionFlange
Protection ratingIP40
Temperaturbereich-5-60 °C
Temperature (max.)60
