Solenoid valve 5/3-way closed, valve size 10 mm, sub-base version VUVG-B10-P53C-ZT-F-1H2RL - Festo 572195

Festo ✓ Original product Brand new

The solenoid valve VUVG-B10-P53C-ZT-F-1H2RL with 5/3-way closed function and 10 mm valve size controls double-acting cylinders with stops in intermediate positions. Operating pressure -0.9 to 10 bar, sub-base version for mounting on a manifold rail. External pilot air at 3 to 8 bar.

Net
€100.81
excl. VAT
Item FES-572195
Manufacturer no. VUVG-B10-P53C-ZT-F-1H2RL
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

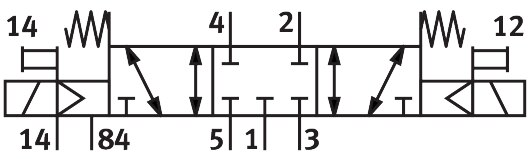

Valve function 5/3-way closed at 10 mm valve size: the Festo solenoid valve VUVG-B10-P53C-ZT-F-1H2RL controls double-acting cylinders with stops in intermediate positions. The closed mid-position shuts off the cylinder chambers and stops the actuator when neither solenoid is energised.

Benefits

  • Valve size 10 mm for compact valve arrangements
  • Operating pressure -0.9 to 10 bar, suitable for vacuum
  • Sub-base version for mounting on a manifold rail
  • External pilot air at 3 to 8 bar

Applications

The operating medium is compressed air to ISO 8573-1:2010 [7:4:4]. Festo 572195 is mounted on manifold rail.

Technical data

FeatureValue
TypeVUVG-B10-P53C-ZT-F-1H2RL
Festo part number572195
SeriesVUVG
Valve function5/3-way closed
Type of actuationElectrical
Valve size10 mm
Operating pressure-0.9 to 10 bar
DesignPiston spool
Exhaust air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Type of pilotingPiloted
Pilot air supplyExternal
Pilot pressure3 to 8 bar
Duty cycle100 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Type of mountingOn manifold rail
Seal materialHNBR, NBR
Housing materialWrought aluminium alloy
Weight0.06 kg
ManufacturerFesto
Hersteller-NrVUVG-B10-P53C-ZT-F-1H2RL
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
MediumCompressed air
Function5/3 closed
Actuation typeElectrical
Betriebsdruck max [bar]10
Pneumatic connectionFlange
