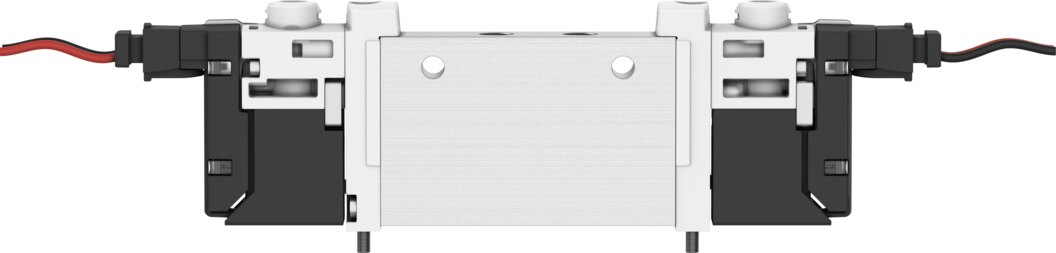

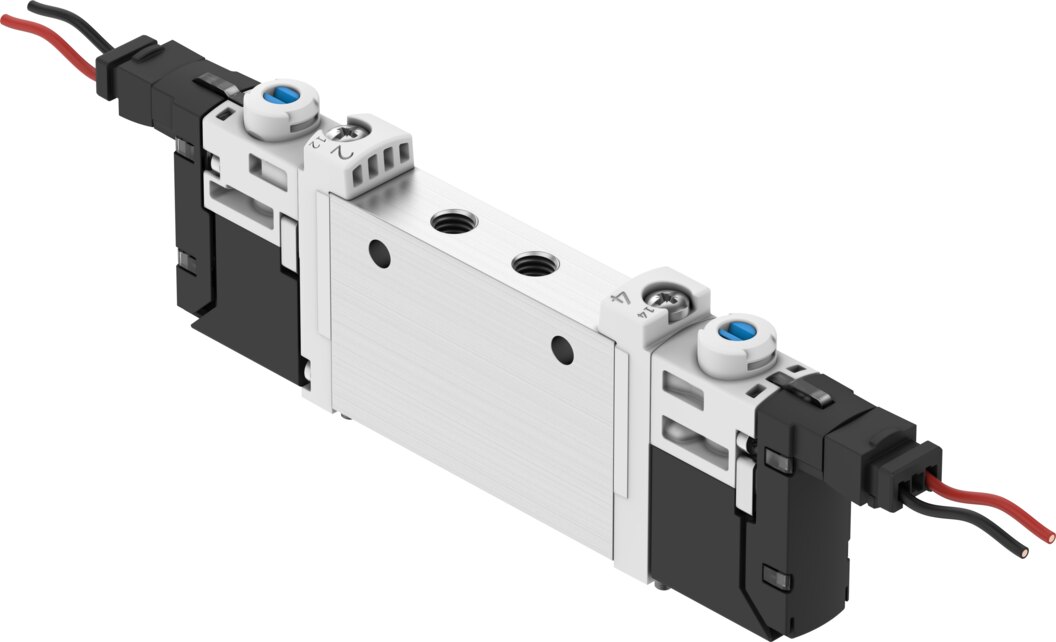

Solenoid valve 2x 3/2 normally closed, monostable, 10 mm VUVG-L10-T32C-AT-Q4-1H3L - Festo 609409

Festo ✓ Original product Brand new

Festo solenoid valve VUVG-L10-T32C-AT-Q4-1H3L, function 2x 3/2 normally closed, monostable in valve size 10 mm. 24 V DC coil, reset by pneumatic spring, internal pilot air.

Net
€96.16
excl. VAT
Item FES-609409
Manufacturer no. VUVG-L10-T32C-AT-Q4-1H3L
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VUVG-L10-T32C-AT-Q4-1H3L contains two separately actuated 3/2-way functions, both closed in the normal position. VUVG series, valve size 10 mm.

Benefits

  • Reset: Pneumatic spring, internal pilot air.
  • Manual override: Detenting, non-detenting.
  • Voltage: 24 V DC.

Application

Use: single-acting cylinders, separate pilot circuits. Pilot air is taken internally from the supply port. Mounting on manifold rail, with through-hole, weight 0.07 kg. The data is derived from order type VUVG-L10-T32C-AT-Q4-1H3L, see the Festo datasheet for further values.

Technical data

TypeVUVG-L10-T32C-AT-Q4-1H3L
Festo part number609409
Valve function2x3/2-way, closed, monostable
Type of actuationElectrical
Valve size10 mm
Operating voltage24 V DC
Type of resetPneumatic spring
Manual overrideDetenting, non-detenting
Pilot air supplyInternal
Type of mountingOn manifold rail, with through-hole
Weight0.07 kg
ManufacturerFesto
Hersteller-NrVUVG-L10-T32C-AT-Q4-1H3L
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Function2x3/2 closed monostable
Actuation typeElectrical
SeriesVUVG
