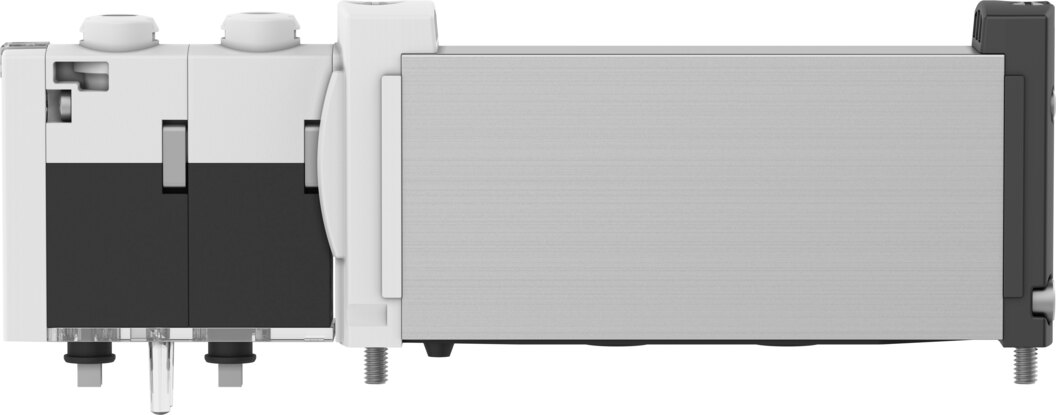

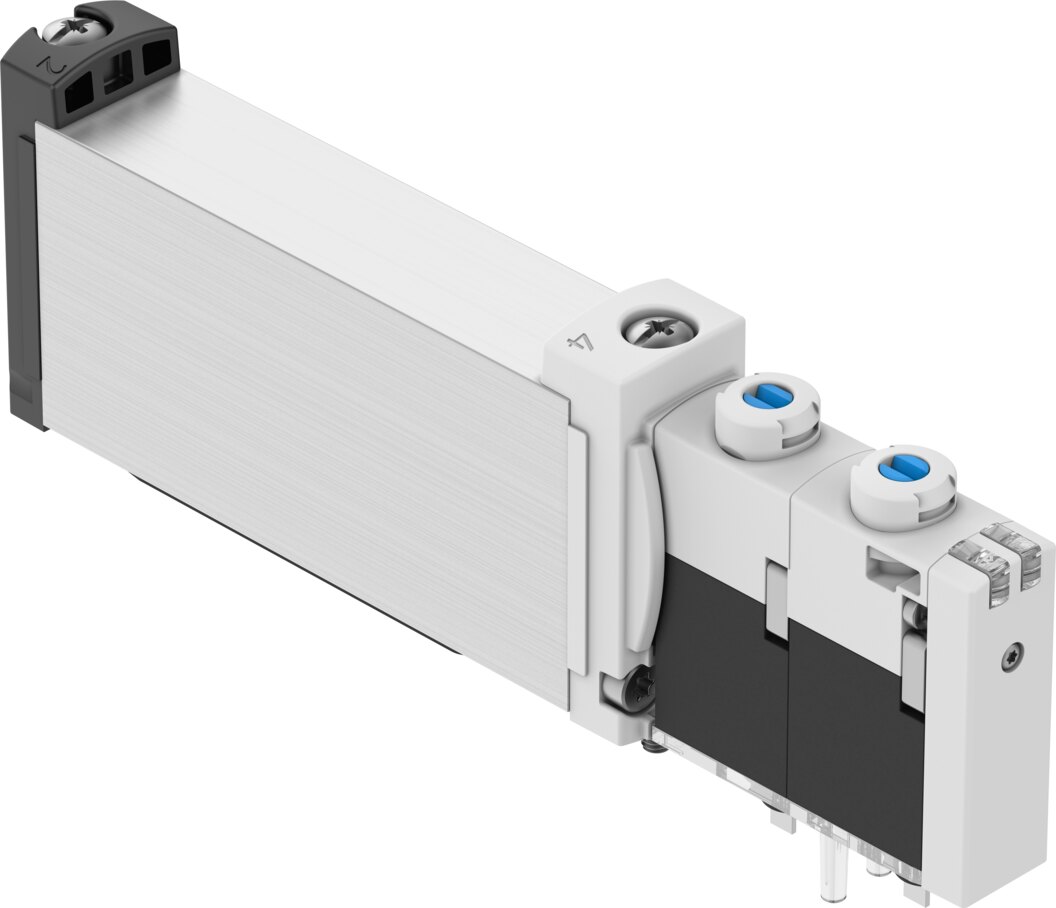

Solenoid valve 5/3 pressurised centre, 14 mm, for manifold rail VUVG-B14-P53U-ZT-F-1T1L-EX2C - Festo 8041969
5/3 pressurised centre solenoid valve from the VUVG series for 470 l/min at -0.9 to 10 bar operating pressure. Flange connection for manifold rail, valve size 14 mm, 24 V DC coil with 1.0 W.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

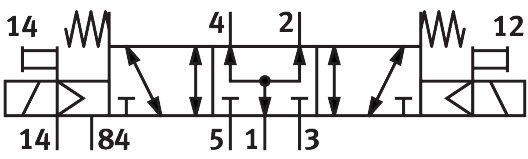

The solenoid valve VUVG-B14-P53U-ZT-F-1T1L-EX2C is a 5/3-way valve that pressurises both working ports in the mid-position. At 14 mm valve size it delivers 470 l/min.
Benefits
- Flow and switching time: 470 l/min at valve size 14 mm, switches on in 15 ms and off in 42 ms.
- Coil: 22 V DC: 1.0 W, duty cycle 100 %.
- Protection: Degree of protection IP65, IP67, ambient -5 to 60 °C.
- Corrosion protection: CRC 2 - Moderate corrosion stress.
- Pressure range: -0.9 to 10 bar, suitable for vacuum.
Application
In the mid-position both cylinder sides are pressurised. External pilot air, pilot pressure 3 to 8 bar. Manual override detenting, non-detenting. Installation on manifold rail, product weight 95 g. Operating medium compressed air to ISO 8573-1:2010 [7:4:4]. Media temperature -5 to 60 °C, ambient -5 to 60 °C. Once lubricated, lubrication must continue.
Technical data
| Type | VUVG-B14-P53U-ZT-F-1T1L-EX2C |
|---|---|
| Festo part number | 8041969 |
| Valve function | 5/3-way, mid-position pressurised |
| Type of actuation | Electrical |
| Valve size | 14 mm |
| Standard nominal flow rate (to DIN 1343) | 470 l/min |
| Pneumatic working port | Flange |
| Operating voltage | 24 V DC |
| Operating pressure | -0.9 to 10 bar |
| Design | Piston spool |
| Approval | c UL us - Recognized (OL) |
| Degree of protection | IP65, IP67 |
| Exhaust-air function | Can be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Detenting, non-detenting |
| Type of piloting | Piloted |
| Pilot air supply | External |
| Flow direction | Reversible |
| Overlap | Positive overlap |
| Signal status display | LED |
| Pilot pressure | 3 to 8 bar |
| Maximum switching frequency | 3 Hz |
| Switching time off | 42 ms |
| Switching time on | 15 ms |
| Changeover time | 25 ms |
| Duty cycle | 100 % |
| Maximum positive test pulse with 0 signal | 1600 µs |
| Maximum negative test pulse with 1 signal | 3000 µs |
| Characteristic coil data | 22 V DC: 1.0 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (then required for further operation) |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Media temperature | -5 to 60 °C |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5 to 60 °C |
| Product weight | 95 g |
| Electrical connection | Via sub-base |
| Type of mounting | On manifold rail |
| Note on materials | RoHS compliant |
| Material seals | HNBR, NBR |
| Material housing | Wrought aluminium alloy |
| Weight | 0.095 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VUVG-B14-P53U-ZT-F-1T1L-EX2C |
| EAN | 4052568434908 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Seal material | HNBR, NBR |
| Housing material | Aluminium |
| Medium | Compressed air |
| Function | 5/3 pressurised |
| Flow rate [l/min] | 470 |
| Actuation type | Electrical |
| Medientemperatur [°C] | -5 bis 60 |
| Series | VUVG |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | Flange |
| Temperaturbereich | -5-60 °C |
| Temperature (max.) | 60 |
