Solenoid valve 5/3-way closed, valve size 10 mm, sub-base version VUVG-B10-P53C-ZT-F-1H2L - Festo 579155
The solenoid valve VUVG-B10-P53C-ZT-F-1H2L with 5/3-way closed function and 10 mm valve size controls double-acting cylinders with stops in intermediate positions. Operating pressure -0.9 to 10 bar, sub-base version for mounting on a manifold rail. External pilot air at 3 to 8 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

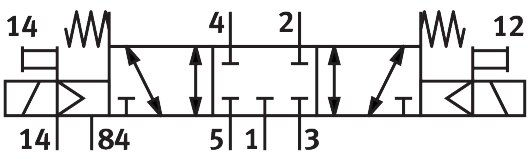

Valve function 5/3-way closed at 10 mm valve size: the Festo solenoid valve VUVG-B10-P53C-ZT-F-1H2L controls double-acting cylinders with stops in intermediate positions. The closed mid-position shuts off the cylinder chambers and stops the actuator when neither solenoid is energised.
Benefits
- Valve size 10 mm for compact valve arrangements
- Operating pressure -0.9 to 10 bar, suitable for vacuum
- Sub-base version for mounting on a manifold rail
- External pilot air at 3 to 8 bar
Applications
The valve runs on compressed air to ISO 8573-1:2010 [7:4:4]. Festo 579155 is mounted on manifold rail.
Technical data
| Feature | Value |
|---|---|
| Type | VUVG-B10-P53C-ZT-F-1H2L |
| Festo part number | 579155 |
| Series | VUVG |
| Valve function | 5/3-way closed |
| Type of actuation | Electrical |
| Valve size | 10 mm |
| Operating pressure | -0.9 to 10 bar |
| Design | Piston spool |
| Exhaust air function | Can be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of piloting | Piloted |
| Pilot air supply | External |
| Pilot pressure | 3 to 8 bar |
| Duty cycle | 100 % |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Type of mounting | On manifold rail |
| Seal material | HNBR, NBR |
| Housing material | Wrought aluminium alloy |
| Weight | 0.06 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VUVG-B10-P53C-ZT-F-1H2L |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Medium | Compressed air |
| Function | 5/3 closed |
| Actuation type | Electrical |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | Flange |
