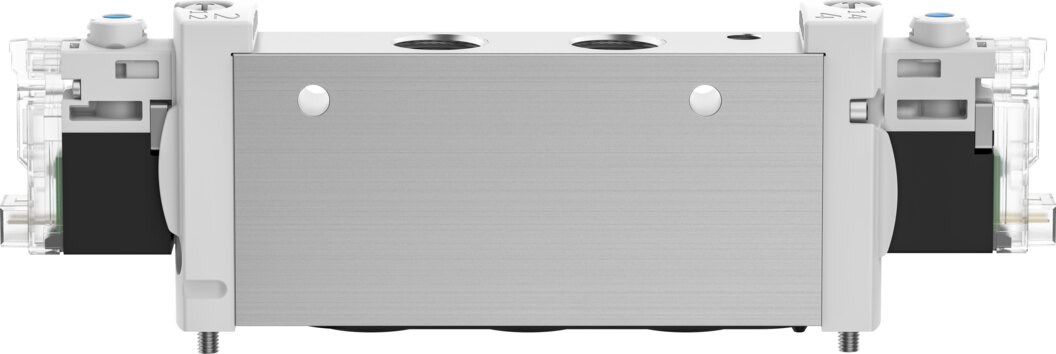

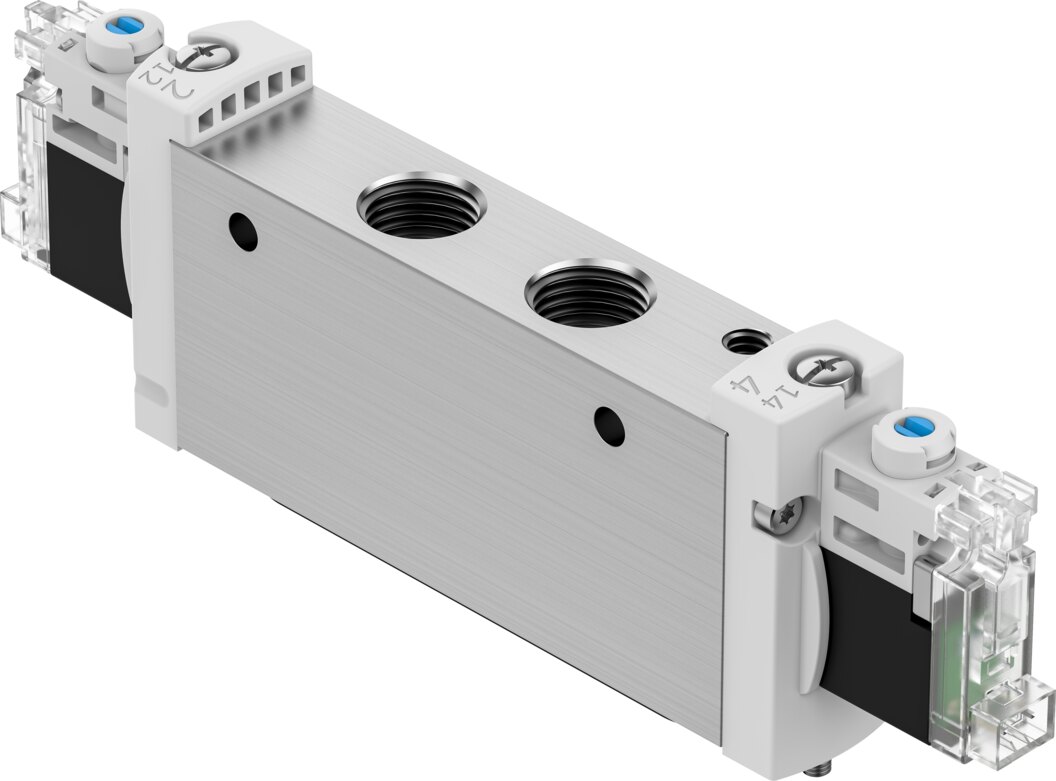

Solenoid valve 2x 3/2 normally closed, monostable, 18 mm, G1/4 VUVG-L18-T32C-MZT-G14-1H2L-F1A - Festo 8172841
Festo solenoid valve VUVG-L18-T32C-MZT-G14-1H2L-F1A, function 2x 3/2 normally closed, monostable: 870 l/min standard nominal flow, operating pressure -0.9 to 10 bar. Port G1/4, valve size 18 mm, 24 V DC coil with 0.8 W.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

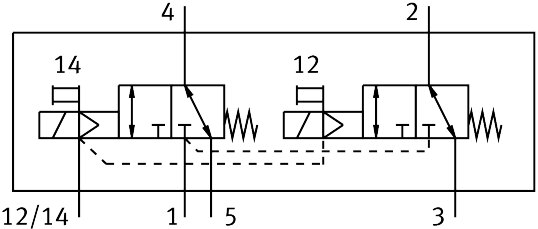

The solenoid valve VUVG-L18-T32C-MZT-G14-1H2L-F1A contains two separately actuated 3/2-way functions, both closed in the normal position. In valve size 18 mm it reaches 870 l/min standard nominal flow.
Benefits
- Flow and switching time: 870 l/min at valve size 18 mm, switches on in 20 ms and off in 29 ms.
- Cleanroom: Class 5 to ISO 14644-1.
- Pressure range: -0.9 to 10 bar, suitable for vacuum.
- Protection: Degree of protection IP40, ambient -5 to 50 °C.
- Coil: 24 V DC: 0.8 W, duty cycle 100 %.
Application
Use: single-acting cylinders, separate pilot circuits. External pilot air, pilot pressure 3 to 8 bar. Manual override detenting, non-detenting, concealed. Mounting on manifold rail, with through-hole, product weight 164 g. Medium: compressed air to ISO 8573-1:2010 [7:4:4]. Media temperature -5 to 50 °C, ambient -5 to 50 °C. Lubricated operation possible, then always required. Suitable for battery production (F1a, low Cu/Zn/Ni).
Technical data
| Type | VUVG-L18-T32C-MZT-G14-1H2L-F1A |
|---|---|
| Festo part number | 8172841 |
| Valve function | 2x3/2-way, closed, monostable |
| Type of actuation | Electrical |
| Valve size | 18 mm |
| Standard nominal flow rate (to DIN 1343) | 870 l/min |
| Pneumatic working port | G1/4 |
| Operating voltage | 24 V DC |
| Operating pressure | -0.9 to 10 bar |
| Design | Piston spool |
| Type of reset | Mechanical spring |
| Approval | RCM Mark, c UL us - Recognized (OL) |
| Certificate issuing authority | UL MH19482 |
| Degree of protection | IP40 |
| Nominal size | 5.7 mm |
| Exhaust-air function | Can be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Detenting, non-detenting, concealed |
| Type of piloting | Piloted |
| Pilot air supply | External |
| Overlap | Positive overlap |
| Pilot pressure | 3 to 8 bar |
| Suitability for vacuum | Yes |
| Switching time off | 29 ms |
| Switching time on | 20 ms |
| Duty cycle | 100 % |
| Maximum positive test pulse with 0 signal | 700 µs |
| Maximum negative test pulse with 1 signal | 900 µs |
| Characteristic coil data | 24 V DC: 0.8 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (then required for further operation) |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Restrictions for ambient and media temperature | -5 - 50 °C, without holding current reduction |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured to ISO 14644-14 | Class 5 to ISO 14644-1 |
| Storage temperature | -20 to 60 °C |
| Media temperature | -5 to 50 °C |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5 to 50 °C |
| Product weight | 164 g |
| Electrical connection | Plug |
| Type of mounting | On manifold rail, with through-hole |
| Pilot air port 12/14 | M5 |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/4 |
| Pneumatic connection, port 3 | G1/4 |
| Pneumatic connection, port 4 | G1/4 |
| Pneumatic connection, port 5 | G1/4 |
| Note on materials | RoHS compliant |
| Material seals | HNBR, NBR |
| Material housing | Wrought aluminium alloy |
| Material screws | Coated steel |
| Weight | 0.165 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VUVG-L18-T32C-MZT-G14-1H2L-F1A |
| EAN | 4052568617936 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | G 1/4 |
| Nominal size DN [mm] | 5,7 |
| Seal material | HNBR, NBR |
| Housing material | Aluminium |
| Medium | Compressed air |
| Function | 2x3/2 closed monostable |
| Flow rate [l/min] | 870 |
| Actuation type | Electrical |
| Medientemperatur [°C] | -5 bis 50 |
| Series | VUVG |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | G1/4 |
| Protection rating | IP40 |
| Temperature (max.) | 50 |
