Solenoid valve 5/2-way monostable, valve size 10 mm, sub-base version VUVG-B10-M52-RZT-F-1H2RL - Festo 572192

Festo ✓ Original product Brand new

The solenoid valve VUVG-B10-M52-RZT-F-1H2RL with 5/2-way monostable function and 10 mm valve size controls double-acting cylinders and actuators. Operating pressure -0.9 to 10 bar, sub-base version for mounting on a manifold rail. Operating medium compressed air to ISO 8573-1:2010 [7:4:4].

Net
€61.56
excl. VAT
Item FES-572192
Manufacturer no. VUVG-B10-M52-RZT-F-1H2RL
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

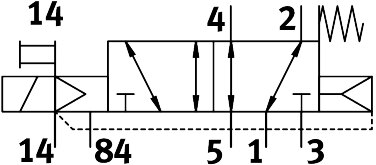

Valve function 5/2-way monostable at 10 mm valve size: the Festo solenoid valve VUVG-B10-M52-RZT-F-1H2RL controls double-acting cylinders and actuators. Without a signal the 5/2-way valve returns to its normal position, so a double-acting cylinder moves to a defined position.

Benefits

  • Valve size 10 mm for compact valve arrangements
  • Operating pressure -0.9 to 10 bar, suitable for vacuum
  • Sub-base version for mounting on a manifold rail
  • External pilot air

Applications

The operating medium is compressed air to ISO 8573-1:2010 [7:4:4]. Festo 572192 is mounted on manifold rail.

Technical data

FeatureValue
TypeVUVG-B10-M52-RZT-F-1H2RL
Festo part number572192
SeriesVUVG
Valve function5/2-way monostable
Type of actuationElectrical
Valve size10 mm
Operating pressure-0.9 to 10 bar
DesignPiston spool
Type of resetMechanical spring, pneumatic spring
Exhaust air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Type of pilotingPiloted
Pilot air supplyExternal
Duty cycle100 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Type of mountingOn manifold rail
Seal materialHNBR, NBR
Housing materialWrought aluminium alloy
Weight0.055 kg
ManufacturerFesto
Hersteller-NrVUVG-B10-M52-RZT-F-1H2RL
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
MediumCompressed air
Function5/2 monostable
Actuation typeElectrical
Betriebsdruck max [bar]10
Pneumatic connectionFlange
