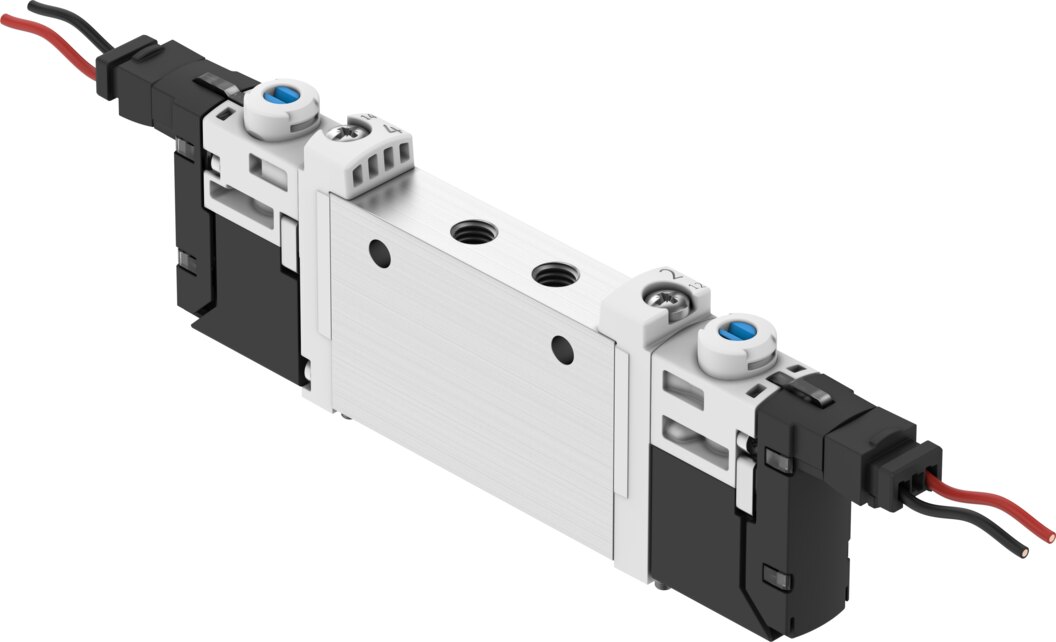

Solenoid valve 5/2-way bistable, valve size 10 mm, M5 VUVG-L10-B52-T-M5-1H2L - Festo 579164
220 l/min standard nominal flow from 10 mm valve size: the solenoid valve VUVG-L10-B52-T-M5-1H2L controls double-acting cylinders with pulse control. Valve function 5/2-way bistable, operating pressure 1.5 to 8 bar, working ports M5. Housing in wrought aluminium alloy, seals in HNBR, NBR.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Valve function 5/2-way bistable at 10 mm valve size: the Festo solenoid valve VUVG-L10-B52-T-M5-1H2L controls double-acting cylinders with pulse control. With two solenoids it works as a pulse valve: a short pulse is enough and the position is then retained.
Benefits
- Standard nominal flow rate 220 l/min at 10 mm valve size, nominal size 3.2 mm
- Operating pressure 1.5 to 8 bar
- Working ports M5
- Internal pilot air
Applications
The operating medium is compressed air to ISO 8573-1:2010 [7:4:4]. Mounting of the VUVG-L10-B52-T-M5-1H2L: on manifold rail, with through-hole.
Technical data
| Feature | Value |
|---|---|
| Type | VUVG-L10-B52-T-M5-1H2L |
| Festo part number | 579164 |
| Series | VUVG |
| Valve function | 5/2-way bistable |
| Type of actuation | Electrical |
| Valve size | 10 mm |
| Standard nominal flow rate | 220 l/min |
| Operating pressure | 1.5 to 8 bar |
| Design | Piston spool |
| Nominal size | 3.2 mm |
| Exhaust air function | Can be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of piloting | Piloted |
| Pilot air supply | Internal |
| Pilot pressure | 1.5 to 8 bar |
| Duty cycle | 100 % |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Type of mounting | On manifold rail, with through-hole |
| Pneumatic port 1 | M5 |
| Pneumatic port 2 | M5 |
| Pneumatic port 4 | M5 |
| Pneumatic port 5 | M5 |
| Seal material | HNBR, NBR |
| Housing material | Wrought aluminium alloy |
| Weight | 0.065 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VUVG-L10-B52-T-M5-1H2L |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | M5 |
| Nominal size DN [mm] | 3,2 |
| Medium | Compressed air |
| Function | 5/2 bistable |
| Flow rate [l/min] | 220 |
| Actuation type | Electrical |
| Betriebsdruck max [bar] | 8 |
| Pneumatic connection | M5 |
