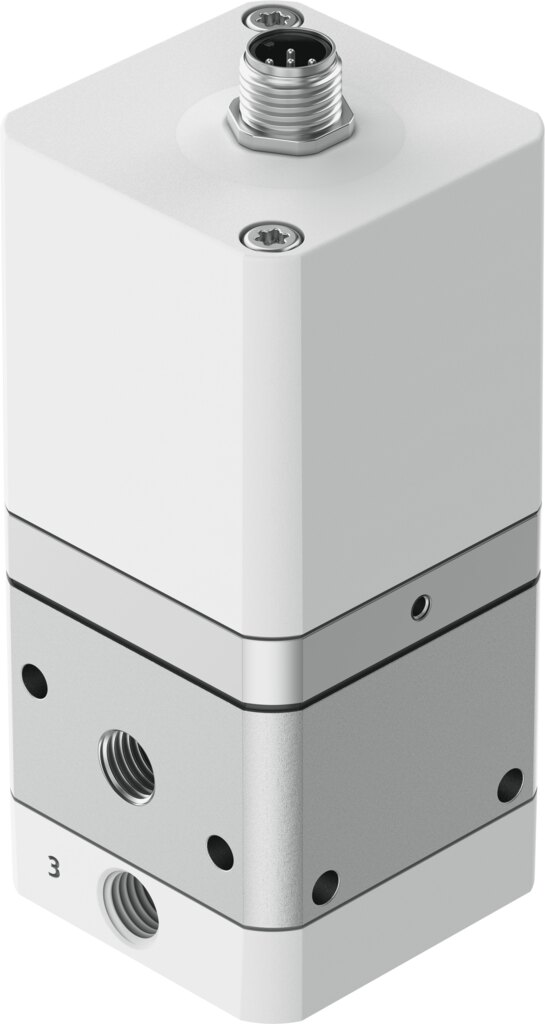

Proportional pressure regulator 0.02 to 2 bar G1/8 VPPE-3-1-1/8-2-MR-E1-F1A - Festo 8168527
Electrically adjustable pressure from 0.02 to 2 bar: proportional pressure regulator VPPE-3-1-1/8-2-MR-E1-F1A with digital setpoint. Standard nominal flow rate 310 l/min, port G1/8, max. pressure hysteresis 0.02 bar and degree of protection IP65. Genuine Festo part 8168527.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo VPPE-3-1-1/8-2-MR-E1-F1A regulates the output pressure in proportion to the digital setpoint, pressure regulation range 0.02 to 2 bar. With a standard nominal flow rate of 310 l/min, it is connected via G1/8. Design: piloted diaphragm regulator.
Benefits at a glance
- Fine pressure control: max. pressure hysteresis 0.02 bar
- Repeatable results: linearity 1 %FS, repeatability 1 %FS
- Air capacity: standard nominal flow rate 310 l/min
- Defined safety position: if the power supply cable is interrupted, output pressure is maintained unregulated
- For harsh environments: degree of protection IP65, corrosion resistance class CRC 2

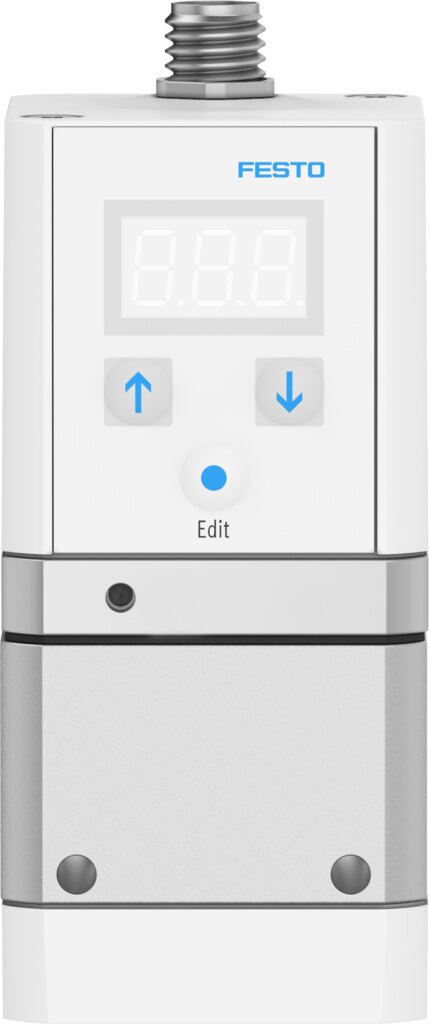

- Display on the device: LED indicator, 3 digits
Application
The operating medium is compressed air to ISO 8573-1:2010 [7:4:4] and inert gas. Lubricated operation is not possible. Mounting position of the VPPE-3-1-1/8-2-MR-E1-F1A: any, preferably upright, mounting: with through-hole. Permissible ambient temperature 0 to 60 °C. The VPPE-3-1-1/8-2-MR-E1-F1A is suitable for Li-ion battery production (reduced Cu/Zn/Ni content, F1a). The VPPE-3-1-1/8-2-MR-E1-F1A is connected electrically via 5-pin, M12, plug.
Technical data
| Type | VPPE-3-1-1/8-2-MR-E1-F1A |
|---|---|
| Festo part number | 8168527 |
| Nominal size, supply | 5 mm |
| Nominal size, exhaust | 2.5 mm |
| Type of actuation | Electrical |
| Sealing principle | Soft |
| Mounting position | Any, Preferably upright |
| Design | Piloted diaphragm regulator |
| Short circuit current rating | For all electrical connections |
| Setpoint value input | Digital |
| Safety instructions | Safety position VPPE: if the power supply cable is interrupted, output pressure is maintained unregulated. |
| Reverse polarity protection | For all electrical connections |
| Type of reset | Mechanical spring |
| Type of piloting | Piloted |
| Valve function | 3-way proportional pressure regulator |
| Display type | LED indicator, 3 digits |
| Pressure regulation range | 0.02 to 2 bar |
| Value range MPa | 0 to 200 bit |
| Value range bar | 0 to 2000 bit |
| Value range psi | 0 to 290 bit |
| Inlet pressure 1 | 3 to 4 bar |
| Max. pressure hysteresis | 0.02 bar |
| Standard nominal flow rate (standardised to DIN 1343) | 310 l/min |
| Operational voltage range DC | 21.6 to 26.4 V |
| Max. current consumption | 160 mA |
| Duty cycle | 100% |
| Max. electrical power consumption | 4.2 W |
| Protocol | Modbus RTU |
| Residual ripple | 10% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas |
| Note on operating and pilot medium | Lubricated operation not possible |
| Approval | RCM, c UL us - Listed (Oil) |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Certificate issuing authority | UL E322346 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Media temperature | 10 to 50 °C |
| Degree of protection | IP65 |
| Ambient temperature | 0 to 60 °C |
| Product weight | 390 g |
| Linearity | 1 %FS |
| Hysteresis | 1 %FS |
| Reproducibility | 1 %FS |
| Total accuracy | 1.5 %FS |
| Temperature coefficient | 0.04 %/K |
| Electrical connection | 5-pin, M12, Plug |
| Type of serial interface | RS 485-A |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | G1/8 |
| Pneumatic connection, port 2 | G1/8 |
| Pneumatic connection, port 3 | G1/8 |
| Note on materials | RoHS compliant |
| Material housing | Aluminium, powder-coated |
| Weight | 0.42 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VPPE-3-1-1/8-2-MR-E1-F1A |
| EAN | 4052568635473 |
| Zolltarifnummer | 84811099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/8 |
| Control range max. [bar] | 2 |
| Medium | Compressed air, neutral gases |
| Function | 3-way proportional pressure regulating valve |
| Flow rate [l/min] | 310 |
| Actuation type | Electrical |
| Druckregelbereich [bar] | 0,02 bis 2 |
| Medientemperatur [°C] | 10 bis 50 |
| Pneumatic connection | G1/8 |
| Protection rating | IP65 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
