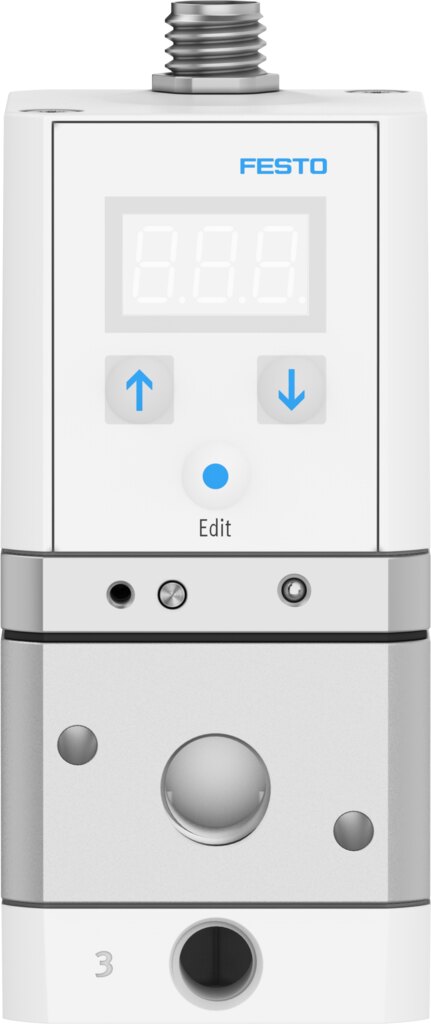

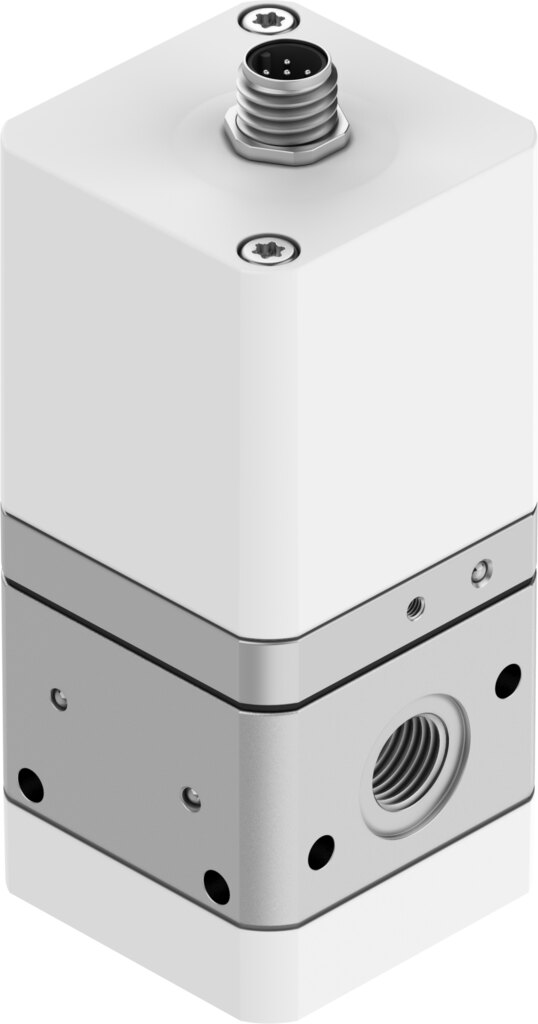

Proportional-pressure regulator VPPE-3-1-1/4-10-005-E1T-F1A - Festo 8202570
Net
excl. VAT
€489.20
Item
FES-8202570
Manufacturer no.
VPPE-3-1-1/4-10-005-E1T-F1A
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Nominal size, supply | 5 mm |
|---|---|
| Nominal size, exhaust | 2.5 mm |
| Type of actuation | Electrical |
| Sealing principle | Soft |
| Mounting position | Any, Preferably upright |
| Design | Piloted diaphragm regulator |
| Short circuit current rating | For all electrical connections |
| Safety instructions | Safety position VPPE: if the power supply cable is interrupted, output pressure is maintained unregulated. |
| Reverse polarity protection | For all electrical connections |
| Type of reset | Mechanical spring |
| Type of piloting | Piloted |
| Valve function | 3-way proportional pressure regulator |
| Display type | LED indicator, 3 digits |
| Pressure regulation range | 0.1 ... 10 bar |
| Inlet pressure 1 | 6 ... 11 bar |
| Max. pressure hysteresis | 0.05 bar |
| Standard nominal flow rate (standardised to DIN 1343) | 2300 l/min |
| Operational voltage range DC | 21.6 ... 26.4 V |
| Max. current consumption | 160 mA |
| Duty cycle | 100% |
| Max. electrical power consumption | 4.2 W |
| Residual ripple | 10% |
| Switching output | PNP |
| Signal range analogue output | 1 - 5 V |
| Signal range analogue input | 0 - 5 V |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas |
| Note on operating and pilot medium | Lubricated operation not possible |
| Approval | RCM, c UL us - Listed (Oil) |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Certificate issuing authority | UL E322346 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Media temperature | 10 ... 50 °C |
| Degree of protection | IP65 |
| Ambient temperature | 0 ... 60 °C |
| Product weight | 390 g |
| Linearity | 1 %FS |
| Hysteresis | 1 %FS |
| Reproducibility | 0.5 %FS |
| Total accuracy | 1.25 %FS |
| Temperature cooefficient | 0.04 %/K |
| Electrical connection | 5-pin, M12, Plug |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/4 |
| Pneumatic connection, port 3 | G1/8 |
| Note on materials | RoHS compliant |
| Material housing | Aluminium, powder-coated |
| Manufacturer | Festo |
| Hersteller-Nr | VPPE-3-1-1/4-10-005-E1T-F1A |
| EAN | 4052568779566 |
| Zolltarifnummer | 84811099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
Downloads
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
Customers Who Bought This Item Also Bought
Festo

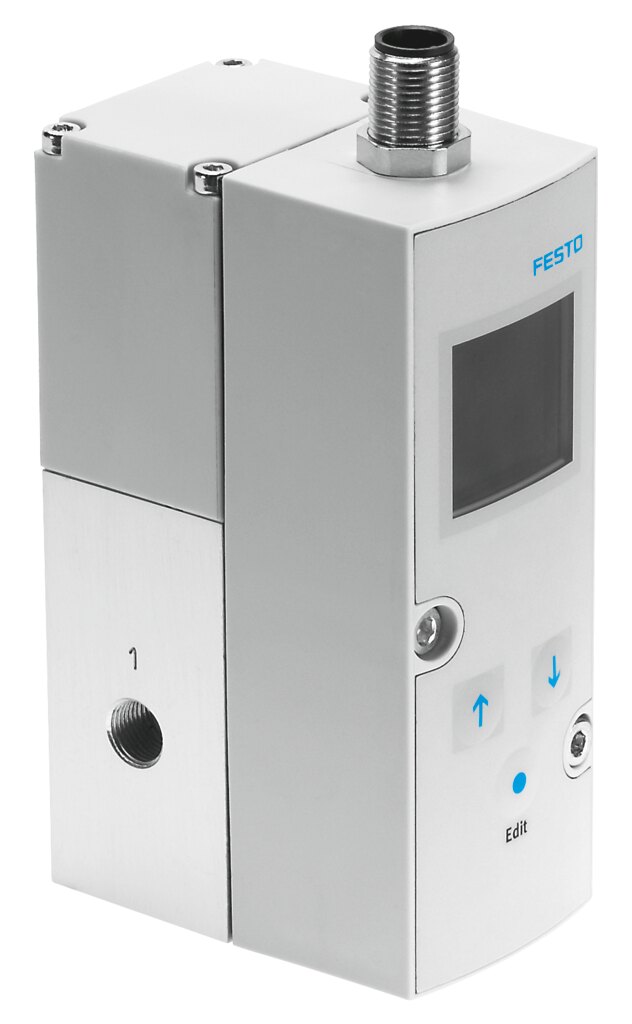

Proportional-pressure regulator VPPM-6F-L-1-F-0L6H-V1N-C1 - Festo 558347
Item FES-558347
€563.21
Festo

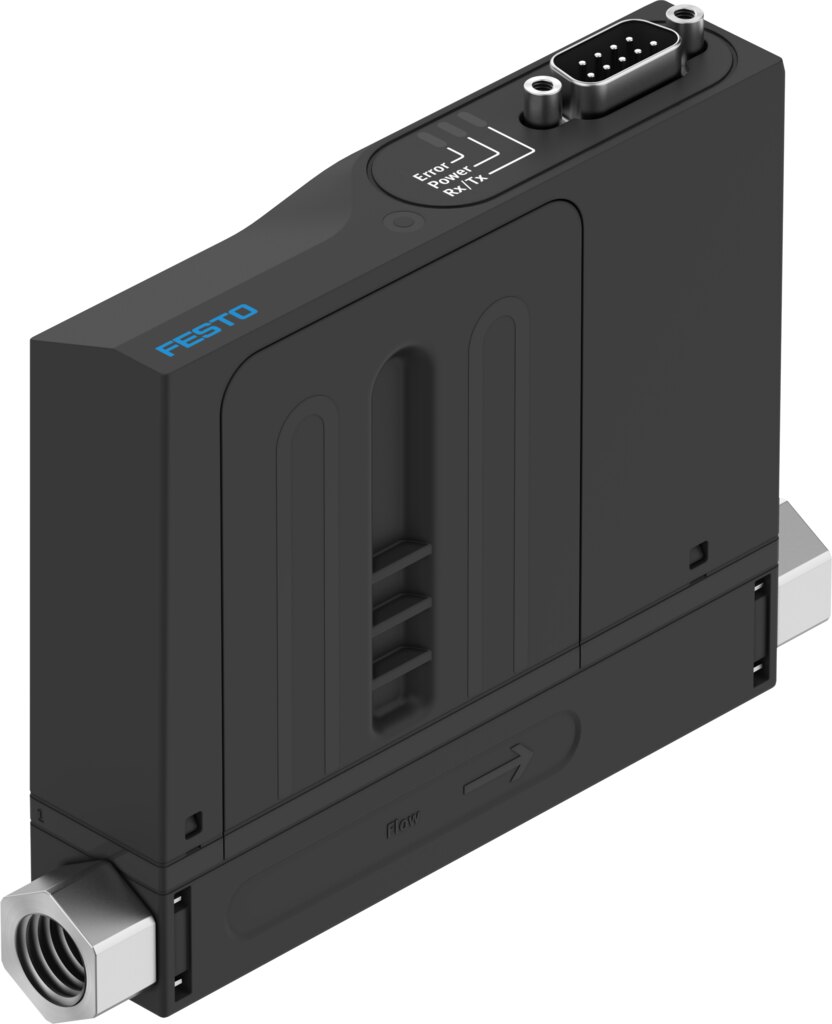

Mass flow controller (MFC) VEFC-L-6-200-D31-R14-R14-MRM1 - Festo 8204588
Item FES-8204588
€869.40
Festo

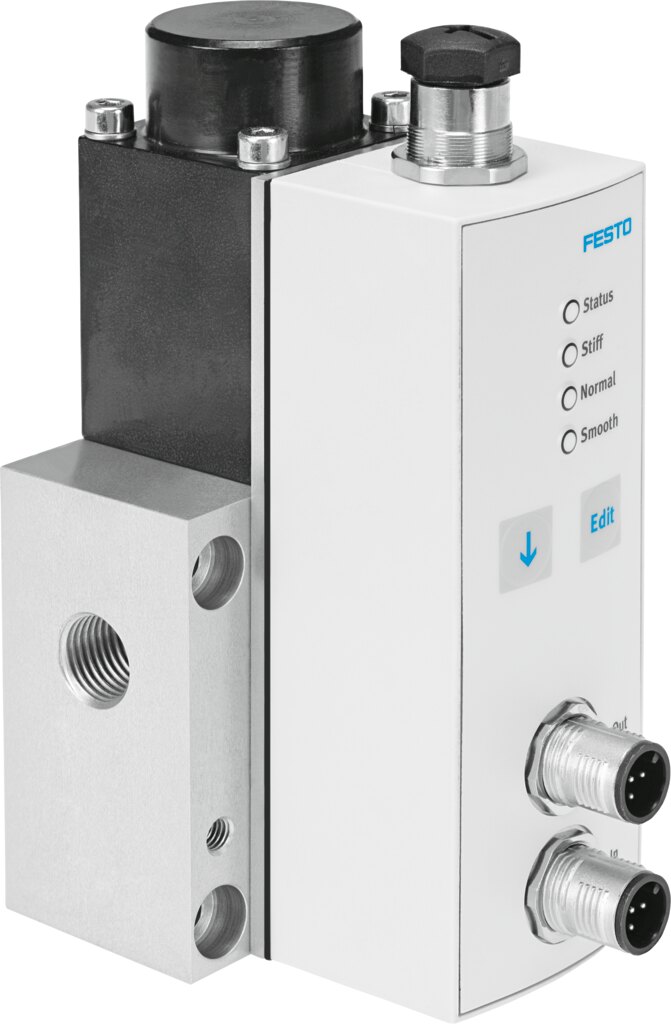

Proportional-pressure regulator VPPL-3Q-3-Z-0L20H-V1-V-S1-4 - Festo 1635988
Item FES-1635988
€2,305.28
Festo

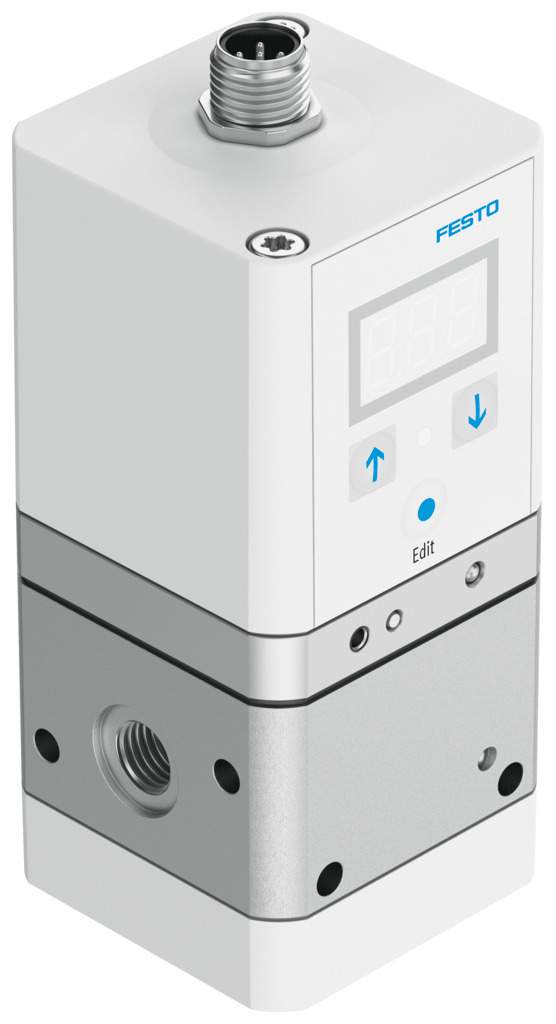

Proportional pressure regulator VPPE-3-1-1/8-10-420-E1-F1A - Festo 8156424
