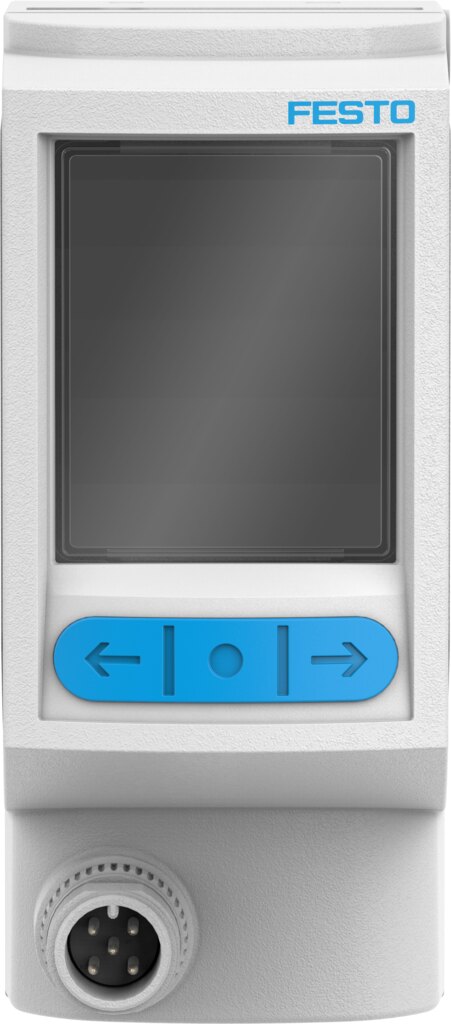

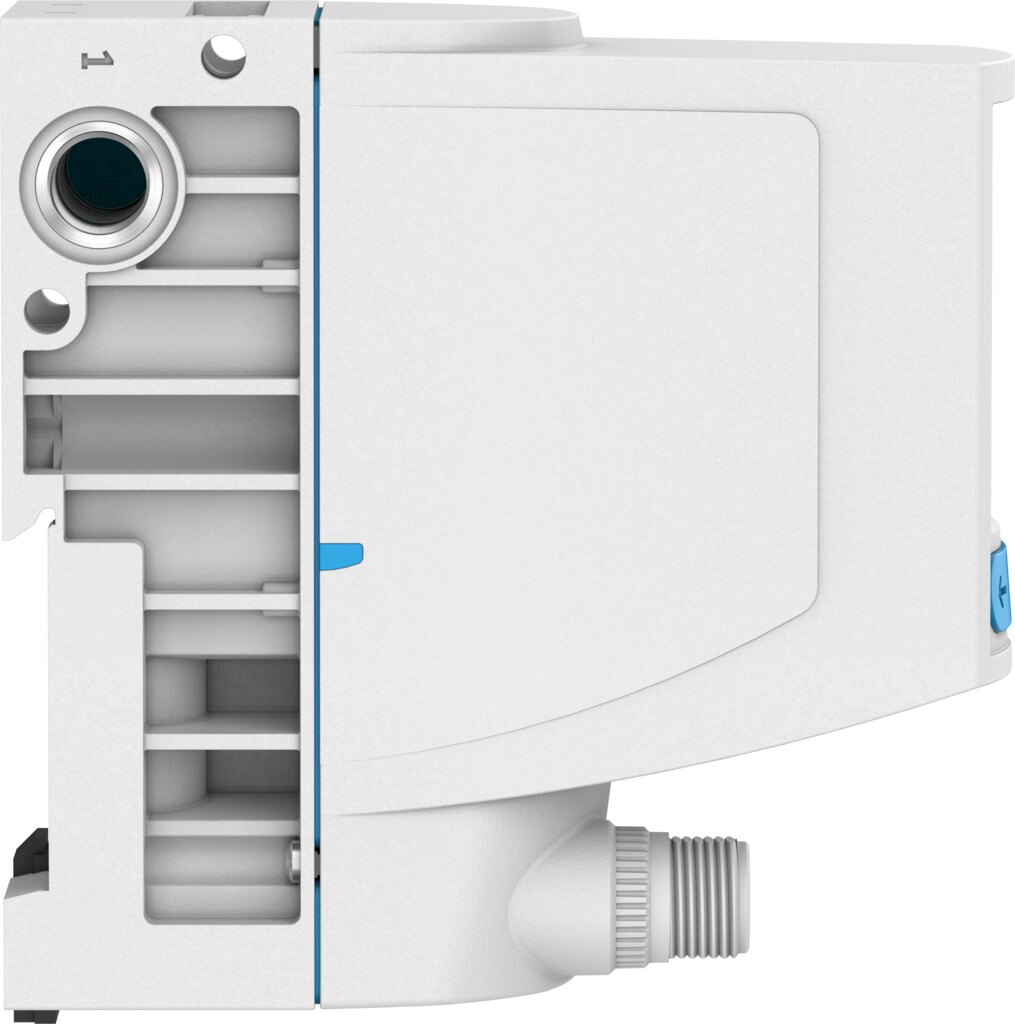

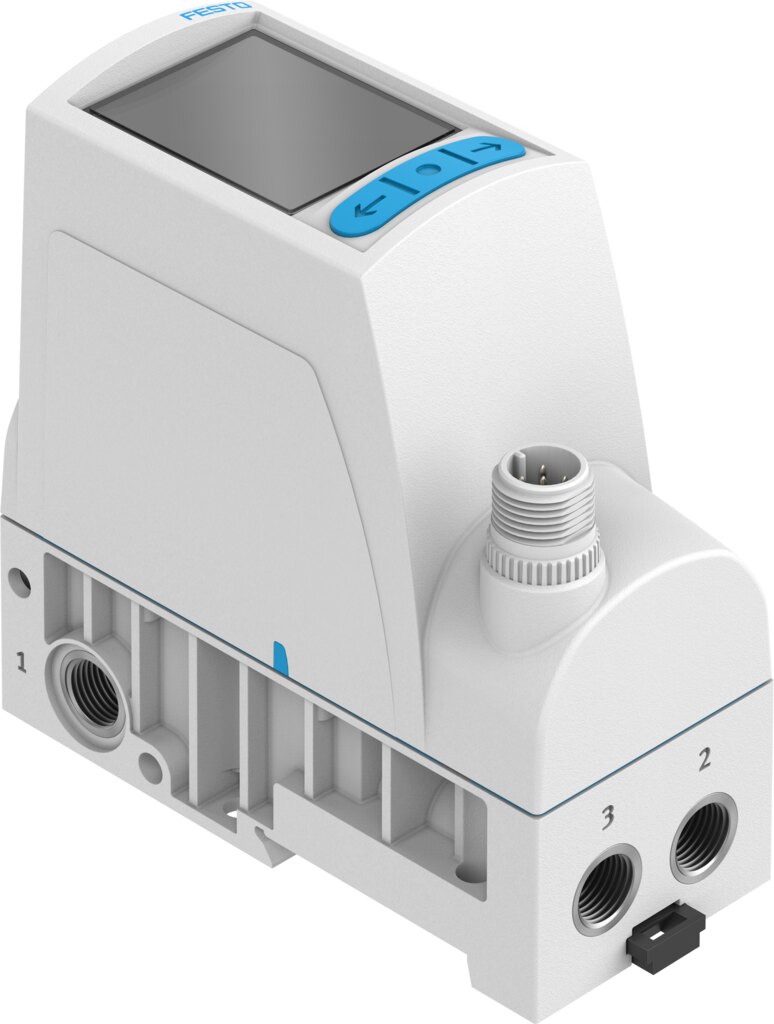

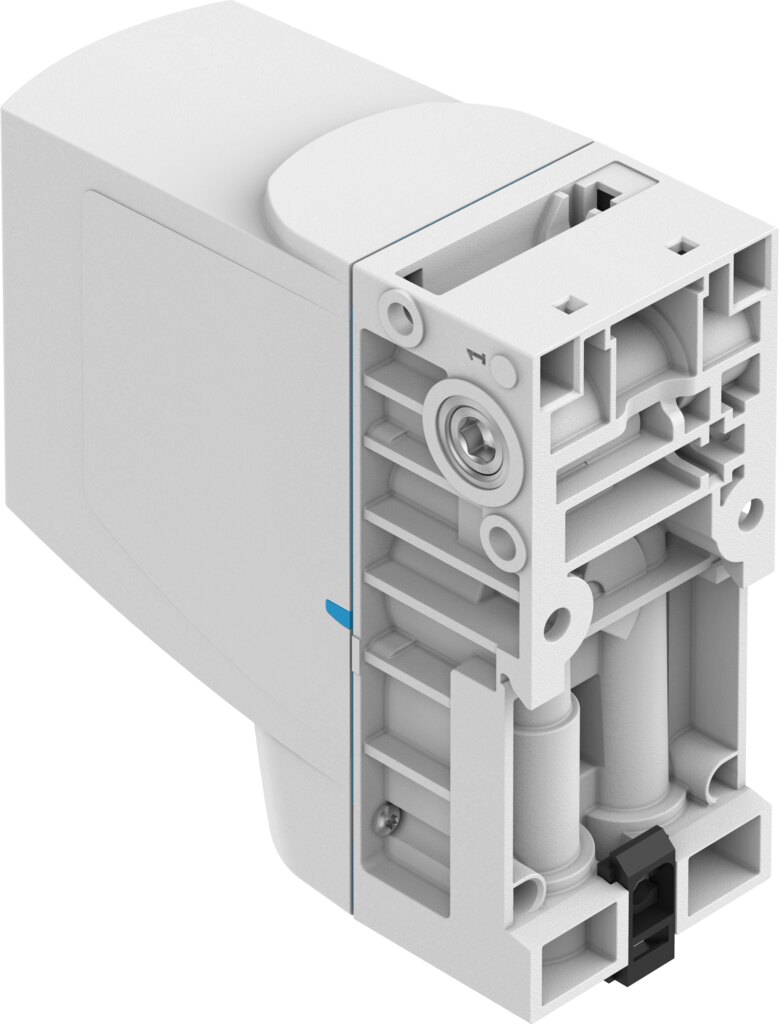

Proportional pressure regulator 0 to 6 bar G1/8 VPPI-5L-3-G18-0L6H-A4-S1D - Festo 8104667

Festo ✓ Original product Brand new

Electrically adjustable pressure from 0 to 6 bar: proportional pressure regulator VPPI-5L-3-G18-0L6H-A4-S1D with 4 - 20 mA setpoint. Standard nominal flow rate 900 l/min, port G1/8, total accuracy 1.1 %FS and degree of protection IP65. Genuine Festo part 8104667.

Net
€764.39
excl. VAT
Item FES-8104667
Manufacturer no. VPPI-5L-3-G18-0L6H-A4-S1D
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The proportional pressure regulator VPPI-5L-3-G18-0L6H-A4-S1D sets the output pressure electrically in the range 0 to 6 bar, specified via a 4 - 20 mA setpoint signal. It delivers a standard nominal flow rate of 900 l/min and is connected via G1/8. Design: poppet valve with spring return.

Benefits at a glance

  • Air capacity: standard nominal flow rate 900 l/min
  • Repeatable results: linearity 0.9 %FS, repeatability 0.4 %FS
  • Actual value feedback to the controller via analogue output 4 - 20 mA
  • Compact design: 42.2 mm x 95.3 mm x 94.3 mm (W x L x H)
  • For harsh environments: degree of protection IP65, corrosion resistance class CRC 2
  • Display on the device: TFT colour

Application

The operating medium is compressed air to ISO 8573-1:2010 [7:4:4] and inert gas. Lubricated operation is not possible. Mounting position of the VPPI-5L-3-G18-0L6H-A4-S1D: any, mounting: via through-hole for M4 screw, via DIN rail. Permissible ambient temperature 0 to 50 °C. Electrical connection of the VPPI-5L-3-G18-0L6H-A4-S1D: M12x1, A-coded to EN 61076-2-101.

Technical data

TypeVPPI-5L-3-G18-0L6H-A4-S1D
Festo part number8104667
Nominal size, supply5 mm
Nominal size, exhaust5 mm
Type of actuationElectrical
Sealing principleSoft
Total leakage5 l/h
Flow directionNon-reversible
Mounting positionAny
DesignPoppet valve with spring return
Short circuit current ratingFor all electrical connections
Max. cable length30 M
Setpoint value input4 - 20 mA
Input resistance0.3 kOhm
Safety instructionsSafety position VPPI, normally closed
Reverse polarity protectionFor all electrical connections
Type of resetMechanical spring
Dimensions (W x L x H)42.2 mm x 95.3 mm x 94.3 mm
Type of pilotingDirect
Valve function3-way proportional pressure regulator
Display typeTFT colour
Display size1.77"
Display resolution128x160 pixels
Operating pressure6 to 8 bar
Pressure regulation range0 to 6 bar
Inlet pressure 10 to 13 bar
Burst pressure40 bar
Standard nominal flow rate (standardised to DIN 1343)900 l/min
Standard nominal flow rate 2-3480 l/min
Operational voltage range DC21.6 to 27.6 V
Nominal current0.15 A
Max. current consumption525 mA
Max. electrical power consumption14.5 W
Nominal operating voltage DC24 V
Signal range analogue output4 - 20 mA
Max. load resistance current output500 Ohm
Accuracy analogue output in ± %FS1 %FS
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas
Note on operating and pilot mediumLubricated operation not possible
ApprovalRCM, c UL us - Listed (Oil)
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Certificate issuing authorityUL E322346
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
Suitable for use with foodSee supplementary material information
Media temperature0 to 50 °C
Degree of protectionIP65
Pollution degree2
Ambient temperature0 to 50 °C
Storage temperature-20 to 70 °C
Climatic category3K3 according to EN 60721
Relative air humidityNon-condensing
Nominal altitude of use< 3000 m NHN
Instructions on useThe product is suitable for industrial purposes only. Measures to eliminate radio interference may be required in residential areas.
Sound power level62.5 dB(A)
Sound power level at a distance of 1 m51.9 dB(A)
Product weight370 g
Linearity0.9 %FS
Hysteresis0.4 %FS
Reproducibility0.4 %FS
Total accuracy1.1 %FS
Temperature coefficient0.02 %/K
Electrical connection 1, functionActual value output, Setpoint input, Power supply
Electrical connection 1, connection typePlug
Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101
Electrical connection 1, number of connections/cores5
Electrical connection 1, tightening torque1.5 Nm
Type of mountingVia through-hole for M4 screw, via DIN rail
Pneumatic connection, port 1G1/8
Pneumatic connection, port 2G1/8
Pneumatic connection, port 3G1/8
Max. tightening torque for fitting8.5 Nm
Note on materialsRoHS compliant
Material housingReinforced PA
Material sealsHNBR, PTFE
Weight0.5 kg
ManufacturerFesto
Hersteller-NrVPPI-5L-3-G18-0L6H-A4-S1D
EAN4052568459642
Zolltarifnummer84811099
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialPA
ThreadG 1/8
Control range max. [bar]6
Seal materialHNBR, PTFE
MediumCompressed air, neutral gases
Function3-way proportional pressure regulating valve
Inlet pressure max. [bar]13
Flow rate [l/min]900
Actuation typeElectrical
Druckregelbereich [bar]0 bis 6
Medientemperatur [°C]0 bis 50
NormDIN EN 61076-2-101
Operating voltage24 V DC
Betriebsdruck max [bar]8
Pneumatic connectionG1/8
Protection ratingIP65
Temperaturbereich0-50 °C
Temperature (max.)50
