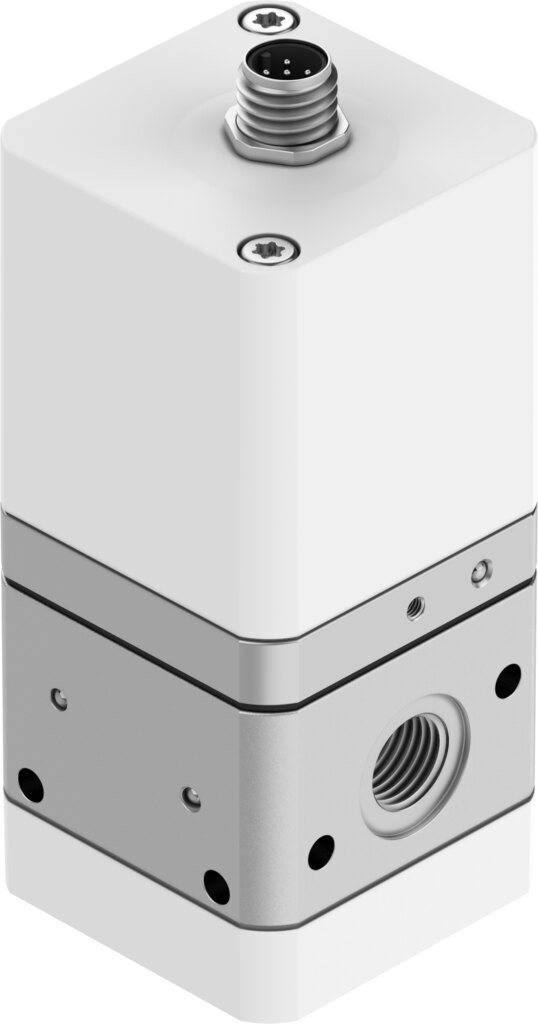

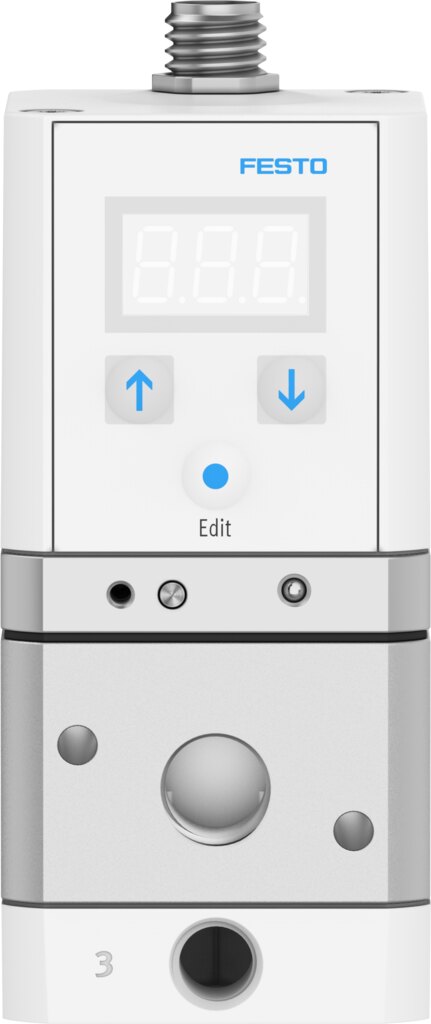

Proportional-pressure regulator VPPE-3-1-1/4-10-MR-E1T-F1A - Festo 8202579
Net
excl. VAT
€489.20
Item
FES-8202579
Manufacturer no.
VPPE-3-1-1/4-10-MR-E1T-F1A
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Nominal size, supply | 5 mm |
|---|---|
| Nominal size, exhaust | 2.5 mm |
| Type of actuation | Electrical |
| Sealing principle | Soft |
| Mounting position | Any, Preferably upright |
| Design | Piloted diaphragm regulator |
| Short circuit current rating | For all electrical connections |
| Setpoint value input | Digital |
| Safety instructions | Safety position VPPE: if the power supply cable is interrupted, output pressure is maintained unregulated. |
| Reverse polarity protection | For all electrical connections |
| Type of reset | Mechanical spring |
| Type of piloting | Piloted |
| Valve function | 3-way proportional pressure regulator |
| Display type | LED indicator, 3 digits |
| Pressure regulation range | 0.1 ... 10 bar |
| Value range MPa | 0 ... 1000 bit |
| Value range bar | 0 ... 10000 bit |
| Value range psi | 0 ... 1450 bit |
| Inlet pressure 1 | 6 ... 11 bar |
| Max. pressure hysteresis | 0.07 bar |
| Standard nominal flow rate (standardised to DIN 1343) | 2300 l/min |
| Operational voltage range DC | 21.6 ... 26.4 V |
| Max. current consumption | 160 mA |
| Duty cycle | 100% |
| Max. electrical power consumption | 4.2 W |
| Protocol | Modbus® RTU |
| Residual ripple | 10% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas |
| Note on operating and pilot medium | Lubricated operation not possible |
| Approval | RCM, c UL us - Listed (Oil) |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Certificate issuing authority | UL E322346 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Media temperature | 10 ... 50 °C |
| Degree of protection | IP65 |
| Ambient temperature | 0 ... 60 °C |
| Product weight | 390 g |
| Linearity | 1 %FS |
| Hysteresis | 0.7 %FS |
| Reproducibility | 0.5 %FS |
| Total accuracy | 1.25 %FS |
| Temperature cooefficient | 0.04 %/K |
| Electrical connection | 5-pin, M12, Plug |
| Type of serial interface | RS 485-A |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/4 |
| Pneumatic connection, port 3 | G1/8 |
| Note on materials | RoHS compliant |
| Material housing | Aluminium, powder-coated |
| Manufacturer | Festo |
| Hersteller-Nr | VPPE-3-1-1/4-10-MR-E1T-F1A |
| EAN | 4052568779658 |
| Zolltarifnummer | 84811099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
