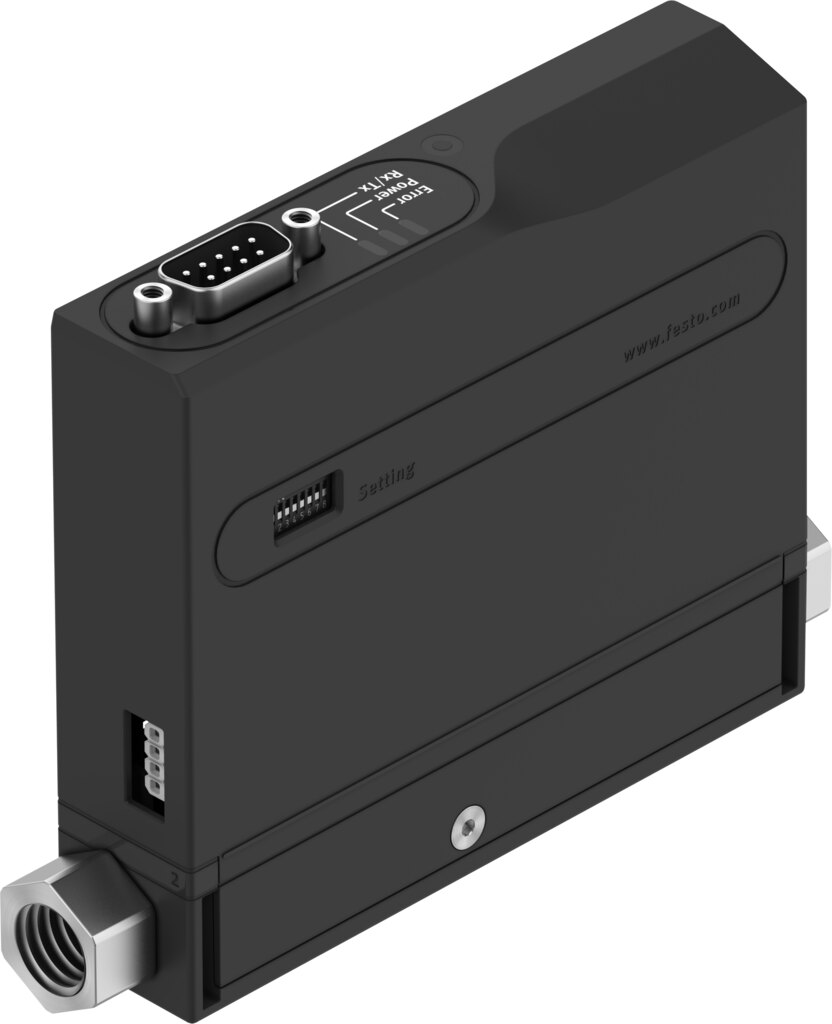

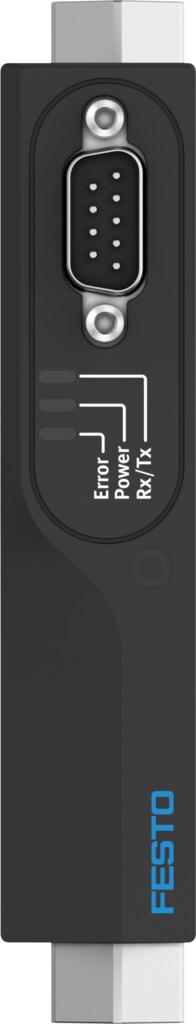

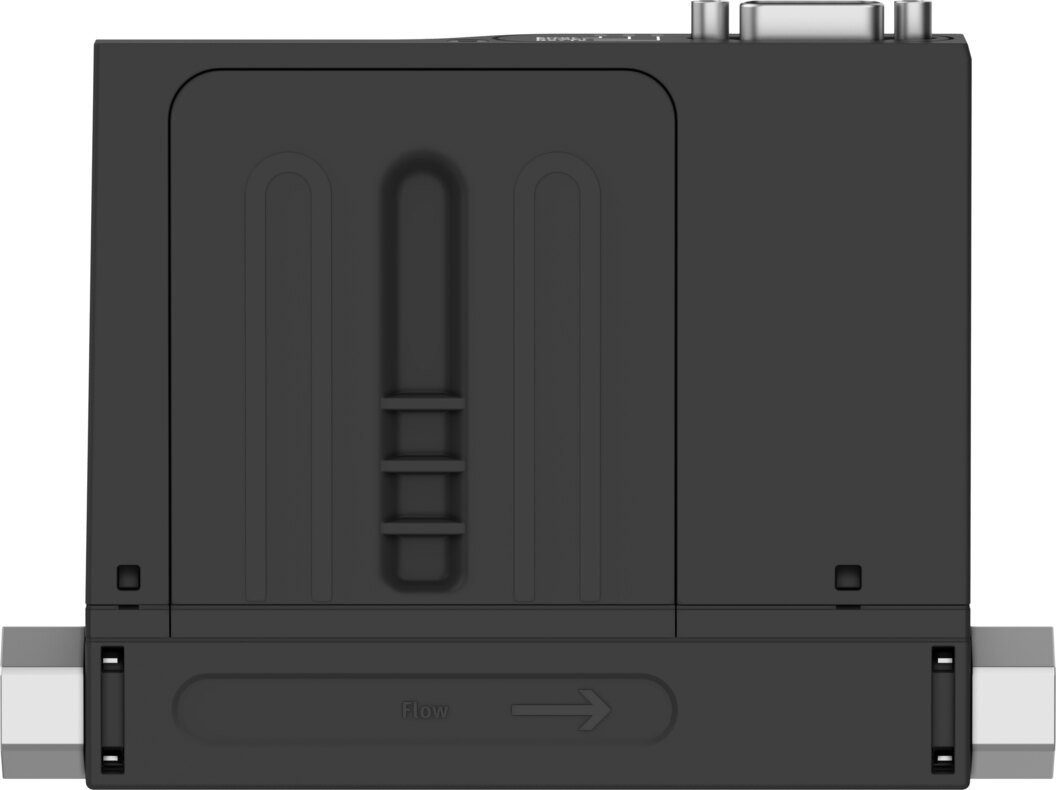

Mass flow controller 10 to 200 l/min VEFC-L-6-200-D31-R14-R14-MRM1 - Festo 8204588

Festo ✓ Original product Brand new

Mass flow controller VEFC-L-6-200-D31-R14-R14-MRM1 for controlled flow rate setting from 10 to 200 l/min. Setpoint via 0 - 5 V, 0 - 10 V, 1 - 5 V, 4 - 20 mA, modbus RTU, total accuracy 1.5 %FS and degree of protection IP20. Genuine Festo part 8204588.

Net
€869.40
excl. VAT
Item FES-8204588
Manufacturer no. VEFC-L-6-200-D31-R14-R14-MRM1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The mass flow controller VEFC-L-6-200-D31-R14-R14-MRM1 keeps the gas flow rate constant within the control range 10 to 200 l/min. The setpoint is specified via 0 - 5 V, 0 - 10 V, 1 - 5 V, 4 - 20 mA, modbus RTU. Operating pressure 6 bar.

Key benefits

  • Low power consumption: max. 1.6 W
  • Repeatable results: linearity 1.5 %FS, repeatability 0.2 %FS
  • Short settling time of 500 ms
  • Protected to IP20
  • Suitable for vacuum
  • Display on the device: LED

Application

The operating medium is compressed air to ISO 8573-1:2010 [7:4:4] and inert gas. Permissible ambient temperature 5 to 50 °C. The VEFC-L-6-200-D31-R14-R14-MRM1 is suitable for Li-ion battery production (reduced Cu/Zn/Ni content, F1a). The VEFC-L-6-200-D31-R14-R14-MRM1 is connected electrically via sub-D.

Technical data

TypeVEFC-L-6-200-D31-R14-R14-MRM1
Festo part number8204588
Degree of protectionIP20
Flow rate control range10 to 200 l/min
Note on the flow rate control rangeN2 equivalent, the specified dynamic and accuracy values apply to setpoint values >10%FS
Flow directionNon-reversible
Operating pressure6 bar
Overload pressure8 bar
Burst pressure21 bar
Inlet pressure 11 to 7 bar
Output pressure 2-1 to 3.5 bar
Suitability for vacuumYes
Valve function2-way proportional flow control valve
Type of actuationElectrical
Pneumatic connection, port 1R1/4
Pneumatic connection, port 2R1/4
Total leakage0.6 l/h
Note on total leakageStandardised according to SEMI E16 tested with CDA
Relative air humidity5 - 85%, Non-condensing
Climatic category3K22 in accordance with EN 60721
Nominal altitude of use≤ 2000 m NHN
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas
Media temperature5 to 50 °C
Ambient temperature5 to 50 °C
Storage temperature-20 to 60 °C
Nominal operating voltage DC24 V
Operational voltage range DC24 V
Max. current consumption65 mA
Max. electrical power consumption1.6 W
Information on power consumptionTypical < 1 W
Overvoltage categoryII
Residual ripple± 10%
Electrical connection 1, functionCommunication, Power supply
Electrical connection 1, connection typePlug
Electrical connection 1, connector systemSub-D
Electrical connection 1, number of connections/cores9
Setpoint value input0 - 5 V, 0 - 10 V, 1 - 5 V, 4 - 20 mA, Modbus RTU
Protection against direct and indirect contactPELV
Display typeLED
Reverse polarity protectionFor operating voltage
Total accuracy1.5 %FS
Reproducibility0.2 %FS
Linearity1.5 %FS
Hysteresis0.15 %FS
Overshoot2 %FS
Settling time500 ms
Step response time500 ms
Note on the measured variableDynamic characteristic values according to SEMI E17 with preset "fast". The dead time, the step response and the settling time may increase when the setpoint is changed from a closed valve state or when the back pressure is above atmospheric pressure.
Product weight250 g
Note on materialsRoHS compliant
Dimensions (W x L x H)24 mm x 130 mm x 97 mm
Instructions on useThe product is suitable for industrial purposes only. Measures to eliminate radio interference may be required in residential areas., For indoor use only
Fire test materialUL94 HB
Pollution degree2
ApprovalRCM
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK instructions for EMC, To UK RoHS instructions
KC markKC-EMV
KC Approval No. EMC/RadioFTO-KC-2024-1003
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 3 according to ISO 14644-1 (with CDA filter), Class 4 according to ISO 14644-1
Weight0.27 kg
ManufacturerFesto
Hersteller-NrVEFC-L-6-200-D31-R14-R14-MRM1
EAN4052568660185
Zolltarifnummer90328900
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MediumCompressed air, neutral gases
Actuation typeElectrical
Medientemperatur [°C]5 bis 50
Operating voltage24 V DC
Betriebsdruck max [bar]6
Protection ratingIP20
Temperature (max.)50
