This valve terminal groups 14 valve stations and is controlled through EtherNet/IP. Piping and wiring therefore run jointly through one assembly. The supply is 24 V DC.
Valve terminal, 14 stations, EtherNet/IP, outlets M 5 at valves (top), 28x M 5, 24 V DC
E.MC
Original product
Net price (excl. VAT)
€1,521.81
Item
FL-816667
Manufacturer no.
S1V-M5-14-EN
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.S1V-M5-14-EN
EAN4070497019690
Customs tariff number84812090
ConditionNew
Artikel
FL-816667
Frequently Bought Together
-
This Item:
€1,521.81
-
Valve terminal, 8 stations, PROFIBUS, outlets M 5 at valves (top), 16x M 5, 24 V DC
€1,300.60
-

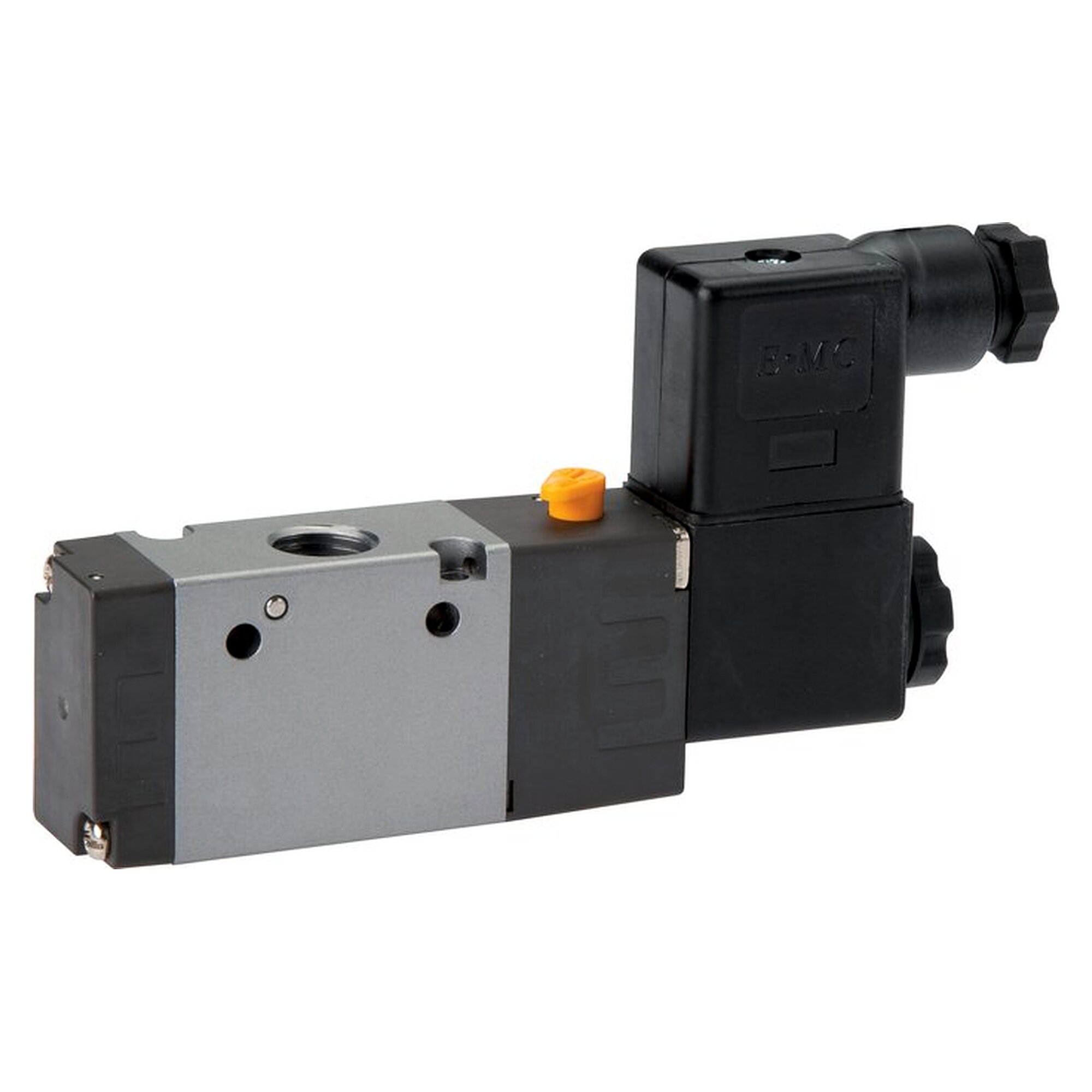

3/2-way solenoid valve, spring return (NC), G 1/4", 24 V AC, 800 l/min, nominal size 4.5 mm, 4 VA
€42.77
Total price
As soon as a machine has more than a handful of actuators, grouping the valves in one place pays off. This valve terminal holds 14 stations and is controlled through EtherNet/IP. The air supply runs jointly through the manifold and the wiring through a single cable. The supply is 24 V DC. The materials are body and spool aluminium, seals NBR, pilot plastic.
Advantages
- Mounted valves: Half-socket valves (5/2-way with spring return), so the terminal is ready for operation.
- Capacity for 14 valve stations, so the terminal grows with the plant.
- Control through EtherNet/IP, which reduces the wiring to a single cable.
- Supply with 24 V DC at 0.8 W / valve solenoid, which keeps the load on the power supply manageable.
- Protection class IP 40, suitable for mounting at the machine.
Technical data
| Feature | Value |
|---|---|
| G1 | 28x M 5 |
| Number of stations [pcs] | 14 |
| Control | EtherNet/IP |
| mounted valves | Half-socket valves (5/2-way with spring return) |
| Temperature range [°C] | -10 to +60 |
| Outlets | M 5 at valves (top) |
| G2 | G 1/8" |
| Dimensions [mm] | A 19, B 16, C 22, D 86, E 94.5, F 102.8, H 4.2, K 233.5, L 225.5, P 11.5, R 25, S 59.5 |
| Material body and spool | aluminium |
| Material seals | NBR |
| Material pilot | plastic |
| Operating pressure | 1.5 to 8 bar (5/3-way: 2 to 8 bar) |
| Flow rate | per valve station M 5: approx. 230 l/min, M 7: approx. 330 l/min |
| Media | oiled and non-oiled, filtered compressed air |
| Switching time | below 15 ms, max. 5 switching cycles / sec. (5/3-way: max. 3 switching cycles / sec.) |
| Control voltages | 24 V DC |
| Voltage tolerance | plus/minus 10 percent |
| Power consumption | 0.8 W / valve solenoid |
| Protection class | IP 40 |
| Service life | min. 40 million switching cycles |
| Scope of delivery | valve terminal including mounted valves |
Applications
- Retrofitting and extending existing valve islands.
- Special purpose machinery with a changing number of actuators.
- Machines with up to 14 pneumatic axes in one place.
- Plants whose control is connected through EtherNet/IP.
| Manufacturer | E.MC |
|---|---|
| Hersteller-Nr | S1V-M5-14-EN |
| EAN | 4070497019690 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Anzahl Stationen [Stk] | 14 |
| Temperaturbereich | -10-60 °C |
