This valve terminal belongs to the modular design of a valve terminal. The supply is 24 V DC. The materials are body and spool aluminium, seals NBR, pilot plastic.

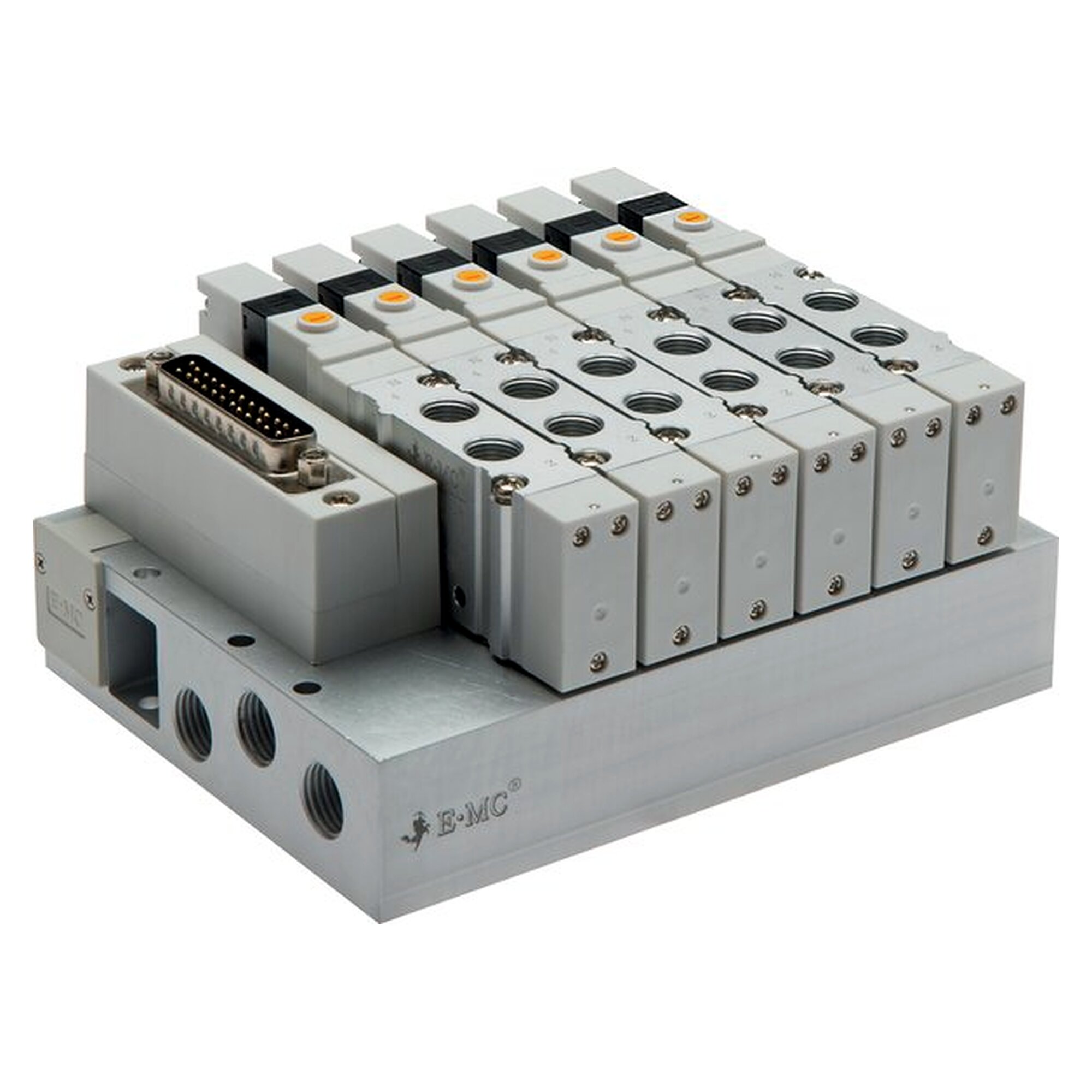

Valve terminal, 10 stations, EtherCAT, outlets G 1/8" at valves (top), 20x G 1/8", 24 V DC
E.MC
Original product
Net price (excl. VAT)
€1,483.81
Item
FL-589302
Manufacturer no.
S2V-18-10-EC
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.S2V-18-10-EC
EAN4050571915605
Customs tariff number84812090
ConditionNew
Artikel
FL-589302
Frequently Bought Together
-
This Item:
€1,483.81
-
Valve terminal, 4 stations, CC-Link, outlets M 5 at base plate (side), 8x M 5, 24 V DC
€1,160.83
-
Valve terminal, 22 stations, PROFIBUS DP, 24 V DC, protection class IP 65, body aluminium / plastic
€1,341.14
Total price
This valve terminal belongs to the modular design of a valve terminal. The supply is 24 V DC. The protection class is IP 40. The materials are body and spool aluminium, seals NBR, pilot plastic.
Advantages
- Dimensions A 27, B 20, C 30, D 106.7, E 119.1, F 127.6, H 4.3, K 232.5, L 224.5, P 16, Q 15.4, R 29.8, S 64.3, so the space requirement can be planned in advance.
- Outlets G 1/8" at valves (top), so the position of the fittings is known in advance.
- Mounted valves: Half-socket valves (5/2-way with spring return), so the terminal is ready for operation.
- Capacity for 10 valve stations, so the terminal grows with the plant.
- Control through EtherCAT, which reduces the wiring to a single cable.
Technical data
| Feature | Value |
|---|---|
| G1 | 20x G 1/8" |
| Number of stations [pcs] | 10 |
| Control | EtherCAT |
| mounted valves | Half-socket valves (5/2-way with spring return) |
| Temperature range [°C] | -10 to +60 |
| Outlets | G 1/8" at valves (top) |
| G2 | G 1/4" |
| Dimensions [mm] | A 27, B 20, C 30, D 106.7, E 119.1, F 127.6, H 4.3, K 232.5, L 224.5, P 16, Q 15.4, R 29.8, S 64.3 |
| Material body and spool | aluminium |
| Material seals | NBR |
| Material pilot | plastic |
| Operating pressure | 1.5 to 8 bar (5/3-way: 2 to 8 bar) |
| Flow rate | per valve station approx. 700 l/min |
| Media | oiled and non-oiled, filtered compressed air |
| Switching time | below 15 ms, max. 5 switching cycles / sec. (5/3-way: max. 3 switching cycles / sec.) |
| Control voltages | 24 V DC |
| Voltage tolerance | plus/minus 10 percent |
| Power consumption | 0.8 W / valve solenoid |
| Protection class | IP 40 |
| Service life | min. 40 million switching cycles |
| Scope of delivery | valve terminal including mounted valves |
Applications
- Retrofitting and extending existing valve islands.
- Special purpose machinery with a changing number of actuators.
- Machines with up to 10 pneumatic axes in one place.
- Plants whose control is connected through EtherCAT.
| Weight | 0.310000 |
|---|---|
| Manufacturer | E.MC |
| Hersteller-Nr | S2V-18-10-EC |
| EAN | 4050571915605 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Anzahl Stationen [Stk] | 10 |
| Temperaturbereich | -10-60 °C |
