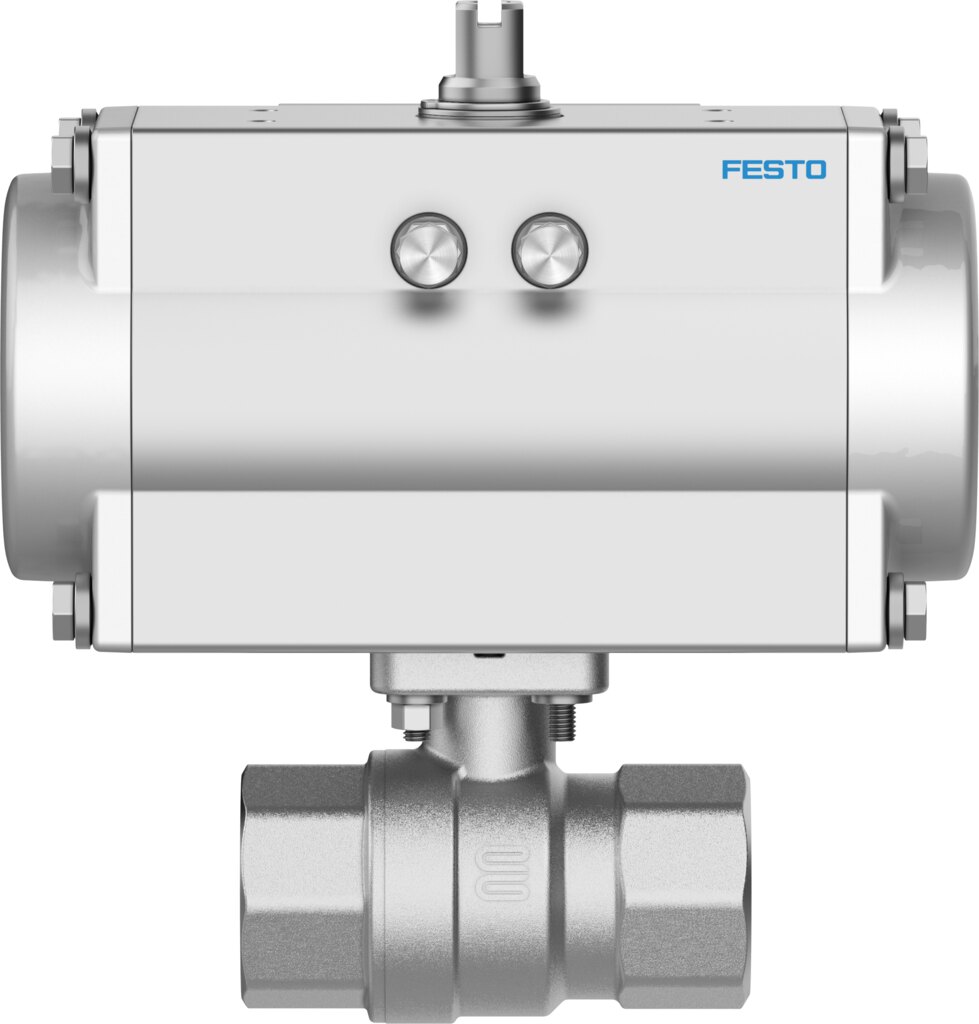

Ball valve unit with quarter turn actuator nickel-plated brass Rp1 1/2 DN 40 PN 25 VAPB-A-1 1/2-F-25-F0405-PB60 - Festo 8191932

Festo ✓ Original product Brand new

Automated shut-off in DN 40 lines: the ball valve unit VAPB-A-1 1/2-F-25-F0405-PB60 combines a PN 25 ball valve with a pneumatic quarter turn actuator. Connection Rp1 1/2, housing in brass, nickel-plated, Kv 200 m³/h. Actuator for operating pressure 5.5 to 8 bar.

Net
€399.31
excl. VAT
Item FES-8191932
Manufacturer no. VAPB-A-1 1/2-F-25-F0405-PB60
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

For remotely operated shut-off in DN 40 lines, VAPB-A-1 1/2-F-25-F0405-PB60 supplies valve and quarter turn actuator from one source, rated for PN 25. The Kv value is 200 m³/h.

Key advantages

  • Flow rate Kv 200 m³/h at nominal size DN 40
  • Nominal pressure PN 25 for the valve body
  • Housing in brass, nickel-plated 2.0402, CW617N
  • Quarter turn actuator for operating pressure 5.5 to 8 bar
  • Media from -10 to 200 °C
  • Actuator interface F0405 to ISO 5211

Applications

Festo lists the following media for VAPB-A-1 1/2-F-25-F0405-PB60: compressed air to ISO 8573-1:2010 [-:-:-], inert gases, water - no steam, neutral fluids, other media on request. Installation is possible in any position.

Technical data

FeatureValue
TypeVAPB-A-1 1/2-F-25-F0405-PB60
Festo part number8191932
DesignQuarter turn actuator
Type of actuationPneumatic
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveRp1 1/2
Switching position indicatorSlot direction = flow direction
Flange hole patternF0405
Nominal size DN40
Valve function2/2
Flow directionReversible
Operating pressure5.5 to 8 bar
Nominal pressure PN25
Breakaway torque at differential pressure, nominal pressure, process valve PN19 Nm
Based on standardISO 5211
MediumCompressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water - no steam, Neutral fluids, Other media on request
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Media temperature-10 to 200 °C
Flow rate Kv200 m³/h
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingBrass, nickel-plated
Material number housing2.0402, CW617N
Material seat sealPTFE
Material sealsHNBR, PTFE
Material ballBrass, Hard chrome-plated
Material number ball2.0402, CW617N
Material shaftBrass
Material number shaft2.0401, CW614N
Product weight5200 g
Corrosion resistance class CRC1 - Low corrosion stress
Weight6 kg
ManufacturerFesto
Hersteller-NrVAPB-A-1 1/2-F-25-F0405-PB60
EAN4052568715977
Zolltarifnummer84818081
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialNickel-plated brass (CW617N)
ThreadRp 1 1/2
Nominal size DN [mm]40
Nominal pressure PN [bar]25
Seal materialHNBR, PTFE
Housing materialNickel-plated brass (CW617N)
Function2/2
Actuation typepneumatic
Medientemperatur [°C]-10 bis 200
NormISO 5211
SeriesVAPB
