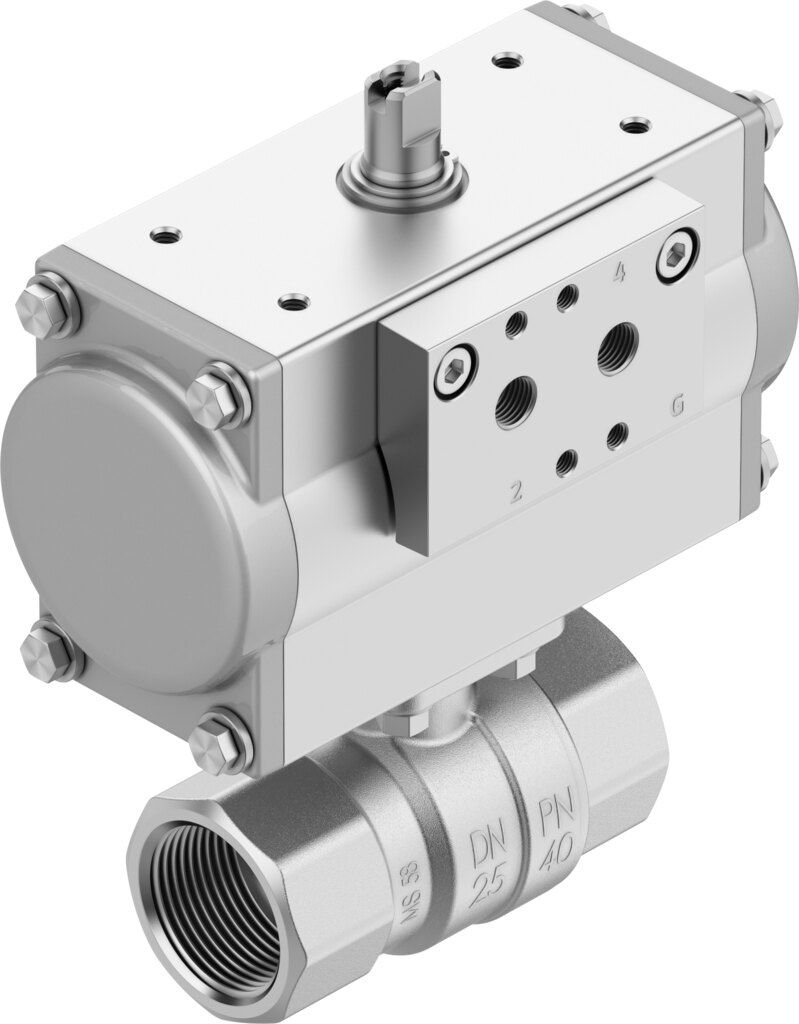

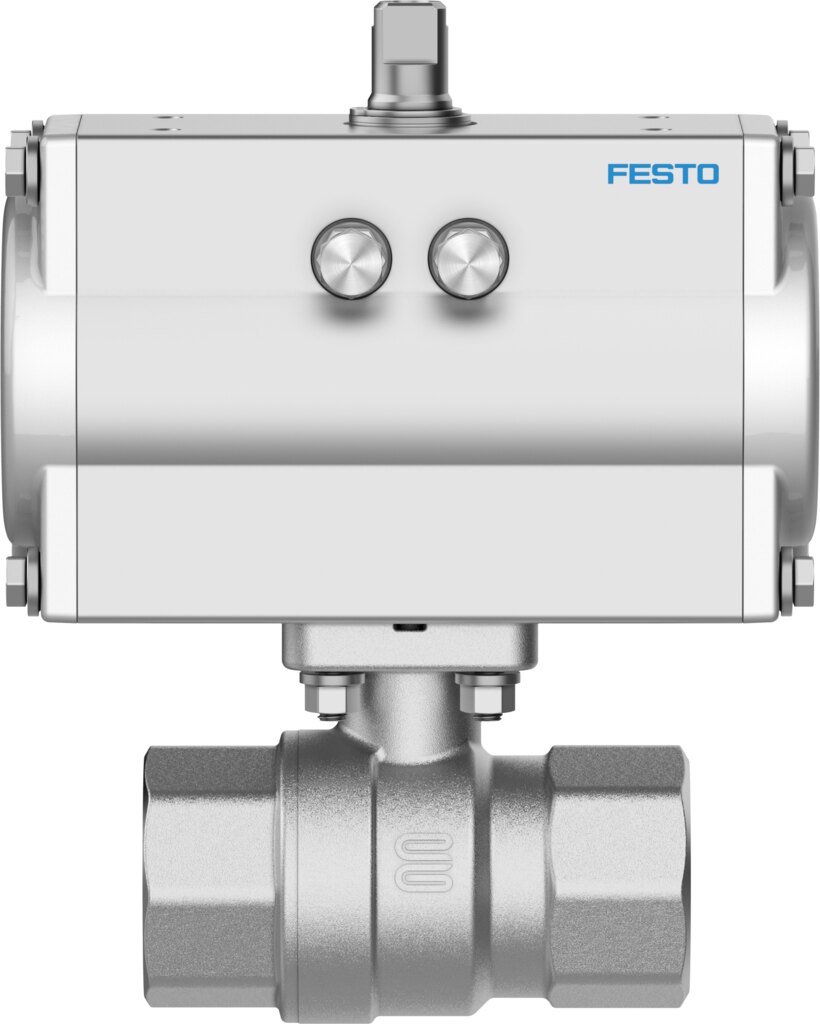

Ball valve unit with quarter turn actuator nickel-plated brass Rp2 DN 50 PN 25 VAPB-A-2-F-25-F05-PA40 - Festo 8191924

Festo ✓ Original product Brand new

Automated shut-off in DN 50 lines: the ball valve unit VAPB-A-2-F-25-F05-PA40 combines a PN 25 ball valve with a pneumatic quarter turn actuator. Connection Rp2, housing in brass, nickel-plated, Kv 292 m³/h. Actuator for operating pressure 5.5 to 8 bar.

Net
€418.01
excl. VAT
Item FES-8191924
Manufacturer no. VAPB-A-2-F-25-F05-PA40
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

For remotely operated shut-off in DN 50 lines, VAPB-A-2-F-25-F05-PA40 supplies valve and quarter turn actuator from one source, rated for PN 25. The Kv value is 292 m³/h.

Benefits

  • Flow rate Kv 292 m³/h at nominal size DN 50
  • Nominal pressure PN 25 for the valve body
  • Quarter turn actuator for operating pressure 5.5 to 8 bar
  • Housing in brass, nickel-plated 2.0402, CW617N
  • Corrosion resistance class CRC 1
  • Media from -10 to 200 °C

Applications

Suitable for compressed air to ISO 8573-1:2010 [-:-:-], inert gases, water - no steam, neutral fluids, other media on request. Mounting position is freely selectable.

Technical data

FeatureValue
TypeVAPB-A-2-F-25-F05-PA40
Festo part number8191924
DesignQuarter turn actuator
Type of actuationPneumatic
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveRp2
Switching position indicatorSlot direction = flow direction
Flange hole patternF05
Nominal size DN50
Valve function2/2
Flow directionReversible
Operating pressure5.5 to 8 bar
Nominal pressure PN25
Breakaway torque at differential pressure, nominal pressure, process valve PN29 Nm
Based on standardEN 10226-1
MediumCompressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water - no steam, Neutral fluids, Other media on request
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Media temperature-10 to 200 °C
Flow rate Kv292 m³/h
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingBrass, nickel-plated
Material number housing2.0402, CW617N
Material seat sealPTFE
Material sealsHNBR, PTFE
Material ballBrass, Hard chrome-plated
Material number ball2.0402, CW617N
Material shaftBrass
Material number shaft2.0401, CW614N
Product weight5240 g
Corrosion resistance class CRC1 - Low corrosion stress
Weight4.8 kg
ManufacturerFesto
Hersteller-NrVAPB-A-2-F-25-F05-PA40
EAN4052568715861
Zolltarifnummer84818081
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialNickel-plated brass (CW617N)
ThreadRp 2
Nominal size DN [mm]50
Nominal pressure PN [bar]25
Seal materialHNBR, PTFE
Housing materialNickel-plated brass (CW617N)
Function2/2
Actuation typepneumatic
Medientemperatur [°C]-10 bis 200
NormDIN EN 10226-1
SeriesVAPB
