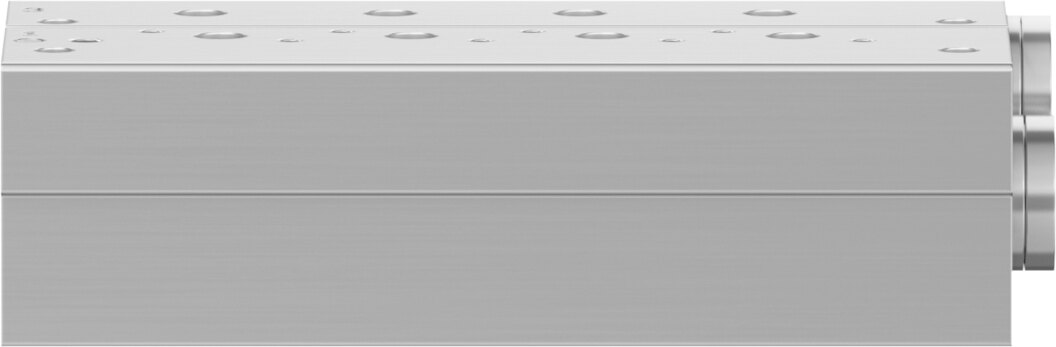

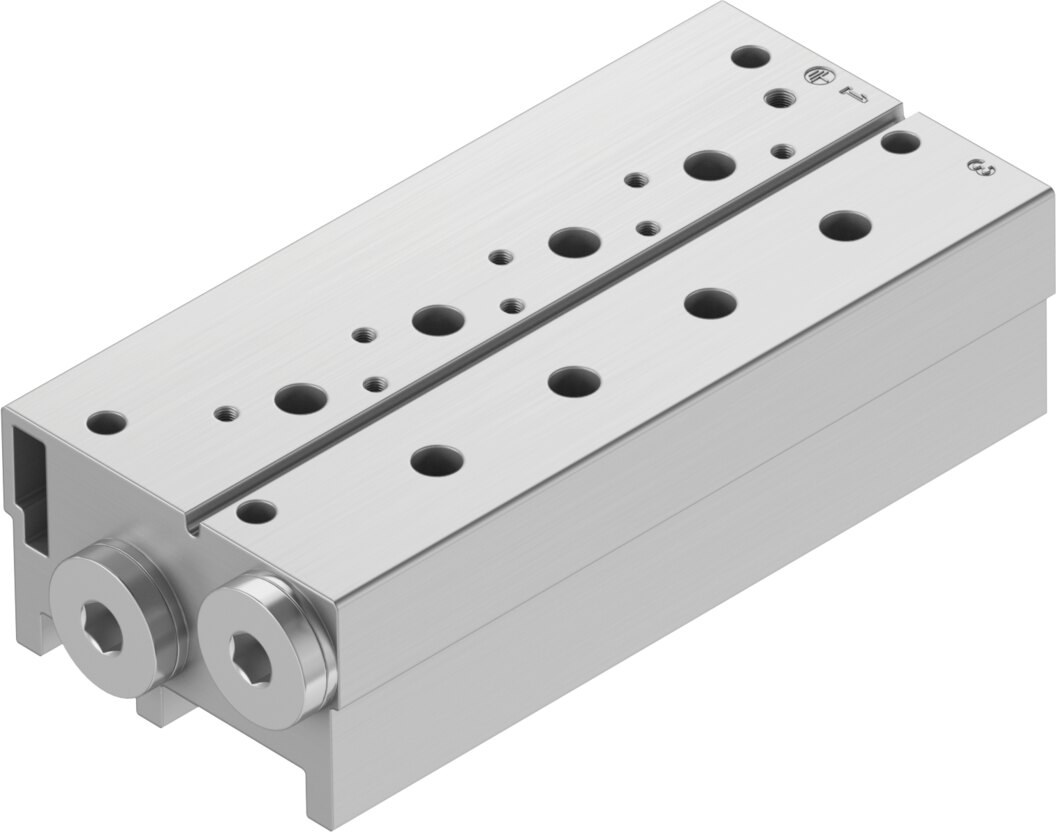

Manifold block for 4 valves, 22 mm grid, 1/4 NPT VABM-B10-20S-N14-4-P3 - Festo 576479

Festo ✓ Original product Brand new

Groups 4 valves on a 22 mm grid with one shared compressed-air supply. Supply port 1 in 1/4 NPT and exhaust port 3 in 1/4 NPT. Type VABM-B10-20S-N14-4-P3 in wrought aluminium alloy, CRC 2.

Net
€46.06
excl. VAT
Item FES-576479
Manufacturer no. VABM-B10-20S-N14-4-P3
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

A manifold block for 4 valves on a 22 mm grid: the VABM-B10-20S-N14-4-P3 combines the valves into one group with a shared supply. Lines connect via supply port 1 in 1/4 NPT and exhaust port 3 in 1/4 NPT. The body of the VABM-B10-20S-N14-4-P3 is made of wrought aluminium alloy (CRC 2).

Benefits

  • Valve positions: 4 positions on a 22 mm grid
  • Supply: Port 1 in 1/4 NPT, exhaust in 1/4 NPT
  • Material: Wrought aluminium alloy, CRC 2
  • PWIS-free: VDMA 24364-B1/B2-L

Applications

Type of mounting: with through-hole, any mounting position.

Technical data

TypeVABM-B10-20S-N14-4-P3
Festo part number576479
Grid dimension22 mm
Mounting positionAny
Maximum number of valve positions4
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Product weight441 g
Type of mountingWith through-hole
Pneumatic connection, port 11/4 NPT
Pneumatic connection, port 31/4 NPT
Note on materialsRoHS compliant
Material manifold railWrought aluminium alloy
Weight (shipping)0.7 kg
Weight0.7 kg
ManufacturerFesto
Hersteller-NrVABM-B10-20S-N14-4-P3
EAN4052568380045
Zolltarifnummer84819000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadNPT 1/4
Anzahl Stationen [Stk]4
SeriesVABM
Pneumatic connectionNPT 1/4
