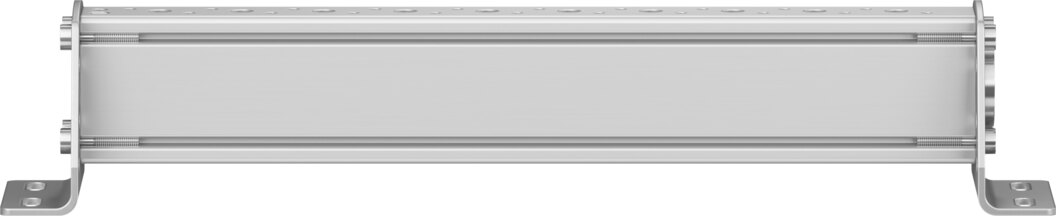

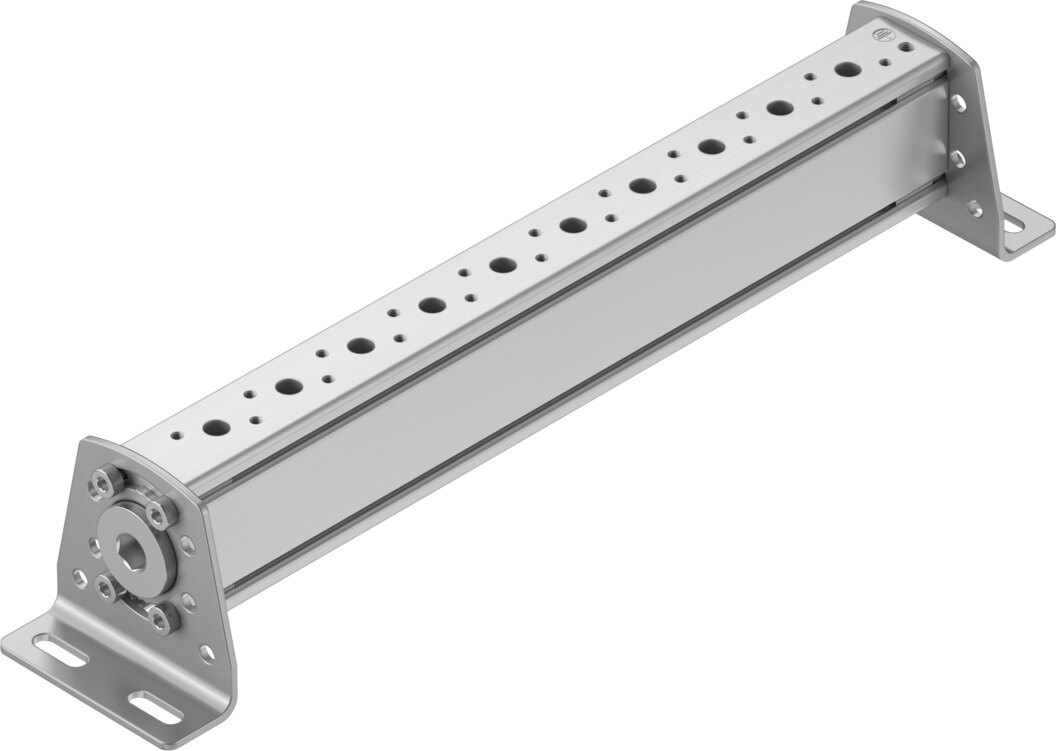

Common supply manifold for 9 valves, 22 mm grid, 3/8 NPT VABM-B10-20-N38-9-P53 - Festo 576382

Festo ✓ Original product Brand new

9 valve positions on a 22 mm grid save individual tubing, the supply runs centrally through the rail. Supply port 1 in 3/8 NPT. Type VABM-B10-20-N38-9-P53 in wrought aluminium alloy, CRC 2.

Net
€70.41
excl. VAT
Item FES-576382
Manufacturer no. VABM-B10-20-N38-9-P53
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The common supply manifold VABM-B10-20-N38-9-P53 carries 9 valves on a 22 mm grid and supplies them with compressed air from one source. Pneumatic layout: supply port 1 in 3/8 NPT. The body of the VABM-B10-20-N38-9-P53 is made of wrought aluminium alloy (CRC 2).

Benefits

  • Valve positions: 9 positions on a 22 mm grid
  • Supply: Port 1 in 3/8 NPT
  • Material: Wrought aluminium alloy, CRC 2
  • PWIS-free: VDMA 24364-B1/B2-L

Applications

The VABM-B10-20-N38-9-P53 is mounted with mounting bracket, in any position.

Technical data

TypeVABM-B10-20-N38-9-P53
Festo part number576382
Grid dimension22 mm
Mounting positionAny
Maximum number of valve positions9
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Product weight521 g
Type of mountingWith mounting bracket
Pneumatic connection, port 13/8 NPT
Note on materialsRoHS compliant
Material manifold railWrought aluminium alloy
Weight (shipping)0.9 kg
Weight0.9 kg
ManufacturerFesto
Hersteller-NrVABM-B10-20-N38-9-P53
EAN4052568379810
Zolltarifnummer84819000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadNPT 3/8
Anzahl Stationen [Stk]9
SeriesVABM
Pneumatic connectionNPT 3/8
