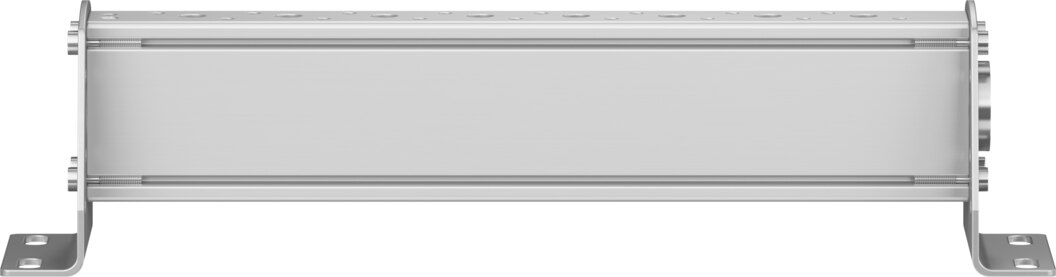

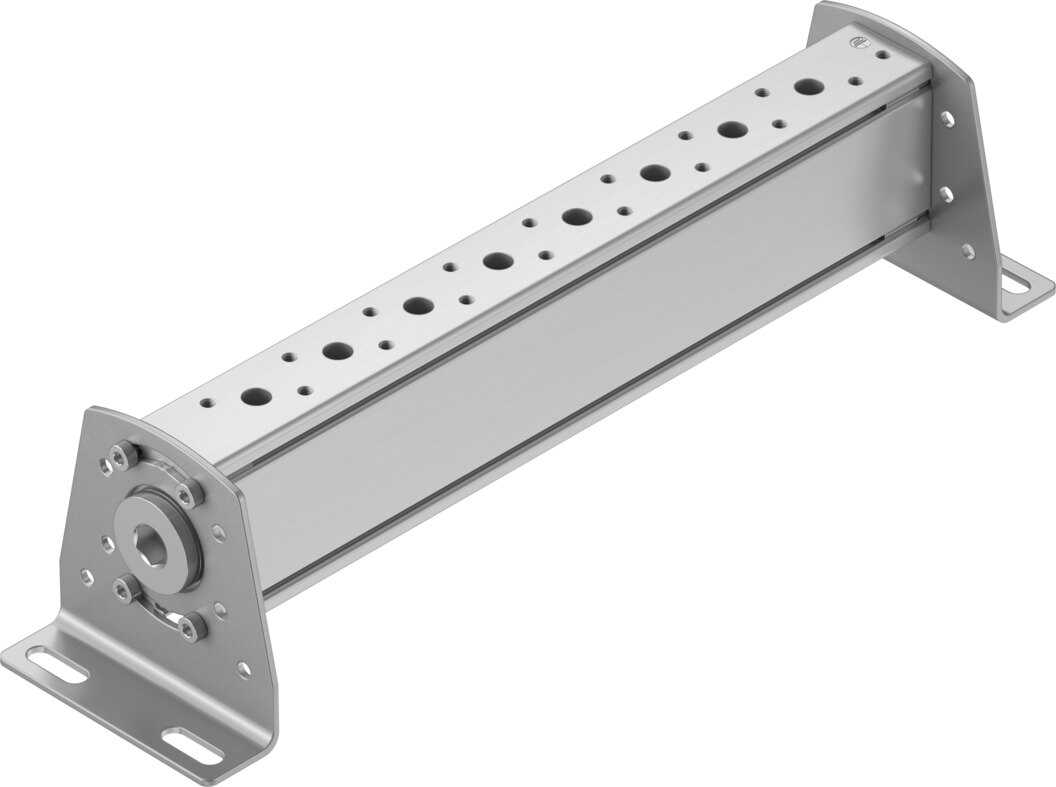

Common supply manifold for 7 valves, 27.5 mm grid, 1/2 NPT VABM-B10-25-N12-7-P53 - Festo 8026233

Festo ✓ Original product Brand new

7 valve positions on a 27.5 mm grid save individual tubing, the supply runs centrally through the rail. Supply port 1 in 1/2 NPT. Type VABM-B10-25-N12-7-P53 in wrought aluminium alloy, CRC 2.

Net
€74.48
excl. VAT
Item FES-8026233
Manufacturer no. VABM-B10-25-N12-7-P53
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 7 valve positions on a 27.5 mm grid, the common supply manifold VABM-B10-25-N12-7-P53 forms the base of a compact valve group. Lines connect via supply port 1 in 1/2 NPT. The VABM-B10-25-N12-7-P53 is made of wrought aluminium alloy, corrosion resistance class 2, VDMA 24364-B1/B2-L.

Benefits

  • Valve positions: 7 positions on a 27.5 mm grid
  • Supply: Port 1 in 1/2 NPT
  • Material: Wrought aluminium alloy, CRC 2
  • PWIS-free: VDMA 24364-B1/B2-L

Applications

Type of mounting: with mounting bracket, any mounting position.

Technical data

TypeVABM-B10-25-N12-7-P53
Festo part number8026233
Grid dimension27.5 mm
Mounting positionAny
Maximum number of valve positions7
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Product weight668 g
Type of mountingWith mounting bracket
Pneumatic connection, port 11/2 NPT
Note on materialsRoHS compliant
Material manifold railWrought aluminium alloy
Weight (shipping)1.2 kg
Weight1.2 kg
ManufacturerFesto
Hersteller-NrVABM-B10-25-N12-7-P53
EAN4052568427368
Zolltarifnummer84819000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadNPT 1/2
Anzahl Stationen [Stk]7
SeriesVABM
Pneumatic connectionNPT 1/2
