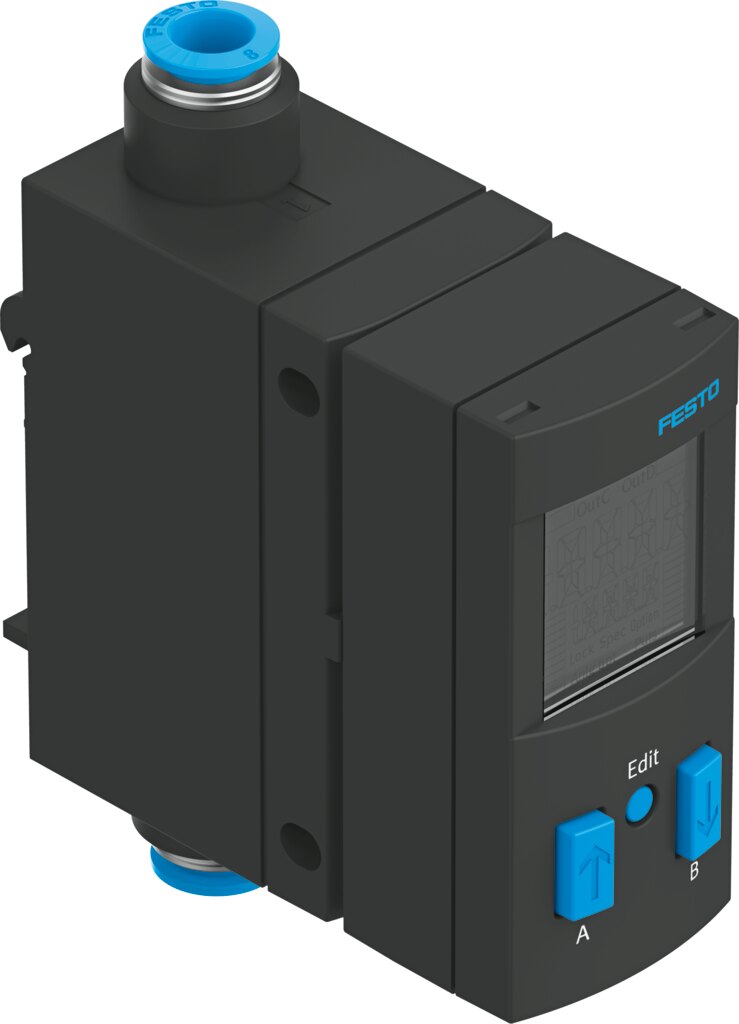

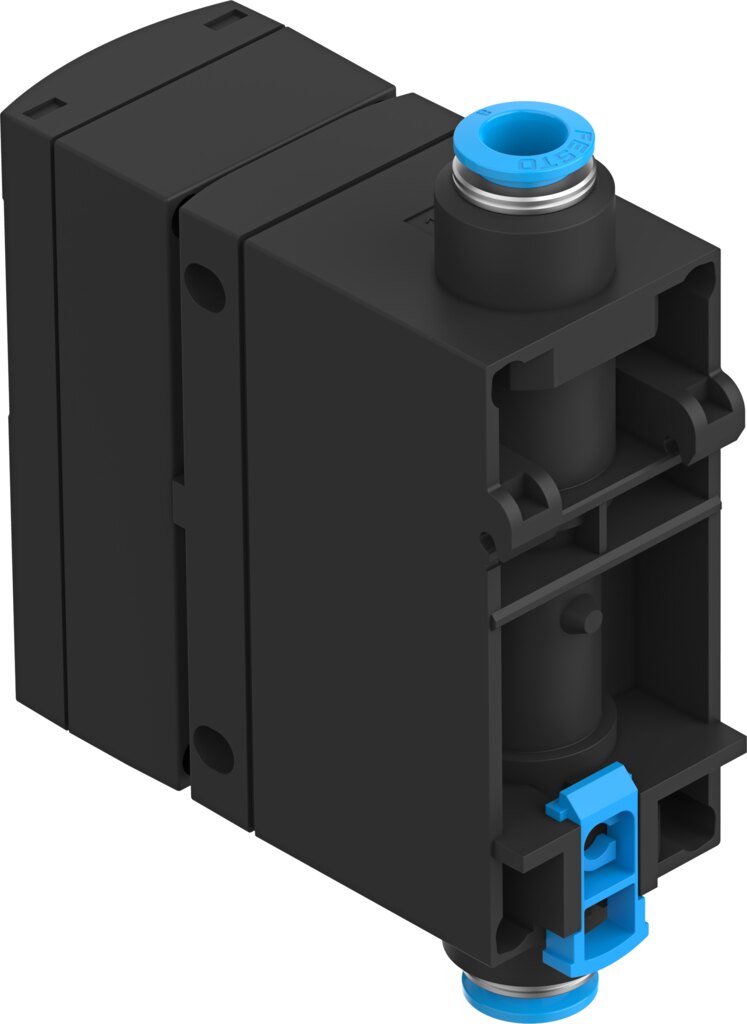

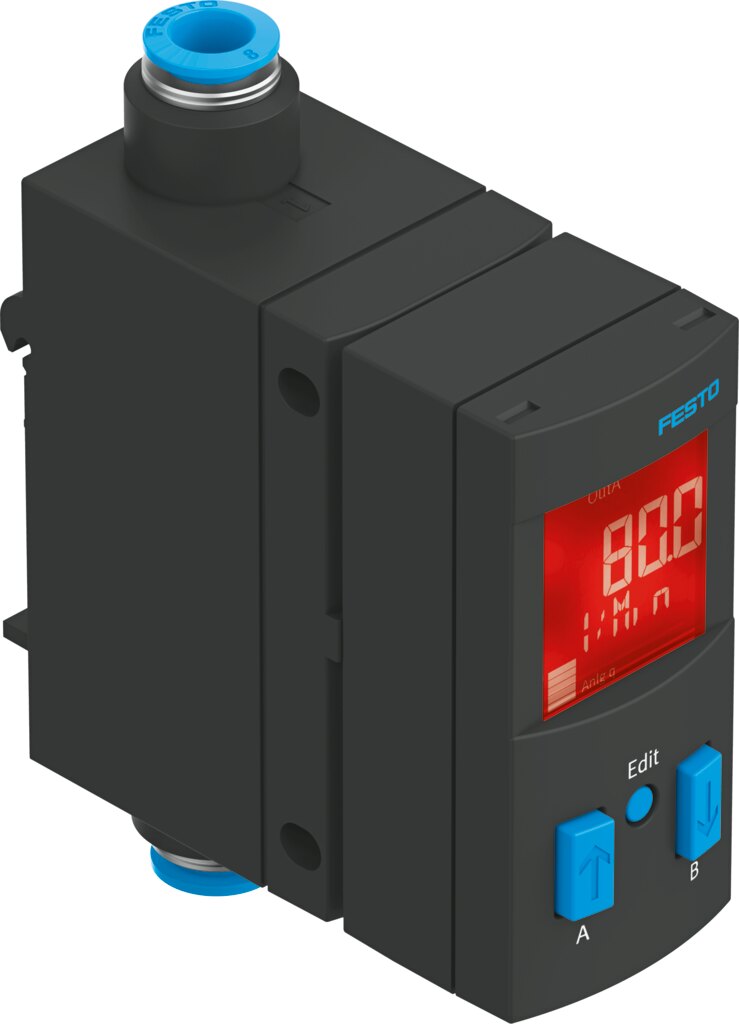

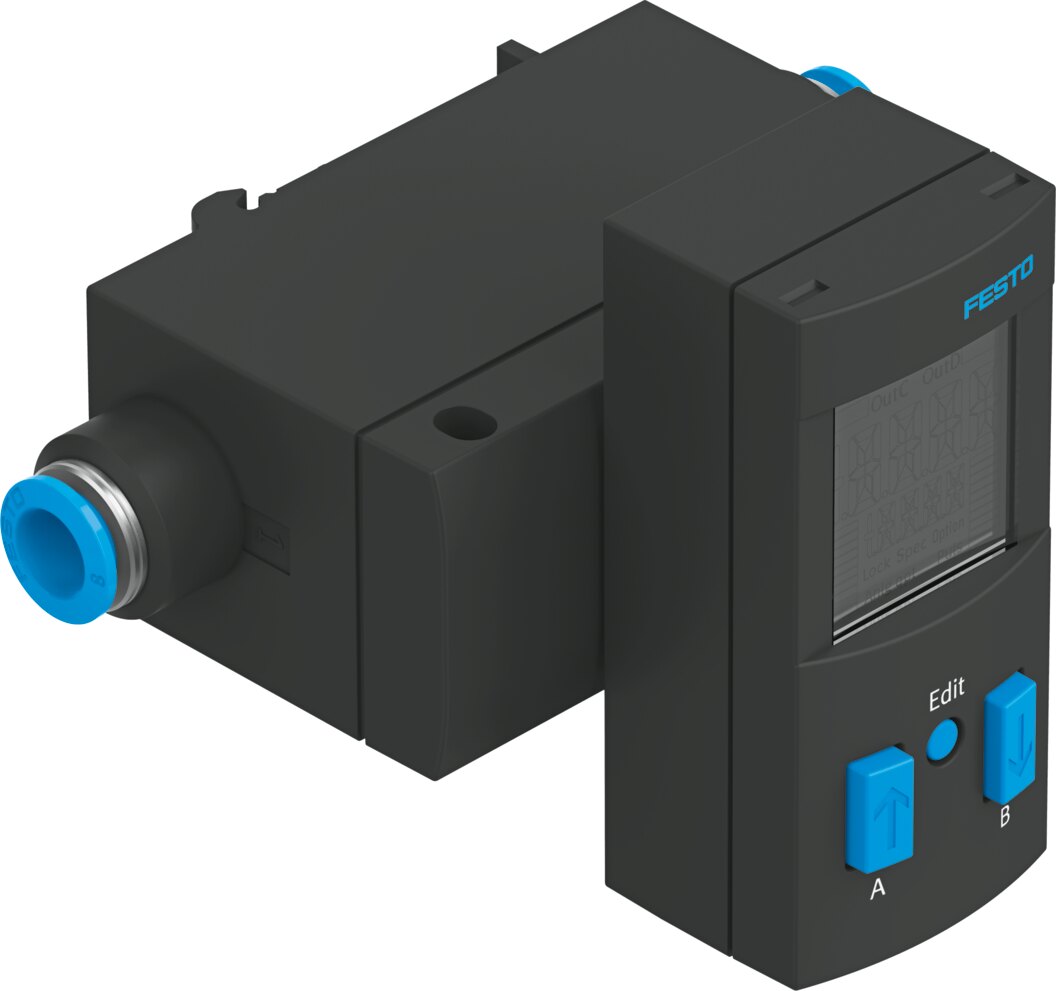

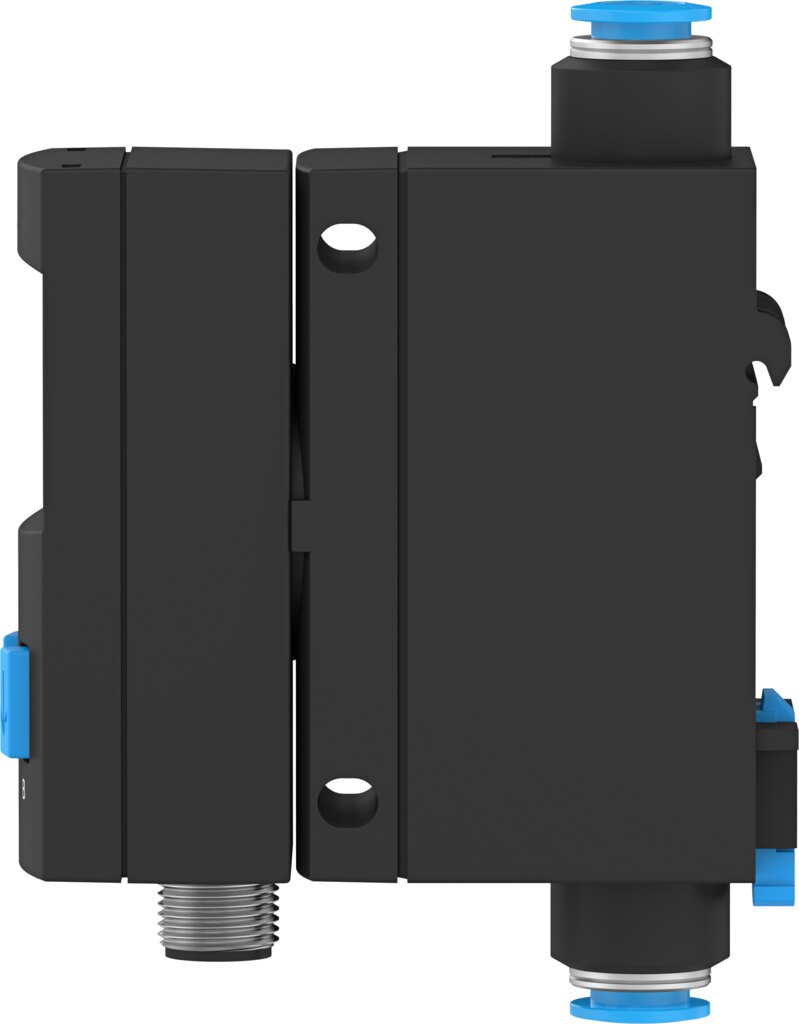

Flow sensor 0.1 to 10 l/min for compressed air 8 mm tubing SFAB-10U-WQ8-2SV-M12 - Festo 579023

Festo ✓ Original product Brand new

The flow sensor SFAB-10U-WQ8-2SV-M12 is designed for flow rate of compressed air between 0.1 l/min and 10 l/min. For limit values up to 10 l/min there are two switching outputs, PNP or NPN selectable, the measured value is output via analogue output 0 - 10 V. Operating pressure 0 to 10 bar, connection for 8 mm tubing.

Net
€443.82
excl. VAT
Item FES-579023
Manufacturer no. SFAB-10U-WQ8-2SV-M12
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With the Festo SFAB-10U-WQ8-2SV-M12 you record flow rate within 0.1 to 10 l/min and evaluate the values on the device or in the controller.

Benefits

  • Measuring range 0.1 to 10 l/min
  • Switching output 2 x PNP or 2 x NPN, switchable and analogue output 0 - 10 V
  • Operating pressure 0 to 10 bar

Applications

Flow direction of the SFAB-10U-WQ8-2SV-M12: unidirectional, P1 to P2. Typical tasks up to 10 l/min include flow monitoring on compressed air consumers and in test rigs.

Technical data

TypeSFAB-10U-WQ8-2SV-M12
Festo part number579023
Start value for flow rate measuring range0.1 l/min
End value for flow rate measuring range10 l/min
Flow directionUnidirectional, P1 to P2
Pneumatic connectionFor tubing O.D. 8 mm
Switching output2 x PNP or 2 x NPN, switchable
Analogue output0 - 10 V
Electrical connectionM12x1, 5-pin, Straight plug
Operating pressure0 to 10 bar
Weight0.24 kg
ManufacturerFesto
Hersteller-NrSFAB-10U-WQ8-2SV-M12
Zolltarifnummer90268020
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesSFAB
Betriebsdruck max [bar]10
