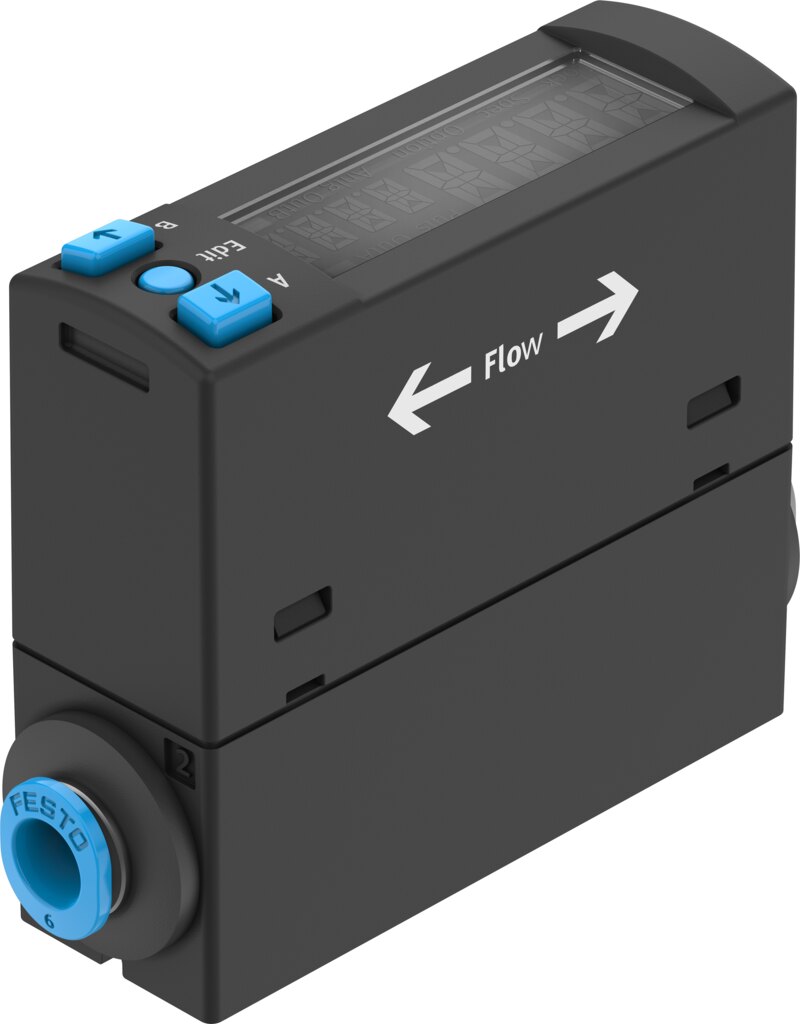

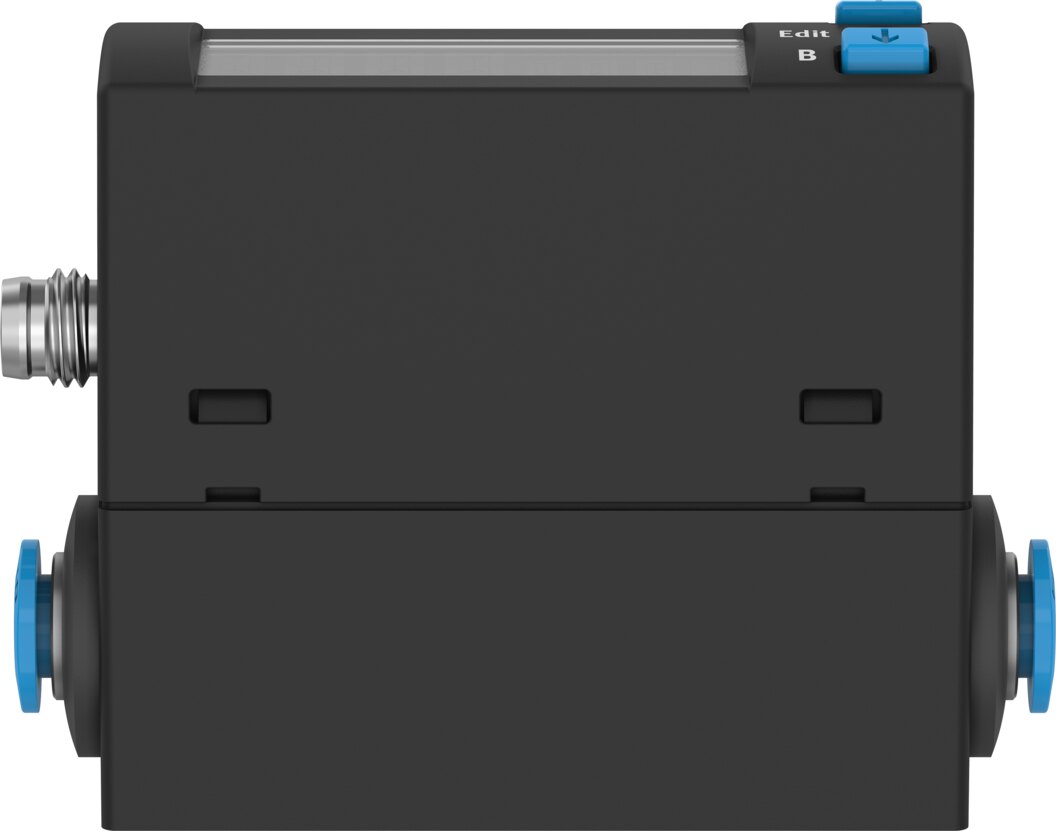

Flow sensor 1 to 50 l/min for compressed air G1/8 IO-Link SFAH-50B-G18FS-PNLK-PNVBA-M8 - Festo 609157

Festo ✓ Original product Brand new

The flow sensor SFAH-50B-G18FS-PNLK-PNVBA-M8 measures flow rate of compressed air within 1 to 50 l/min. For limit values up to 50 l/min there are two switching outputs, PNP or NPN selectable, the measured value is output via analogue output 0 - 10 V, 4 - 20 mA, 1 - 5 V and IO-Link. Operating pressure -0.9 to 10 bar, connection female thread G1/8.

Net
€313.75
excl. VAT
Item FES-609157
Manufacturer no. SFAH-50B-G18FS-PNLK-PNVBA-M8
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo SFAH-50B-G18FS-PNLK-PNVBA-M8 records flow rates from 1 to 50 l/min directly in the line.

Benefits

  • Measuring range 1 to 50 l/min
  • Switching output 2 x PNP or 2 x NPN, switchable, analogue output 0 - 10 V, 4 - 20 mA, 1 - 5 V and IO-Link
  • Operating pressure -0.9 to 10 bar

Applications

Flow direction of the SFAH-50B-G18FS-PNLK-PNVBA-M8: bi-directional. Typical tasks up to 50 l/min include flow monitoring on compressed air consumers and in test rigs.

Technical data

TypeSFAH-50B-G18FS-PNLK-PNVBA-M8
Festo part number609157
Start value for flow rate measuring range1 l/min
End value for flow rate measuring range50 l/min
Flow directionBi-directional
Pneumatic connectionFemale thread G1/8
Switching output2 x PNP or 2 x NPN, switchable
Analogue output0 - 10 V, 4 - 20 mA, 1 - 5 V
ProtocolIO-Link®
Operating pressure-0.9 to 10 bar
Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104
Weight0.115 kg
ManufacturerFesto
Hersteller-NrSFAH-50B-G18FS-PNLK-PNVBA-M8
Zolltarifnummer90262020
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/8
SeriesSFAH
Betriebsdruck max [bar]10
