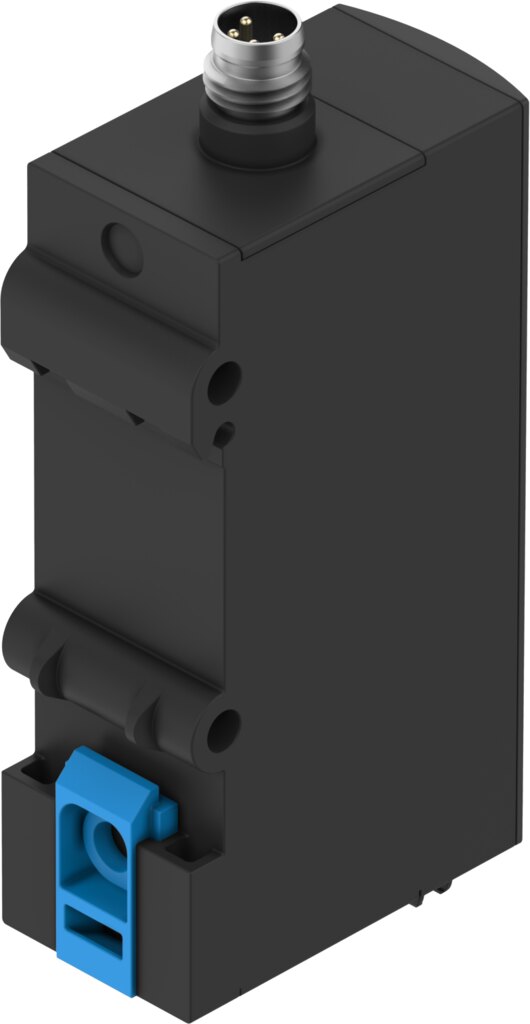

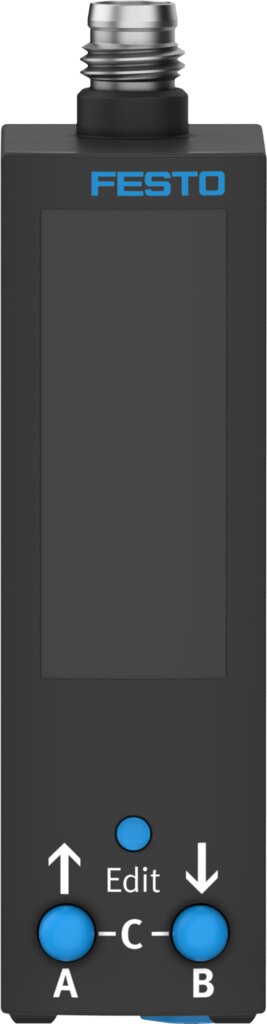

Pressure sensor 0 to 6 bar, 2x PNP, push-in connector QS-4 SDE3-D6S-B-HQ4-2P-M8-G - Festo 561168
The pressure sensor SDE3-D6S-B-HQ4-2P-M8-G detects relative pressure in the range 0 to 6 bar and switches via 2 PNP switching outputs. It connects pneumatically via push-in connector QS-4 and electrically via M8x1 plug (4-pin). Weight according to the price list 155 g, Festo part number 561168.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Measuring range 0 to 6 bar: the Festo pressure sensor SDE3-D6S-B-HQ4-2P-M8-G detects relative pressure and switches via 2 PNP switching outputs.
Benefits
- Measuring range 0 to 6 bar
- Push-in connector QS-4, electrical: M8x1 plug (4-pin)

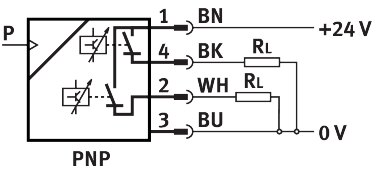

- 2 PNP switching outputs
Application
This allows supply pressure, test pressure and pressure drop on machines to be monitored directly. SDE3-D6S-B-HQ4-2P-M8-G is mounted via through-holes or on a DIN rail.
Technical data
| Type | SDE3-D6S-B-HQ4-2P-M8-G |
|---|---|
| Pressure measuring range initial value | 0 bar |
| Pressure measuring range full scale value | 6 bar |
| Measured variable | Relative pressure |
| Pneumatic connection | QS-4 |
| Type of mounting | With through-hole, with DIN rail |
| Switching output | 2xPNP |
| Electrical connection | M8x1, 4-pin |
| Weight (price list) | 155 g |
| Weight | 0.155 kg |
| Manufacturer | Festo |
| Hersteller-Nr | SDE3-D6S-B-HQ4-2P-M8-G |
| Zolltarifnummer | 90262020 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Measuring range max. [bar] | 6 |
