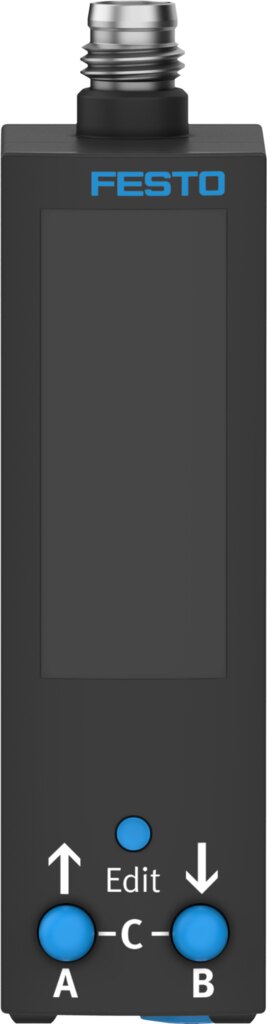

Pressure sensor 0 to 10 bar, 2x NPN, push-in connector QS-4 SDE3-D10S-P-HQ4-2N-M8 - Festo 546225

Festo ✓ Original product Brand new

Designed for pressures of 0 to 10 bar, the pressure sensor SDE3-D10S-P-HQ4-2N-M8 measures relative pressure and switches via 2 NPN switching outputs. It connects pneumatically via push-in connector QS-4 and electrically via M8x1 plug (4-pin).

Net
€163.27
excl. VAT
Item FES-546225
Manufacturer no. SDE3-D10S-P-HQ4-2N-M8
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo pressure sensor SDE3-D10S-P-HQ4-2N-M8 measures relative pressure in the range 0 to 10 bar and switches via 2 NPN switching outputs.

Benefits

  • Measuring range 0 to 10 bar
  • 2 NPN switching outputs
  • Push-in connector QS-4, electrical: M8x1 plug (4-pin)

Application

Typical tasks include monitoring supply and working pressure on machines and in compressed air networks. SDE3-D10S-P-HQ4-2N-M8 is mounted via through-holes or on a DIN rail.

Technical data

TypeSDE3-D10S-P-HQ4-2N-M8
Pressure measuring range initial value0 bar
Pressure measuring range full scale value10 bar
Measured variableRelative pressure
Pneumatic connectionQS-4

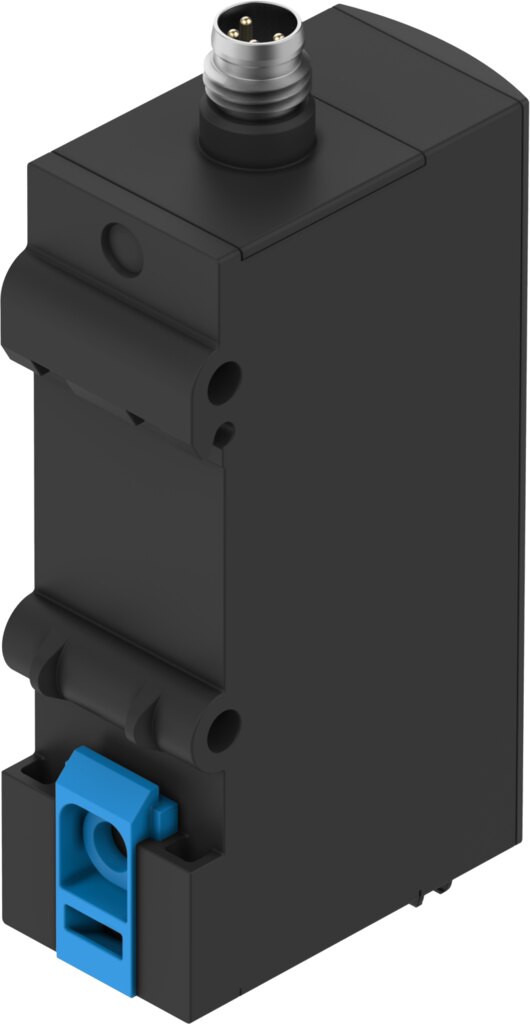

Type of mountingWith through-hole, with DIN rail
Switching output2xNPN
Electrical connectionM8x1, 4-pin
Weight (price list)155 g
Weight0.155 kg
ManufacturerFesto
Hersteller-NrSDE3-D10S-P-HQ4-2N-M8
Zolltarifnummer90262020
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Measuring range max. [bar]10
