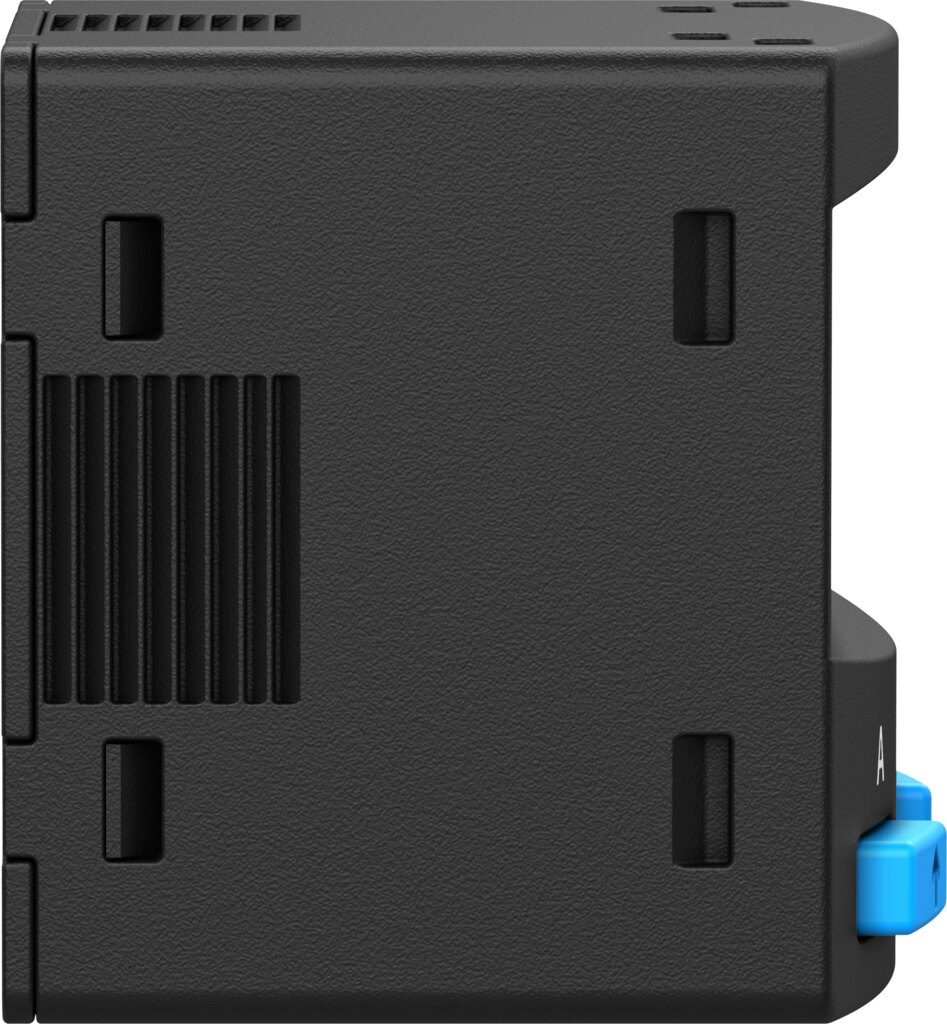

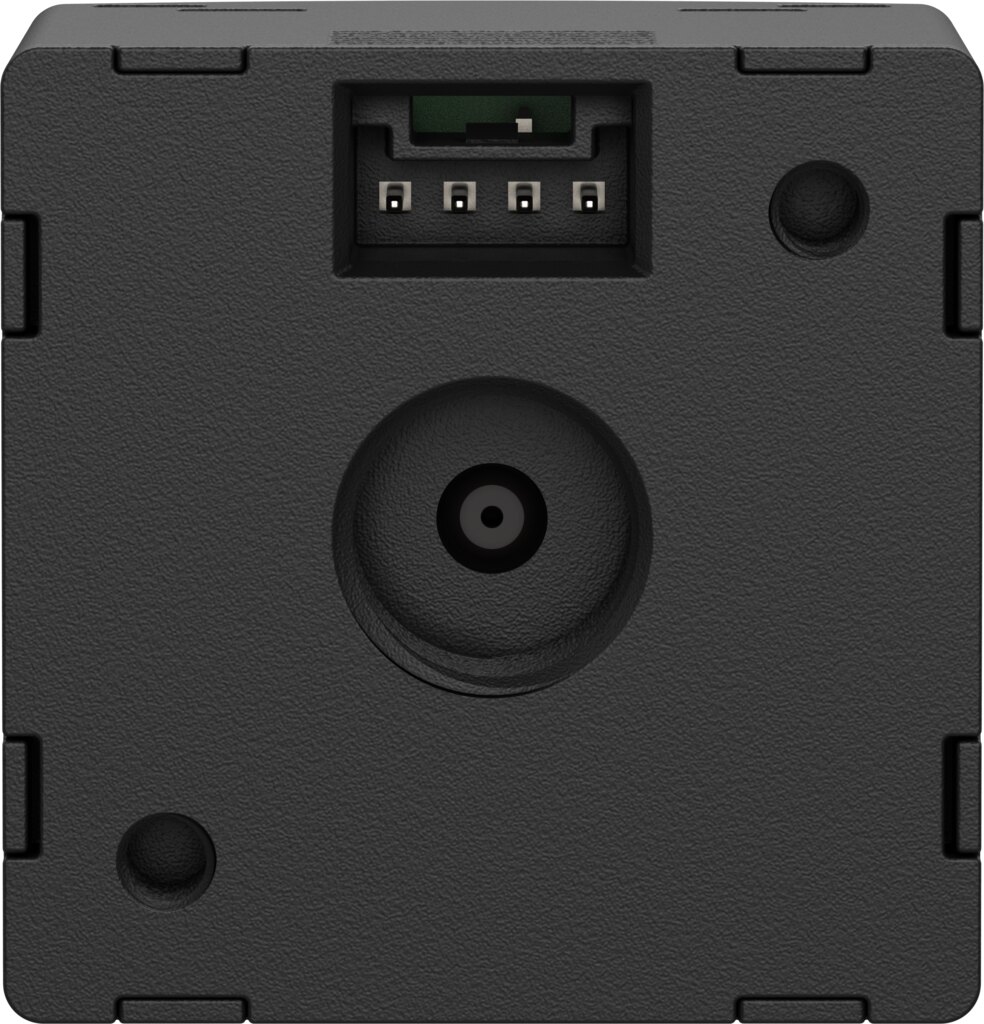

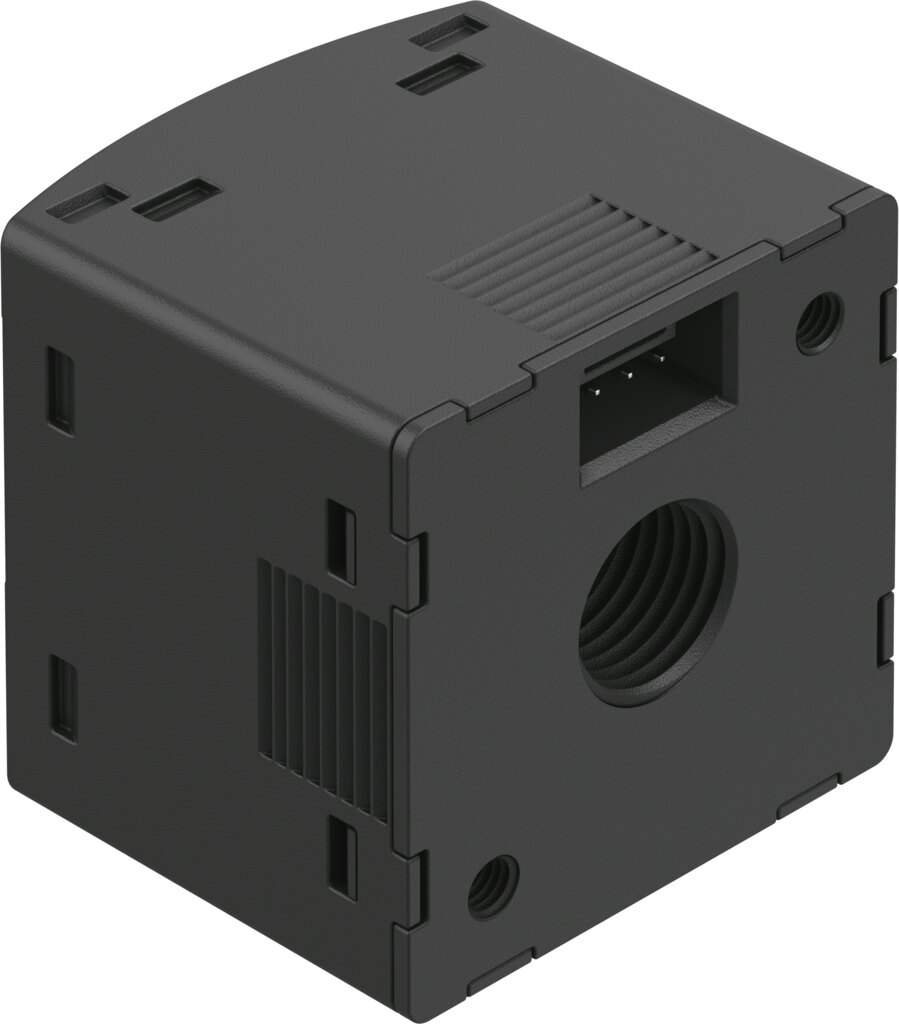

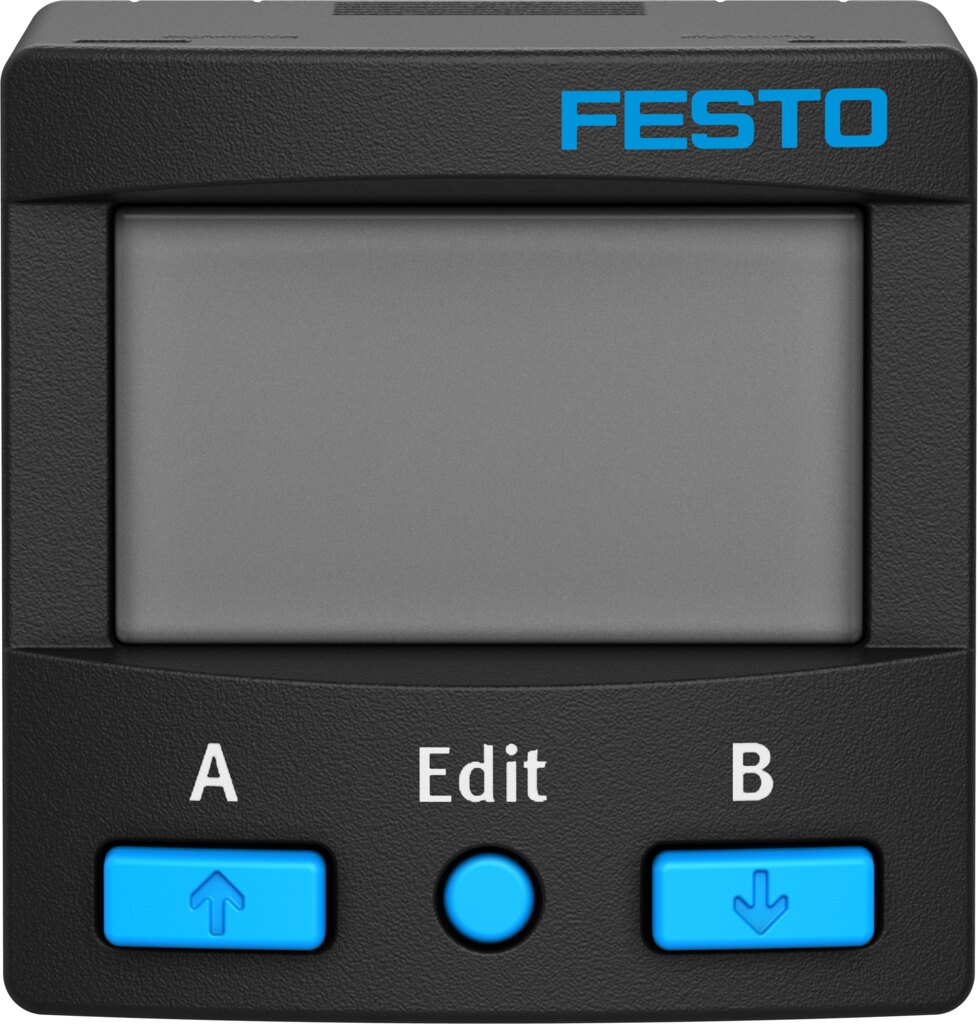

Pressure sensor with IO-Link 4 mm tubing SPAN-P05R-Q4-PNLK-PNVBA-L1-SE007 - Festo 610534

Festo ✓ Original product Brand new

The Festo pressure sensor SPAN-P05R-Q4-PNLK-PNVBA-L1-SE007 monitors pressure in pneumatic systems and switches via two switching outputs, PNP or NPN selectable. Besides the analogue output 0 - 10 V, 4 - 20 mA, 1 - 5 V, IO-Link is available as a digital interface. Pneumatic connection for tubing O.D. 4 mm, electrical connection 4-pin plug.

Net
€108.84
excl. VAT
Item FES-610534
Manufacturer no. SPAN-P05R-Q4-PNLK-PNVBA-L1-SE007
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The SPAN-P05R-Q4-PNLK-PNVBA-L1-SE007 is an electronic Festo pressure sensor with two switching outputs, PNP or NPN selectable.

Benefits

  • Two switching outputs, PNP or NPN selectable
  • Analogue output 0 - 10 V, 4 - 20 mA, 1 - 5 V and IO-Link
  • Pneumatic connection for tubing O.D. 4 mm
  • Electrical connection 4-pin plug

Applications

Order via Festo part number 610534.

Technical data

TypeSPAN-P05R-Q4-PNLK-PNVBA-L1-SE007
Festo part number610534
Pneumatic connectionFor tubing O.D. 4 mm
Switching output2 x PNP or 2 x NPN, switchable
Analogue output0 - 10 V, 4 - 20 mA, 1 - 5 V
ProtocolIO-Link®
Electrical connection 1, connection typePlug
Electrical connection 1, number of connections/cores4
ManufacturerFesto
Hersteller-NrSPAN-P05R-Q4-PNLK-PNVBA-L1-SE007
Zolltarifnummer90330090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesSPAN
