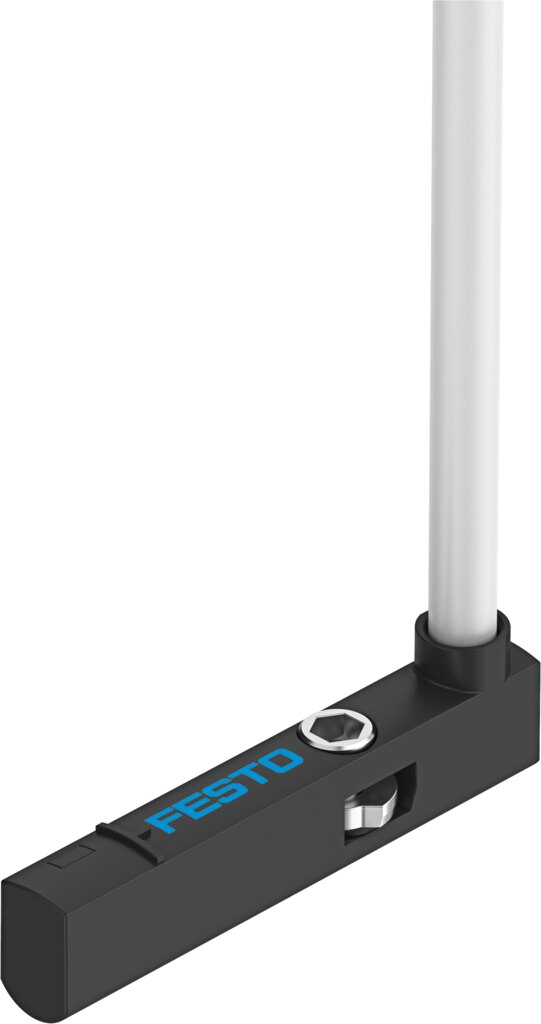

Images are examples, some edited with AI. The technical data are authoritative. AI notice

Proximity switch SDBT-MS-20NL-ZN-E-2.5-LE-EX6 - Festo 8185110

Name: Proximity switch SDBT-MS-20NL-ZN-E-2.5-LE-EX6 - Festo 8185110
Brand: Festo
SKU: FES-8185110
Price: 43.92 EUR
Availability: InStock

Festo ✓ Original product Brand new

Net

€43.92

excl. VAT

Item FES-8185110

Manufacturer no. SDBT-MS-20NL-ZN-E-2.5-LE-EX6

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Technical data

Design	For T-slot
Based on standard	EN 60947-5-6
Approval	RCM, c UL us - Listed (Oil), c UL us - listed (HazLoc)
CE mark (see declaration of conformity)	To EU EMC Directive, To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)	To UK RoHS instructions
Explosion protection	Zone 0 (ATEX), Zone 0 (BR), Zone 0 (CA), Zone 0 (CN), Zone 0 (IEC-EX), Zone 0 (KR), Zone 0 (TW), Zone 0 (UKEX), Zone 0 (US), Zone 1 (ATEX), Zone 2 (ATEX), Zone 20 (ATEX), Zone 20 (BR), Zone 20 (CA), Zone 20 (CN), Zone 20 (IEC-EX), Zone 20 (KR), Zone 20 (TW), Zone 20 (UKEX), Zone 20 (US), Zone 21 (ATEX), Zone 22 (ATEX)
ATEX category gas	II 1G
Explosion ignition protection type for gas	Ex ia IIC T4 ...T6 Ga X
ATEX category dust	II 1D
Explosion ignition protection type for dust	Ex ia IIIC T135°C Da, Zone 20, AEx ia IIIC T135 °C Da
Explosion protection certification outside the EU	EPL Ga (BR), EPL Ga (CA), EPL Ga (CN), EPL Ga (GB), EPL Ga (IEC-EX), EPL Ga (KR), EPL Ga (TW), EPL Ga (US)
Explosion ambient temperature	T6, with fixed cable installation: -40°C <= Ta <= +45°C, T6: -20°C <= Ta <= +45°C
Max. input voltage Ui	28 V
Max. input current Ii	0.25 A
Max. input power Pi	T4: 350 mW, T6: 72 mW
Effective internal inductivity Li	30 µH
Effective internal capacitance Ci	79 nF
Certificate issuing authority	21-AV4BO-0130X, 21-AV4BO-0131X, CSAE 22UKEX1322X, DNV 17.0027 X, IECEx PTZ 18.0008X, ML091200700NZ0, PTZ 16 ATEX 0010 X, UL E232949, UL E539825
Special characteristics	Oil-resistant
Note on materials	RoHS compliant, Free of halogen
Instructions on use	https://www.festo.com/Drive-Sensor-Overview
Measured variable	Position
Measuring principle	Magneto-resistive
Ambient temperature	-40 ... 85 °C
Repetition accuracy	0.2 mm
Switching output	NAMUR
Switching element function	NAMUR
Switch-on time	1 ms
Switch-off time	1 ms
Max. switching frequency	330 Hz
Off-state current	0.4 ... 1 mA
Rated operational voltage DC	8.2 V
Operational voltage range DC	7.5 ... 18 V
Residual ripple	10%
Reverse polarity protection	For all electrical connections
Electrical connection 1, connection type	Cable
Electrical connection 1, connector system	Open end
Electrical connection 1, number of connections/cores	2
Connection outlet orientation	In-line
Test conditions cable	Bending strength: to Festo standard, Test conditions on request
Cable length	2.5 m
Cable characteristic	Suitable for energy chains, Suitable for robot applications
Cable sheath colour	Blue
Material cable sheath	TPE-U(PUR)
Material insulating sheath	PP
Wire ends	Wire ferrule
Type of mounting	Screw-clamped, Insertable in the slot from above
Tightening torque	0.1 ... 0.6 Nm
Max. tightening torque	0.6 Nm
Mounting position	Any
Product weight	28 g
Housing colour	Black
Material housing	Reinforced PA, High-alloy stainless steel
Switching status indication	Yellow LED
Ambient temperature with moving cable	-20 ... 85 °C
Degree of protection	IP65, IP68
LABS (PWIS) conformity	VDMA24364-B2-L
Weight	0.06 kg
Manufacturer	Festo
Hersteller-Nr	SDBT-MS-20NL-ZN-E-2.5-LE-EX6
EAN	4052568631543
Zolltarifnummer	85365019
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
