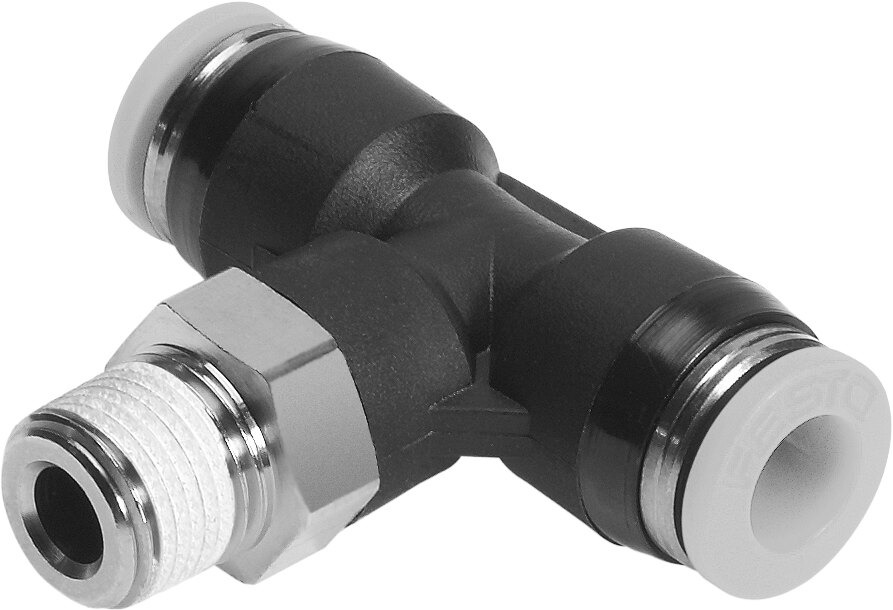

Push-in T-fitting with male thread R1/4 for tubing O.D. 5/16" QBT-1/4-5/16-U-M - Festo 533258

Festo ✓ Original product Brand new

The push-in T-fitting QBT-1/4-5/16-U-M combines male thread R1/4 with a connection for tubing O.D. 5/16". The housing is made of PBT, the nominal width is 5.994 mm and the permitted operating pressure max. 10 bar. Suitable for ambient temperatures of 0 to 60 °C. CRC 1, low corrosion stress.

Net
€5.28
excl. VAT
Item FES-533258
Manufacturer no. QBT-1/4-5/16-U-M
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The push-in T-fitting QBT-1/4-5/16-U-M combines male thread R1/4 with a connection for tubing O. D. 5/16". The nominal width is 5.994 mm and the operating pressure max. 10 bar.

Benefits

  • Male thread R1/4 with sealing coating
  • Connection for tubing O. D. 5/16"
  • Nominal width 5.994 mm
  • Operating pressure max. 10 bar
  • Housing in PBT, corrosion resistance class 1
  • Ambient temperature 0 to 60 °C

Applications

The QBT-1/4-5/16-U-M suits systems with inch tubing (O. D. 5/16") and connects via male thread R1/4 to valves, cylinders or service units.

Technical data

FeatureValue
TypeQBT-1/4-5/16-U-M
Festo part number533258
Sizestandard
Nominal width5.994 mm
Seal type on screw-in studcoating
DesignT-shape
Operating pressure, full temperature rangemax. 10 bar
Maritime classificationsee certificate
Operating mediumcompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumlubricated operation possible
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Ambient temperature0 to 60 °C
Product weight23.899 g
Mounting typeexternal hex A/F 14
Pneumatic connection 1male thread R1/4
Pneumatic connection 2for tubing O. D. 5/16"
Release ring colourgrey
Material noteRoHS compliant
Housing materialPBT
Thread seal materialNBR
Release ring materialPOM
Tubing clamp segment materialhigh-alloy stainless steel
ManufacturerFesto
Hersteller-NrQBT-1/4-5/16-U-M
EAN4052568340834
Zolltarifnummer74122000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialPBT
ThreadR 1/4
Seal materialNBR
MediumCompressed air
Thread typeExternal thread
Schlüsselweite [mm]14
Betriebsdruck max [bar]10
Pneumatic connectionR1/4
Temperaturbereich0-60 °C
Temperature (max.)60
