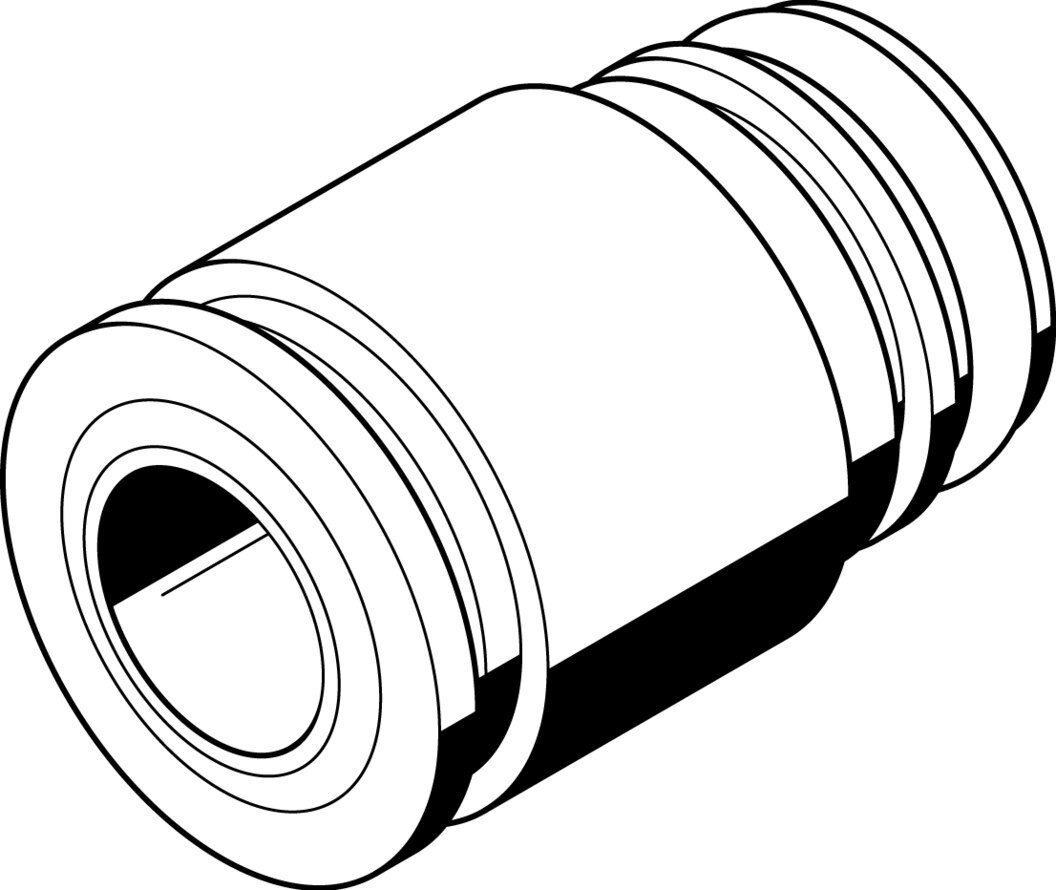

Cartridge 14 mm for tubing OD 5/16" QSP14-5/16-U - Festo 172986
QSP14-5/16-U is a cartridge for 14 mm seats into which tubing with an OD of 5/16" is pushed directly. The QSP14-5/16-U is rated for -0.95 to 10 bar operating pressure and -5 to 60 °C ambient temperature. The tube is pushed in and released again via the release ring.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
QSP14-5/16-U is a cartridge for 14 mm seats into which tubing with an OD of 5/16" is pushed directly. The QSP14-5/16-U is rated for -0.95 to 10 bar operating pressure and -5 to 60 °C ambient temperature.
Benefits
- From vacuum up to 10 bar operating pressure -0.95 to 10 bar across the full temperature range
- LABS (PWIS) conformity to VDMA24364-B1/B2-L
- Ambient temperature -5 to 60 °C
- Push-pull principle push the tube in, press the grey release ring to remove it
- Tubing seal made of NBR
Applications
QSP14-5/16-U is intended for valves, valve terminals and devices with a cartridge seat. Approved medium for the QSP14-5/16-U: compressed air to ISO 8573-1:2010 [7:-:-], lubricated operation possible.
Technical data
| Feature | Value |
|---|---|
| Type | QSP14-5/16-U |
| Festo part number | 172986 |
| Size | Standard |
| Mounting position | Any |
| Design | Straight |
| Construction | Push-pull principle |
| Operating pressure, full temperature range | -0.95 to 10 bar |
| Maritime classification | See certificate |
| Operating medium | compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -5 to 60 °C |
| Product weight | 8.5 g |
| Mounting type | Mounting pin |
| Pneumatic connection 1 | Cartridge 14 mm |
| Pneumatic connection 2 | For tubing OD 5/16" |
| Release ring colour | Grey |
| Material note | RoHS compliant |
| Housing material | Nickel-plated |
| Release ring material | POM |
| Tubing seal material | NBR |
| Tubing clamp segment material | High-alloy stainless steel |
| Weight | 0.009 kg |
| Manufacturer | Festo |
| Hersteller-Nr | QSP14-5/16-U |
| EAN | 4052568313067 |
| Zolltarifnummer | 74122000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Bauform | gerade Form |
| Size BG | Standard |
| Seal material | NBR |
| Medium | Compressed air |
| Betriebsdruck max [bar] | 10 |
| Temperaturbereich | -5-60 °C |
| Temperature (max.) | 60 |
