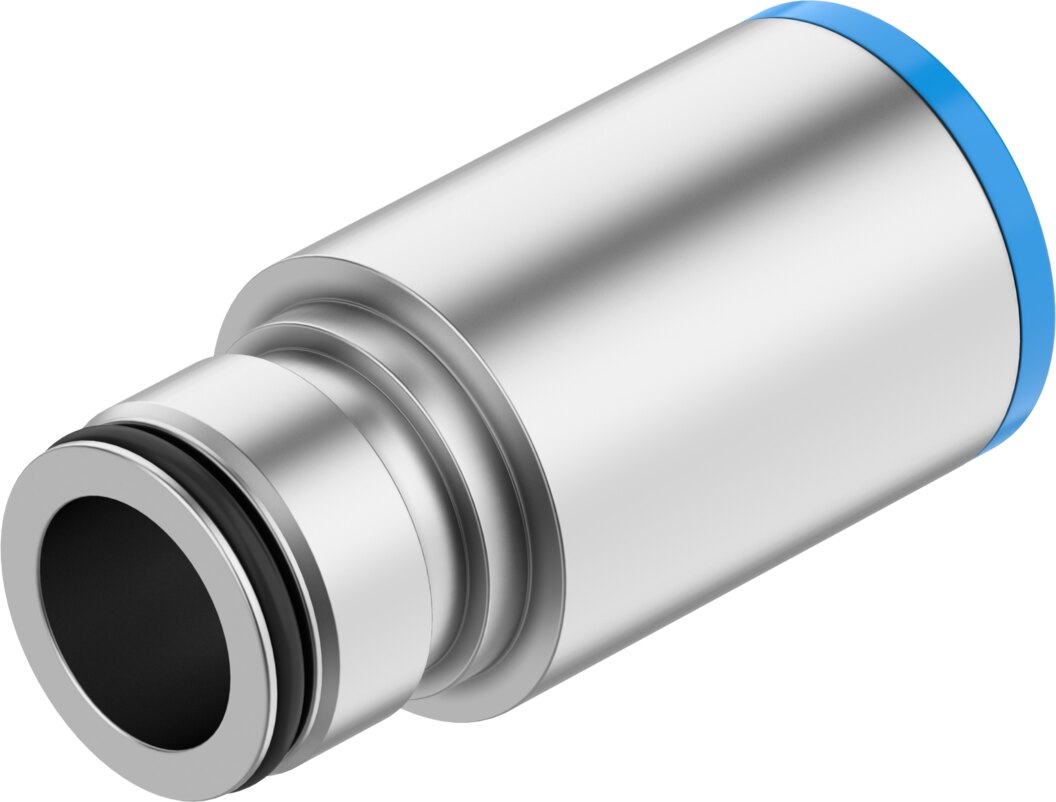

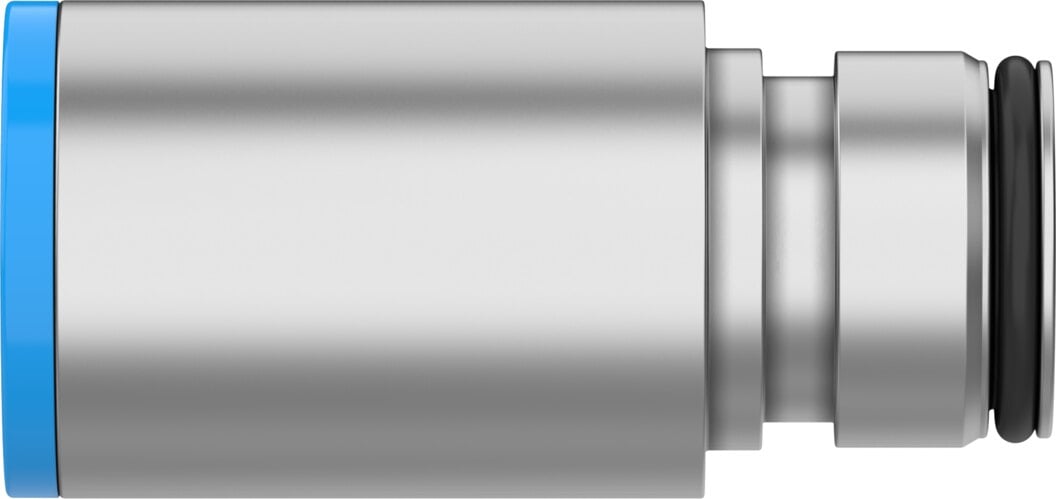

Cartridge 15 mm for tubing OD 14 mm NPQX-D-PC15-Q14-P2 - Festo 8225233
NPQX-D-PC15-Q14-P2 is a cartridge for 15 mm seats into which tubing with an OD of 14 mm is pushed directly. The NPQX-D-PC15-Q14-P2 is rated for -0.95 to 10 bar operating pressure and -5 to 60 °C ambient temperature.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
NPQX-D-PC15-Q14-P2 is a cartridge for 15 mm seats into which tubing with an OD of 14 mm is pushed directly. The NPQX-D-PC15-Q14-P2 is rated for -0.95 to 10 bar operating pressure and -5 to 60 °C ambient temperature.
Benefits
- From vacuum up to 10 bar operating pressure -0.95 to 10 bar across the full temperature range
- Nominal width 10 mm
- Ambient temperature -5 to 60 °C
- Push-pull principle push the tube in, press the blue release ring to remove it
- Housing made of high-alloy steelcorrosion resistance class CRC 2
- Tubing seal made of HNBR
Applications
NPQX-D-PC15-Q14-P2 is intended for valves, valve terminals and devices with a cartridge seat. Approved medium for the NPQX-D-PC15-Q14-P2: compressed air to ISO 8573-1:2010 [7:4:4], inert gases, lubricated operation possible..
Technical data
| Feature | Value |
|---|---|
| Type | NPQX-D-PC15-Q14-P2 |
| Festo part number | 8225233 |
| Size | Standard |
| Nominal width | 10 mm |
| Tubing insertion depth | 25.4 mm |
| Seal type on screw-in stud | O-ring |
| Mounting position | Any |
| Design | Straight |
| Construction | Push-pull principle |
| Operating pressure | -0.95 to 10 bar |
| Operating pressure, full temperature range | -0.95 to 10 bar |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4], inert gases |
| Note on operating and pilot medium | Lubricated operation possible (required for further operation) |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-C1-L |
| Ambient temperature | -5 to 60 °C |
| Product weight | 25.8 g |
| Mounting type | With retaining clip |
| Pneumatic connection 1 | Cartridge 15 mm |
| Pneumatic connection 2 | For tubing OD 14 mm |
| Release ring colour | Blue |
| Material note | RoHS compliant |
| Housing material | High-alloy steel |
| Release ring material | Reinforced PA |
| O-ring material | HNBR |
| Tubing seal material | HNBR |
| Tubing clamp segment material | High-alloy stainless steel |
| Weight | 0.028 kg |
| Manufacturer | Festo |
| Hersteller-Nr | NPQX-D-PC15-Q14-P2 |
| EAN | 4052568789930 |
| Zolltarifnummer | 73072980 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Bauform | gerade Form |
| For hose OD [mm] | 14 |
| Nominal size DN [mm] | 10 |
| Size BG | Standard |
| Seal material | HNBR |
| Medium | Compressed air |
| Betriebsdruck max [bar] | 10 |
| Temperaturbereich | -5-60 °C |
| Temperature (max.) | 60 |
