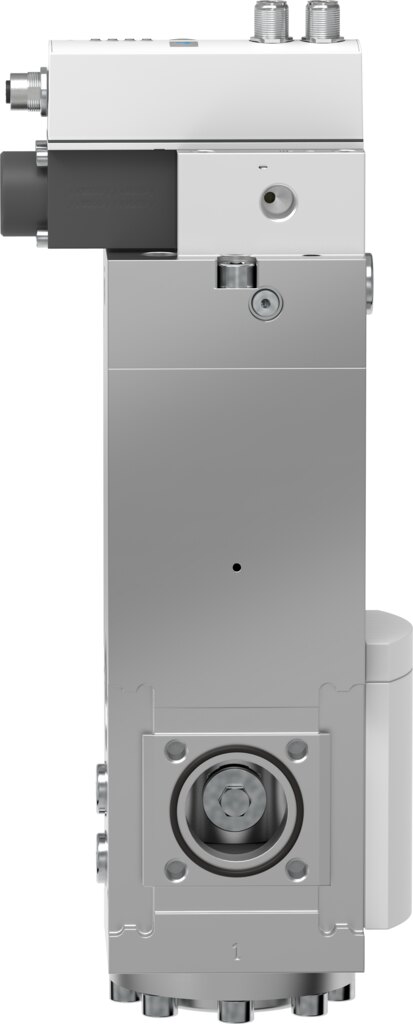

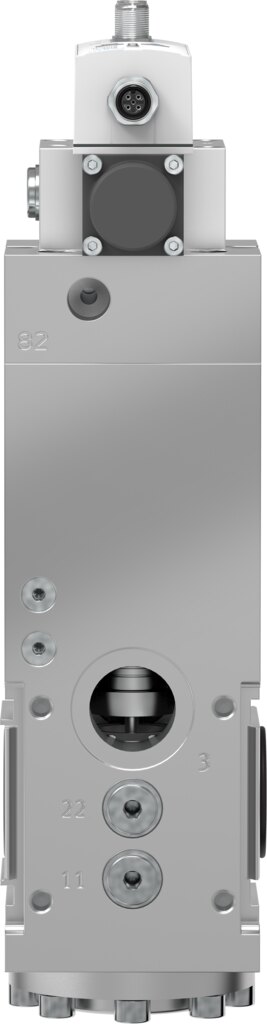

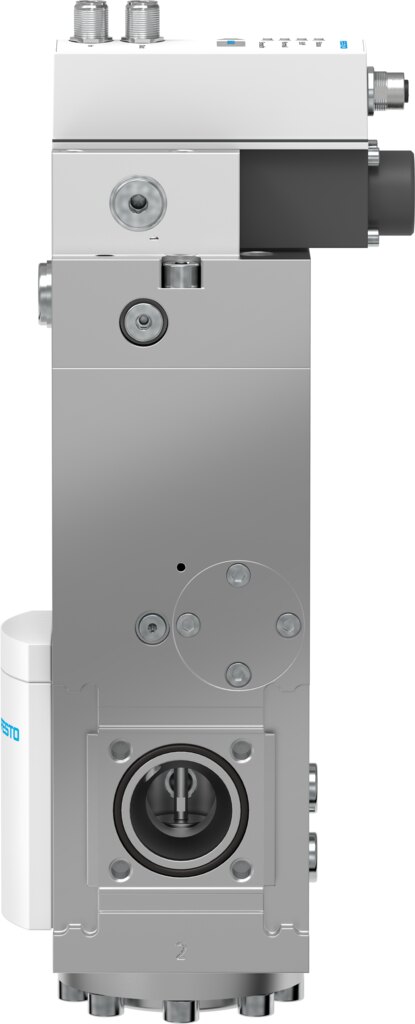

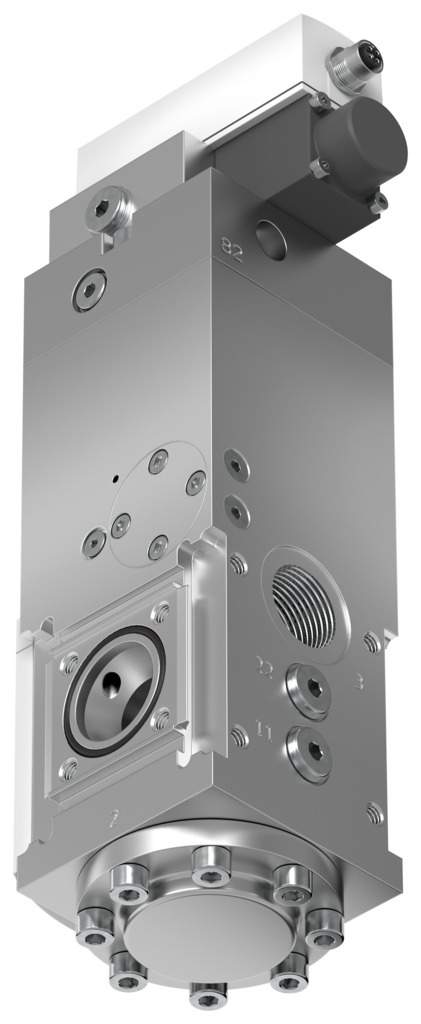

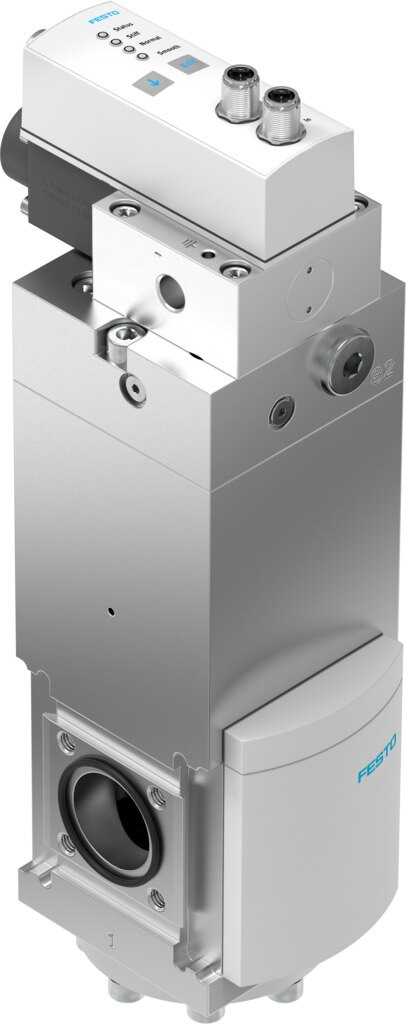

Electrical pressure regulator 0.6 to 40 bar, G1, setpoint 0-10 V PREL-90-HP3-A4-A-40CFX-S2-3 - Festo 1709133

Festo ✓ Original product Brand new

The electrical pressure regulator PREL-90-HP3-A4-A-40CFX-S2-3 controls the output pressure within 0.6 to 40 bar according to an analogue setpoint of 0 - 10 V. Setpoint via analogue signal 0 - 10 V, actual value output 4 - 20 mA.

Net
€6,672.33
excl. VAT
Item FES-1709133
Manufacturer no. PREL-90-HP3-A4-A-40CFX-S2-3
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Using an analogue 0 - 10 V signal, the electrical pressure regulator PREL-90-HP3-A4-A-40CFX-S2-3 sets the output pressure within 0.6 to 40 bar. Operating pressure 0 to 50 bar, plus PWIS (LABS) conformity to VDMA24364 zone III.

Benefits

  • Setpoint via analogue signal 0 - 10 V, actual value output 4 - 20 mA.
  • Supply pressure compensation keeps the output stable.
  • Nominal width DN 24.
  • Secondary exhaust relieves excess output pressure.
  • Electrical connection plug connector, M12, 5-pin, A-coded.

Applications

Used when the pressure is to be set by the controller, for example for changing contact pressures or recipes. G1 connection. Permitted medium for the PREL-90-HP3-A4-A-40CFX-S2-3: compressed air to ISO 8573-1:2010 [7:4:4], inert gases.

Technical data

TypePREL-90-HP3-A4-A-40CFX-S2-3
Festo part number1709133
Size90
Nominal width DN24
SeriesL
Mounting positionVertical
Type of actuationElectrical
DesignElectrically adjustable pressure regulator
Regulator functionConstant output pressure, with supply pressure compensation, with secondary exhaust
Operating pressure0 to 50 bar
Pressure regulation range0.6 to 40 bar
Nominal operating voltage DC24 V
Signal range, analogue output4 - 20 mA
Signal range, analogue input0 - 10 V
Setpoint/actual valuesCurrent type 4-20 mA
ApprovalSpecial Equipment Type Test Certification
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], inert gases
Corrosion resistance class CRC2 - moderate corrosion stress
PWIS (LABS) conformityVDMA24364-Zone III
Storage temperature-10 to 60 °C
Food suitabilitySee extended material information
Medium temperature5 to 50 °C
Ambient temperature5 to 50 °C
Product weight6100 g
Electrical connection INPlug connector, M12, 5-pin, A-coded
Electrical connection OUTPlug connector, M12, 5-pin, A-coded
Mounting typeOn service unit, with accessories
Pneumatic connection, port 1G1
Pneumatic connection, port 11G1/4
Pneumatic connection, port 2G1
Pneumatic connection, port 22G1/4
Pneumatic connection, port 3G1
Pneumatic connection, port 82G3/8
Note on materialsRoHS compliant
Bottom cover materialAnodised aluminium
Spring materialSpring steel
Housing materialAnodised aluminium
Weight7 kg
ManufacturerFesto
Hersteller-NrPREL-90-HP3-A4-A-40CFX-S2-3
EAN4052568290894
Zolltarifnummer84811099
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1
Nominal size DN [mm]24
MediumCompressed air, neutral gases
Actuation typeElectrical
Druckregelbereich [bar]0,6 bis 40
Medientemperatur [°C]5 bis 50
Operating voltage24 V DC
Betriebsdruck max [bar]50
Pneumatic connectionG1
Temperature (max.)50
