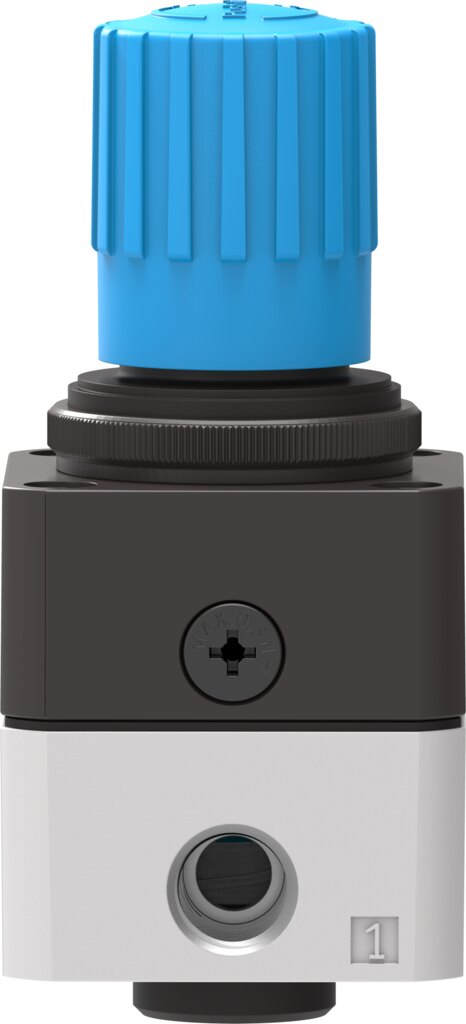

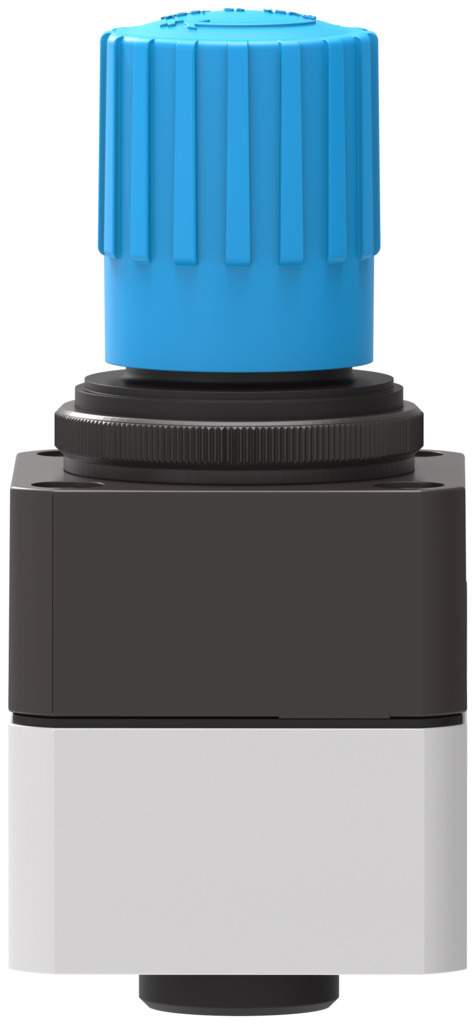

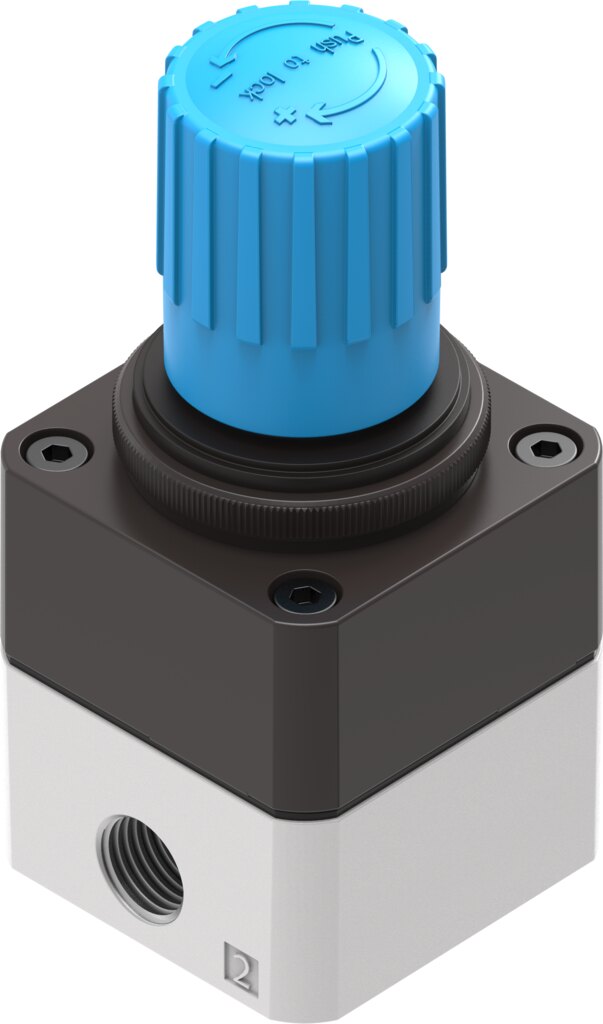

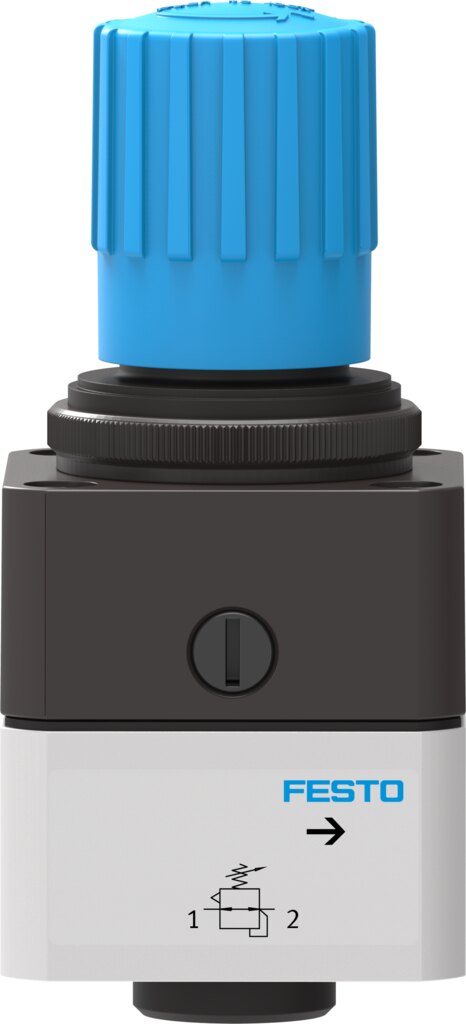

Precision pressure regulator 0.05 to 2.5 bar, G1/4 LRP-1/4-2.5-F1A - Festo 8196141
With the precision pressure regulator LRP-1/4-2.5-F1A you set the output pressure within 0.05 to 2.5 bar and keep it constant. Suitable for battery production with reduced Cu/Zn/Ni values (F1a). Max. pressure hysteresis 0.02 bar for precise control.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The precision pressure regulator LRP-1/4-2.5-F1A keeps the output pressure constant, adjustable within 0.05 to 2.5 bar. Also relevant for selection: operating pressure 1 to 12 bar and gauge port G1/8 prepared.
Benefits
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a).
- Max. pressure hysteresis 0.02 bar for precise control.
- Flow rate 1800 l/min (standard nominal flow).
- Input pressure 1 to 12 bar.
- Secondary exhaust relieves excess output pressure.
Applications
Precision regulators such as the LRP-1/4-2.5-F1A are used where small pressure fluctuations affect the result, for example on test stands, measuring equipment and blow-off applications. Lubricated operation is not permitted. Permitted medium for the LRP-1/4-2.5-F1A: compressed air to ISO 8573-1:2010 [7:4:4], inert gases.
Technical data
| Type | LRP-1/4-2.5-F1A |
|---|---|
| Festo part number | 8196141 |
| Actuator lock | Rotary knob with detent |
| Mounting position | Any |
| Design | Piloted precision diaphragm regulator |
| Regulator function | Constant output pressure, with secondary exhaust |
| Pressure indication | Prepared for G1/8 gauge |
| Operating pressure | 1 to 12 bar |
| Pressure regulation range | 0.05 to 2.5 bar |
| Input pressure 1 | 1 to 12 bar |
| Max. pressure hysteresis | 0.02 bar |
| Standard nominal flow rate (to DIN 1343) | 1800 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], inert gases |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| PWIS (LABS) conformity | VDMA24364-B1/B2-L |
| Suitability for Li-ion battery production | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Medium temperature | -10 to 60 °C |
| Ambient temperature | -10 to 60 °C |
| Product weight | 310 g |
| Mounting type | With accessories |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/4 |
| Note on materials | RoHS compliant |
| Seals material | NBR |
| Housing material | Aluminium |
| Weight | 0.32 kg |
| Manufacturer | Festo |
| Hersteller-Nr | LRP-1/4-2.5-F1A |
| EAN | 4052568636975 |
| Zolltarifnummer | 84811099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/4 |
| Control range max. [bar] | 2,5 |
| Seal material | NBR |
| Medium | Compressed air, neutral gases |
| Inlet pressure max. [bar] | 12 |
| Flow rate [l/min] | 1800 |
| Druckregelbereich [bar] | 0,05 bis 2,5 |
| Medientemperatur [°C] | -10 bis 60 |
| Series | LRP |
| Betriebsdruck max [bar] | 12 |
| Pneumatic connection | G1/4 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
