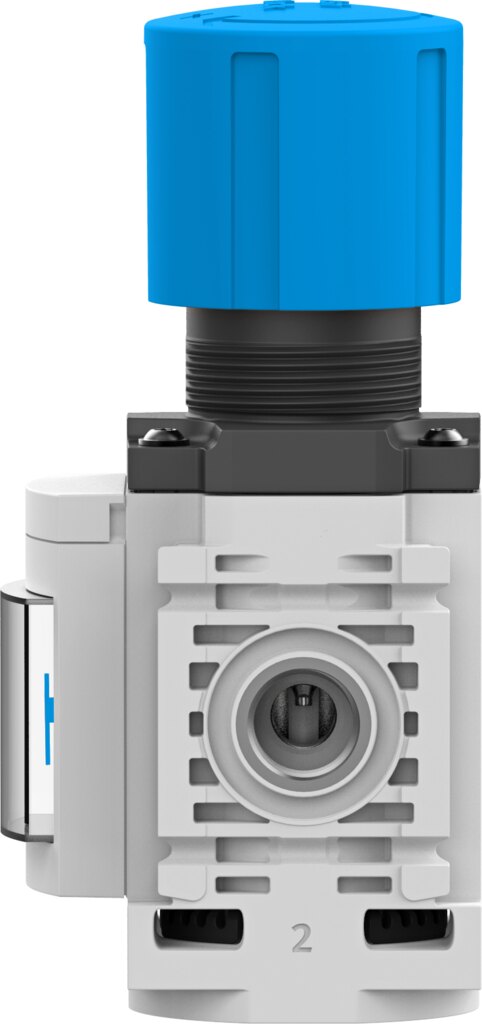

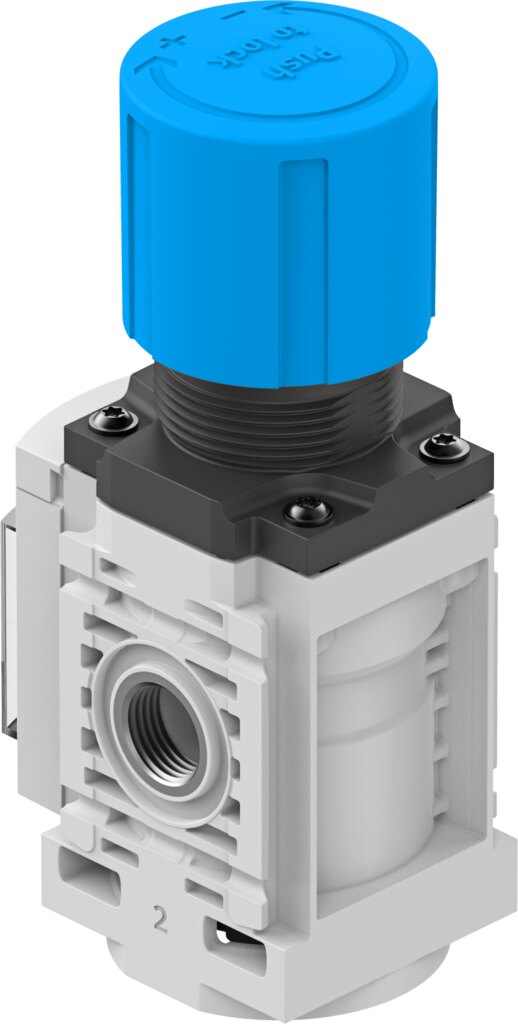

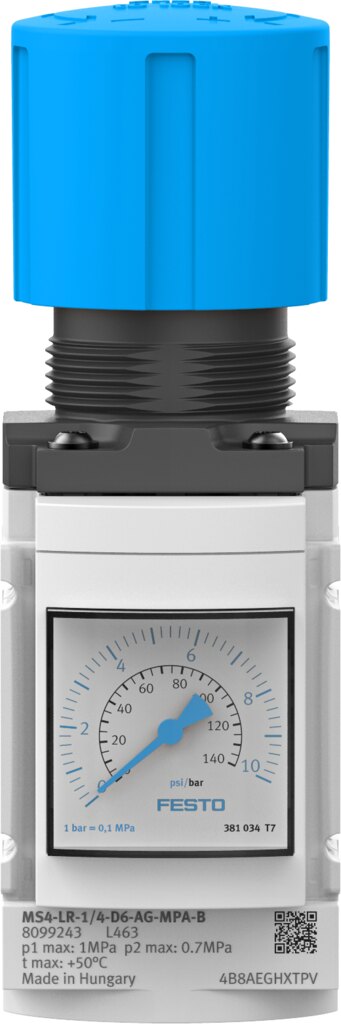

Pressure regulator MS4-LR-1/4-D6-AG-BAR-F1A-B - Festo 8175241
Net
excl. VAT
€53.70
Item
FES-8175241
Manufacturer no.
MS4-LR-1/4-D6-AG-BAR-F1A-B
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size | 4 |
|---|---|
| Series | MS |
| Actuator lock | Rotary knob with detent |
| Mounting position | Any |
| Design | Directly actuated piston regulator |
| Controller function | Output pressure constant, With secondary exhausting, With return flow function |
| Displayable units | bar, psi |
| Pressure gauge (ANALOG) or Pressure display (DIGITAL) | With pressure gauge |
| Operating pressure | 1 ... 10 bar |
| Pressure regulation range | 0.3 ... 7 bar |
| Max. pressure hysteresis | 0.5 bar |
| Standard nominal flow rate (standardised to DIN 1343) | 1800 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 7 according to ISO 14644-1 |
| Storage temperature | -5 ... 50 °C |
| Media temperature | -5 ... 50 °C |
| Ambient temperature | -5 ... 50 °C |
| Product weight | 165 g |
| Type of mounting | With accessories |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/4 |
| Note on materials | RoHS compliant |
| Material underneath cover | PA |
| Material seals | NBR |
| Material rotary knob | POM |
| Material spring | High-alloy stainless steel |
| Material housing | Reinforced PA |
| Material valve stem | POM |
| Weight | 0.2 kg |
| Manufacturer | Festo |
| Hersteller-Nr | MS4-LR-1/4-D6-AG-BAR-F1A-B |
| EAN | 4052568612825 |
| Zolltarifnummer | 84811099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
