Pressure regulator G1/4, 0.3 to 4 bar MS4-LR-1/4-D5-A8 - Festo 578556

Festo ✓ Original product Brand new

The pressure regulator MS4-LR-1/4-D5-A8 keeps the output pressure constant even when the supply pressure fluctuates, regulation range 0.3 to 4 bar. Key data: 2100 l/min standard nominal flow rate and G1/4 ports. Pressure indicator: prepared for G1/8.

Net
€37.42
excl. VAT
Item FES-578556
Manufacturer no. MS4-LR-1/4-D5-A8
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

For a stable working pressure: the MS4-LR-1/4-D5-A8 keeps the output pressure constant even when the supply pressure fluctuates and covers 0.3 to 4 bar. Standard nominal flow rate is 2100 l/min, operating pressure 0.8 to 14 bar.

Benefits

  • 2100 l/min standard nominal flow rate to DIN 1343
  • Pressure regulation range 0.3 to 4 bar, hysteresis max. 0.25 bar
  • Operating pressure 0.8 to 14 bar
  • Media temperature -10 to 60 °C
  • Corrosion resistance class CRC 2

Applications

The MS4-LR-1/4-D5-A8 supplies cylinders, valves and tools with exactly the pressure the process needs. Permissible media temperature -10 to 60 °C. Mounting of the MS4-LR-1/4-D5-A8: with accessories.

Technical data

TypeMS4-LR-1/4-D5-A8
Festo part number578556
Size4
SeriesMS
Actuator lockRotary knob with detent
Mounting positionAny
DesignDirectly actuated diaphragm regulator

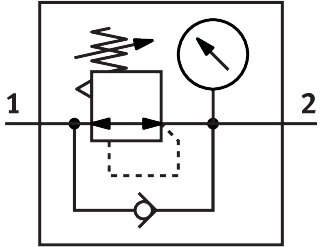

Controller functionOutput pressure constant, with secondary exhausting, with return flow function
Pressure indicatorPrepared for G1/8
Operating pressure0.8 to 14 bar
Pressure regulation range0.3 to 4 bar
Maximum pressure hysteresis0.25 bar
Standard nominal flow rate (standardised to DIN 1343)2100 l/min
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], inert gas
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-10 to 60 °C
Suitable for use with foodSee supplementary material information
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Product weight225 g
Type of mountingWith accessories
Pneumatic connection, port 1G1/4
Pneumatic connection, port 2G1/4
Note on materialsRoHS compliant
Material sub-baseDie-cast aluminium
Material control panelPA, POM
Material sealsNBR
Material housingDie-cast aluminium
Material membraneNBR
Weight0.26 kg
ManufacturerFesto
Hersteller-NrMS4-LR-1/4-D5-A8
EAN4052568384548
Zolltarifnummer84811099
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/4
Size BG4
Control range max. [bar]4
Seal materialNBR
Housing materialDie-cast aluminium
MediumCompressed air, neutral gases
Flow rate [l/min]2100
Betriebsdruck max [bar]14
Pneumatic connectionG1/4
Temperaturbereich-10-60 °C
Temperature (max.)60
