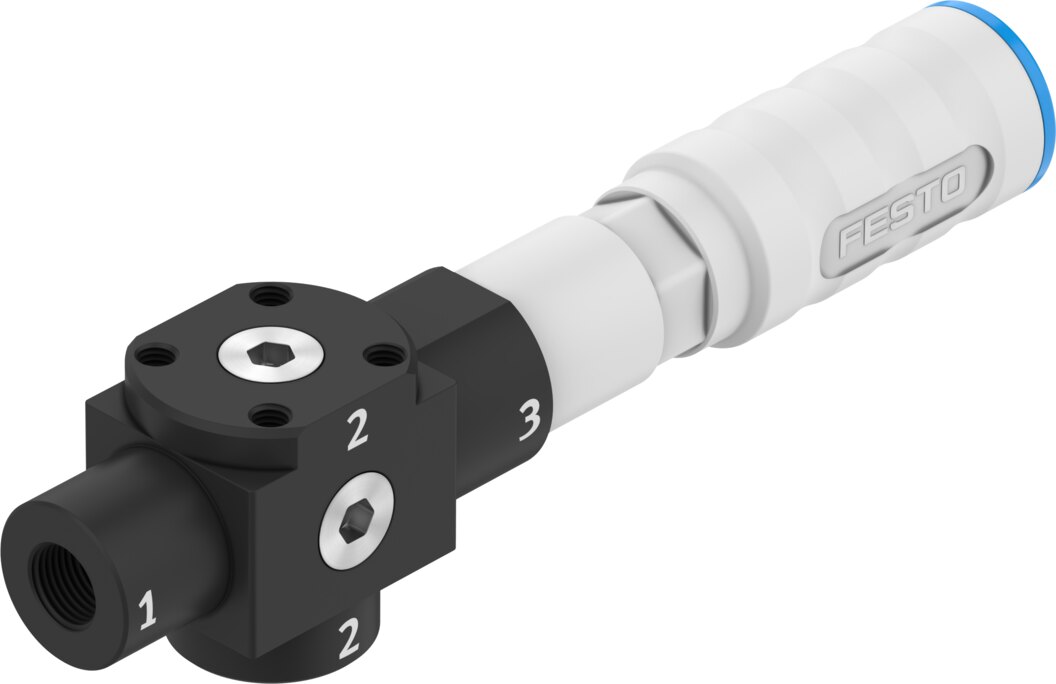

2-stage vacuum generator Laval nozzle 1.4 mm 160 l/min OVPN-14-L2-PG14-G12-UA - Festo 8199142
Up to 81 % vacuum and 160 l/min suction flow against atmosphere: that is what the vacuum generator OVPN-14-L2-PG14-G12-UA delivers from compressed air. Connections are G1/4 for compressed air and G1/2 for vacuum, at 1 to 8 bar operating pressure. Suitable for battery production with reduced Cu/Zn/Ni values (F1a).
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The vacuum generator OVPN-14-L2-PG14-G12-UA works with a 1.4 mm Laval nozzle and requires 1 to 8 bar operating pressure, nominal 6 bar. Ejector characteristic: high suction rate.
Benefits
- Vacuum up to 81 %, reached at 7.9 bar operating pressure
- Suction flow up to 160 l/min against atmosphere, at 4 bar operating pressure
- Clean production: suitable for battery production (F1a), LABS (PWIS) conformity VDMA24364-B1/B2-L
- Product weight 205 g, grid dimension 33 mm
- Corrosion resistance class 2 - Moderate corrosion stress
- Release time 0.37 s at nominal operating pressure 6 bar
Applications
The high suction flow helps with porous or air-permeable parts such as cardboard, wood or textiles and with large suction cup volumes. Type of mounting: with mounting bracket. Lubricated operation is not possible.
Technical data
| Nominal size, Laval nozzle | 1.4 mm |
|---|---|
| Grid dimension | 33 mm |
| Silencer design | Open |
| Mounting position | Any |
| Ejector characteristic | High suction rate |
| Integrated function | Open silencer |
| Design | 2-stage vacuum generator |
| Operating pressure for maximum suction flow rate | 4 bar |
| Operating pressure | 1 to 8 bar |
| Operating pressure for maximum vacuum | 7.9 bar |
| Maximum vacuum | 81 % |
| Nominal operating pressure | 6 bar |
| Maximum suction flow rate against atmosphere | 160 l/min |
| Release time at nominal operating pressure | 0.37 s |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Media temperature | 0 to 60 °C |
| Recommended cleaning agent | Soapy water (except silencer) |
| Sound pressure level at nominal operating pressure | 60 dB(A) |
| Ambient temperature | 0 to 60 °C |
| Product weight | 205 g |

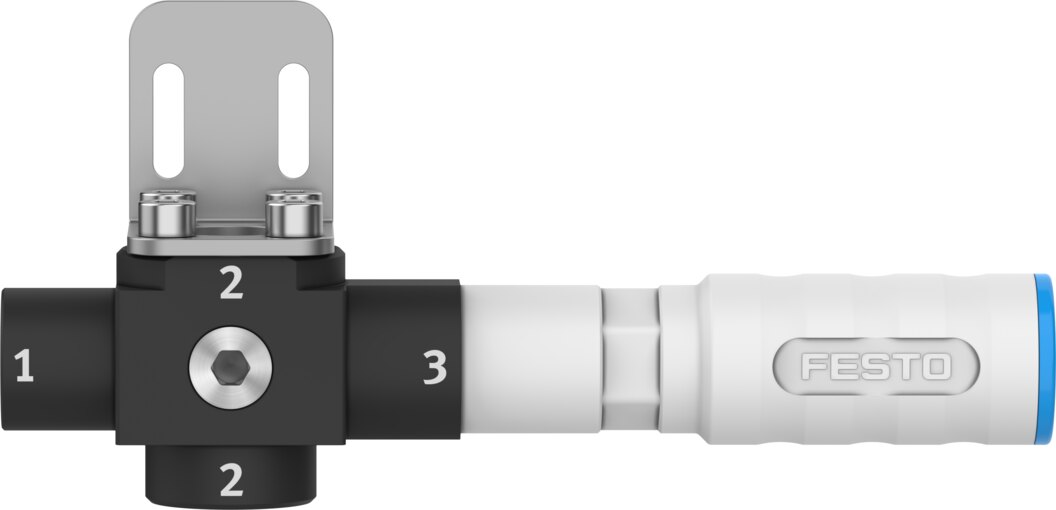

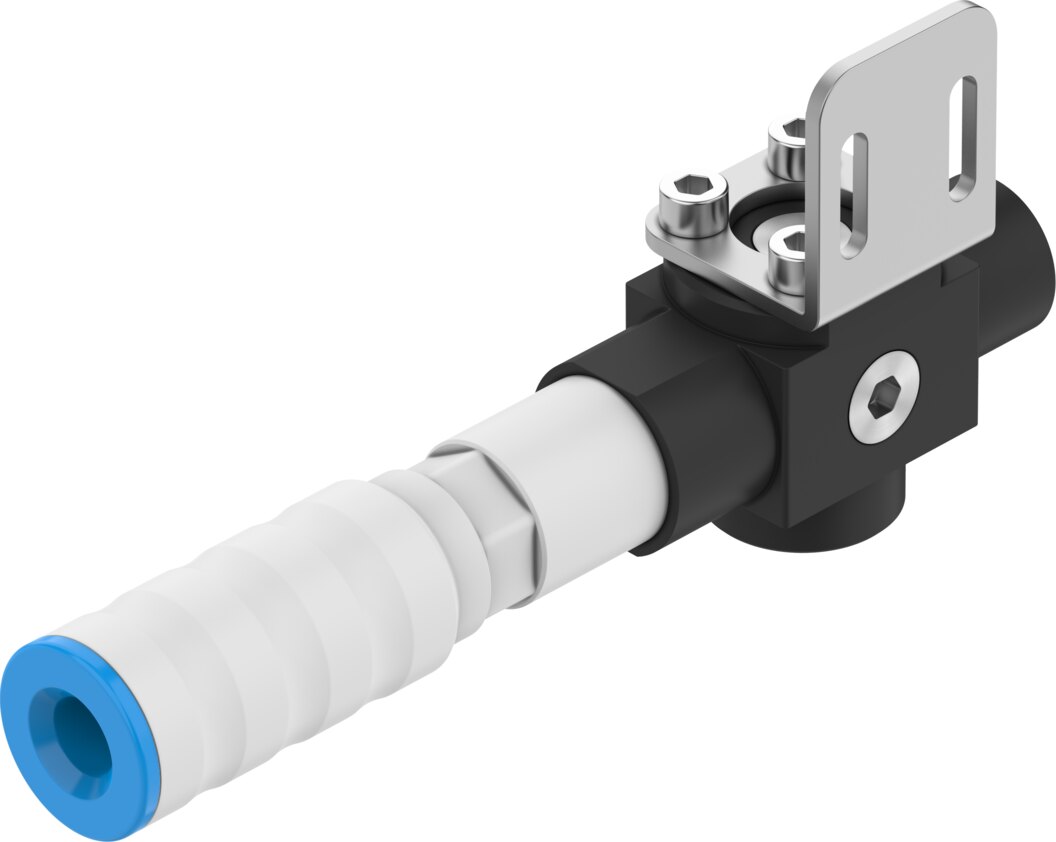

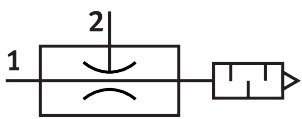

| Type of mounting | With mounting bracket |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 3 | Open silencer |
| Vacuum connection | G1/2 |
| Material connecting thread | POM |
| Material seals | NBR |
| Material receiver nozzle | Reinforced PA |
| Material housing | POM |
| Material silencer | Reinforced PA, Polyurethane foam |
| Material screws | High-alloy stainless steel |
| Material transmitter nozzle | Reinforced PA |
| Weight | 0.28 kg |
| Manufacturer | Festo |
| Hersteller-Nr | OVPN-14-L2-PG14-G12-UA |
| EAN | 4052568661120 |
| Zolltarifnummer | 84141089 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/4 |
| Nominal size DN [mm] | 1,4 |
| Seal material | NBR |
| Medium | Compressed air |
| Flow rate [l/min] | 160 |
| Betriebsdruck max [bar] | 8 |
| Pneumatic connection | G1/4 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
