Vacuum generator with switch-on valve and vacuum switch Laval nozzle 0.7 mm vacuum 93 % OVEM-07-H-B-QO-CE-N-1PD - Festo 8037698

Festo ✓ Original product Brand new

Up to 93 % vacuum and 16 l/min suction flow against atmosphere: that is what the vacuum generator OVEM-07-H-B-QO-CE-N-1PD delivers from compressed air. Integrated functions: electric ejector pulse valve, flow control, electric switch-on valve, filter and electric air-saving function. Degree of protection IP65, electrical connection M12x1, Plug.

Net
€637.27
excl. VAT
Item FES-8037698
Manufacturer no. OVEM-07-H-B-QO-CE-N-1PD
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

6 bar nominal operating pressure, 0.7 mm Laval nozzle, design modular: the Festo vacuum generator OVEM-07-H-B-QO-CE-N-1PD at a glance. Ejector characteristic: high vacuum, Standard.

Benefits

  • Vacuum up to 93 %, reached at 4.1 bar operating pressure
  • Suction flow up to 16 l/min against atmosphere
  • Fast release via ejector pulse, release time 0.4 s at nominal operating pressure
  • Air-saving function (electric): compressed air is only consumed when the vacuum needs topping up
  • Electrics: degree of protection IP65, connection M12x1, Plug, 24 V DC: low-current phase 0.3 W, high-current phase 2.55 W
  • Sound pressure level 58 dB(A) at nominal operating pressure, open silencer

Applications

The high vacuum suits dense, smooth workpieces such as sheet metal, glass or plastic panels. Mounting: with through-hole, With female thread, With accessories. Lubricated operation is not possible.

Technical data

Nominal size, Laval nozzle0.7 mm
Grid dimension20 mm
Silencer designOpen
Mounting positionAny
Ejector characteristicHigh vacuum, Standard
Grade of filtration40 µm
Manual overrideNon-detenting

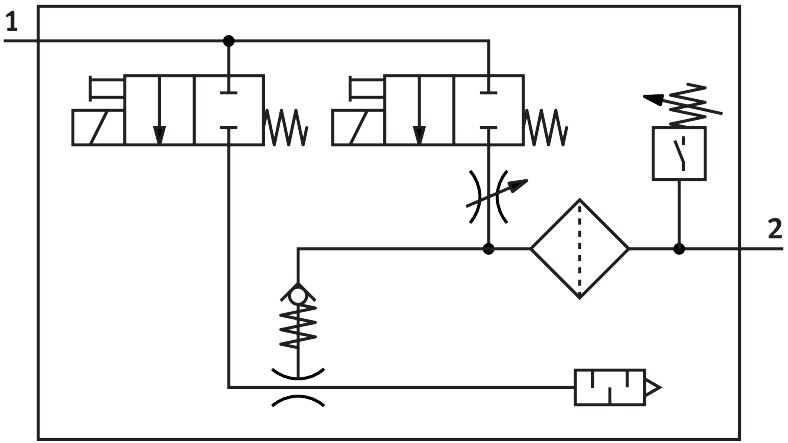

Integrated functionElectric ejector pulse valve, Flow control, Electric switch-on valve, Filter, Electric air-saving function, Non-return valve, Open silencer, Vacuum switch
DesignModular
Short circuit current ratingYes
Measured variableRelative pressure
Measuring principlePiezoresistive
Switching element functionN/C contact, N/O contact
Switching functionWindow comparator, Threshold value comparator
Valve functionClosed
Reverse polarity protectionFor all electrical connections
Standard switching inputIEC 61131-2
Display type4-place alphanumeric, Back-lit LCD
Indicating range-0.999 to 0 bar
Displayable unitsBar
Setting range hysteresis-0.9 to 0 bar
Setting optionsVia display and buttons
Switching position indicatorLCD
Switching status indicationOptical
Setting range threshold value-0.999 to 0 bar
Operating pressure2 to 8 bar
Operating pressure for maximum vacuum4.1 bar
Maximum vacuum93 %
Nominal operating pressure6 bar
Maximum suction flow rate against atmosphere16 l/min
Release time at nominal operating pressure0.4 s
Operational voltage range DC20.4 to 27.6 V
Duty cycle100 %
Inductive protective circuitAdapted to MZ, MY, ME coils
Insulation voltage50 V
No-load supply current70 mA
Maximum output current100 mA
Off-state current0.1 mA
Switching outputPNP
Voltage drop2 V
Characteristic coil data24 V DC: low-current phase 0.3 W, high-current phase 2.55 W
Immunity to surge0.8 kV
Overload protectionAvailable
Pollution degree3
ApprovalRCM Mark, c UL us - Listed (OL)
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive
UKCA marking (see declaration of conformity)To UK regulations for EMC
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation not possible
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Media temperature0 to 50 °C
Relative air humidity5 - 85 %
Sound pressure level at nominal operating pressure58 dB(A)
Degree of protectionIP65
Protection classIII
Ambient temperature0 to 50 °C
Maximum tightening torque0.8 Nm with female thread, 2.5 Nm with through-hole
Product weight330 g
Pressure measuring range-1 to 0 bar
Accuracy in ± % FS3 %FS
Reproducibility of switching values FS0.6 %
Switching logic for inputsPNP (positive switching)
Electrical connectionM12x1, Plug
Protection against tamperingPIN code
Type of mountingWith through-hole, With female thread, With accessories
Pneumatic connection, port 1QS-8
Pneumatic connection, port 3Integrated silencer
Vacuum connectionQS-8
Note on materialsRoHS compliant
Material sealsNBR
Material receiver nozzlePOM
Material filterFabric, PA, Sintered steel
Material filter housingReinforced PA
Material housingDie-cast aluminium, Reinforced PA
Material adjusting screwSteel
Material silencerWrought aluminium alloy, Polyurethane foam
Material screwsSteel
Material display windowPA
Material connector housingBrass, nickel-plated
Material electrical contactBrass, gold-plated
Material pinsSteel
Material transmitter nozzleWrought aluminium alloy
Material keypadTPE-U
Material fittingBrass, nickel-plated
Weight0.55 kg
ManufacturerFesto
Hersteller-NrOVEM-07-H-B-QO-CE-N-1PD
EAN4052568285692
Zolltarifnummer84141089
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
For hose OD [mm]8
Nominal size DN [mm]0,7
Seal materialNBR
MediumCompressed air
Functionclosed
Flow rate [l/min]16
Filter grade [µm]40
Operating voltage24 V DC
SeriesOVEM
Betriebsdruck max [bar]8
Pneumatic connectionQS-8
Protection ratingIP65
Temperaturbereich0-50 °C
Temperature (max.)50
