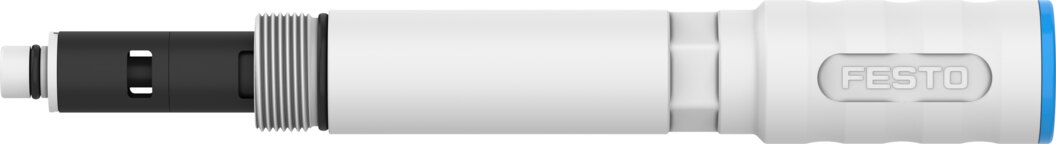

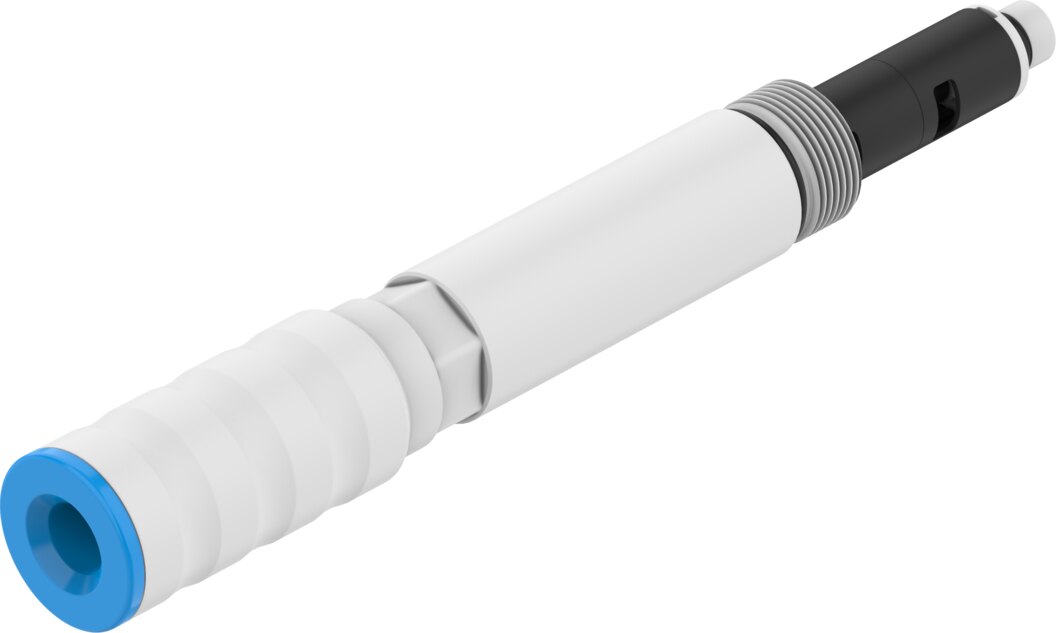

3-stage vacuum generator cartridge Laval nozzle 1.4 mm 245 l/min OASP-G4-14-L3-UA - Festo 8199155
Up to 81 % vacuum and 245 l/min suction flow against atmosphere: that is what the vacuum generator cartridge OASP-G4-14-L3-UA delivers from compressed air. Permitted operating pressure is 1 to 8 bar, nominal operating pressure 6 bar. Suitable for battery production with reduced Cu/Zn/Ni values (F1a).
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
OASP-G4-14-L3-UA: vacuum generator cartridge with a 1.4 mm Laval nozzle, characteristic high suction rate. Ejector characteristic: high suction rate.
Benefits
- Vacuum up to 81 %, reached at 7.9 bar operating pressure
- Suction flow up to 245 l/min against atmosphere, at 8 bar operating pressure
- Release time 0.37 s at nominal operating pressure 6 bar
- Sound pressure level 60 dB(A) at nominal operating pressure, open silencer
- Clean production: suitable for battery production (F1a), LABS (PWIS) conformity VDMA24364-B1/B2-L
- Product weight 123 g
Applications
The high suction flow helps with porous or air-permeable parts such as cardboard, wood or textiles and with large suction cup volumes. Mounting: direct mounting via thread. Lubricated operation is not possible.
Technical data
| Nominal size, Laval nozzle | 1.4 mm |
|---|---|
| Silencer design | Open |
| Ejector characteristic | High suction rate |
| Integrated function | Open silencer |
| Design | 3-stage vacuum generator |
| Operating pressure for maximum suction flow rate | 8 bar |
| Operating pressure | 1 to 8 bar |
| Operating pressure for maximum vacuum | 7.9 bar |
| Maximum vacuum | 81 % |
| Nominal operating pressure | 6 bar |
| Maximum suction flow rate against atmosphere | 245 l/min |
| Release time at nominal operating pressure | 0.37 s |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Media temperature | 0 to 60 °C |
| Recommended cleaning agent | Soapy water (except silencer) |
| Sound pressure level at nominal operating pressure | 60 dB(A) |
| Ambient temperature | 0 to 60 °C |
| Product weight | 123 g |
| Type of mounting | Direct mounting via thread |
| Material seals | NBR |
| Material receiver nozzle | Reinforced PA |
| Material silencer | Reinforced PA, Polyurethane foam |
| Material transmitter nozzle | Reinforced PA |
| Mounting position | Any |
| Weight | 0.11 kg |
| Manufacturer | Festo |
| Hersteller-Nr | OASP-G4-14-L3-UA |
| EAN | 4052568661236 |
| Zolltarifnummer | 84149000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Nominal size DN [mm] | 1,4 |
| Seal material | NBR |
| Medium | Compressed air |
| Betriebsdruck max [bar] | 8 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
