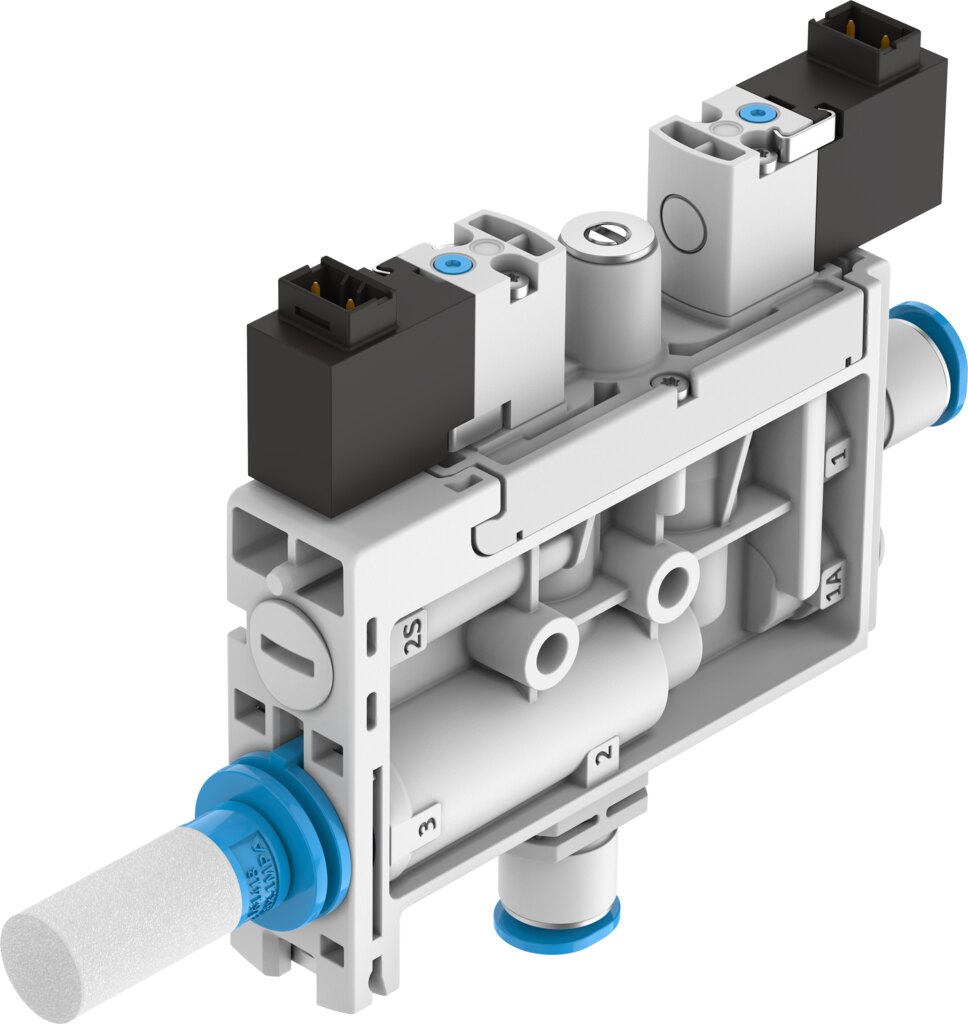

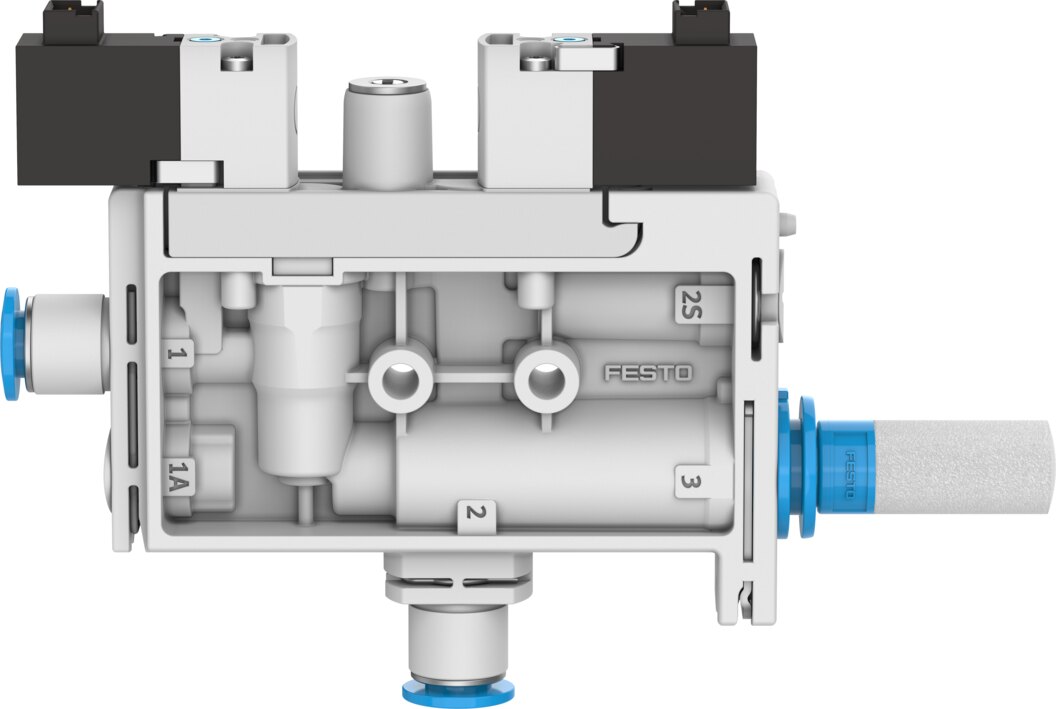

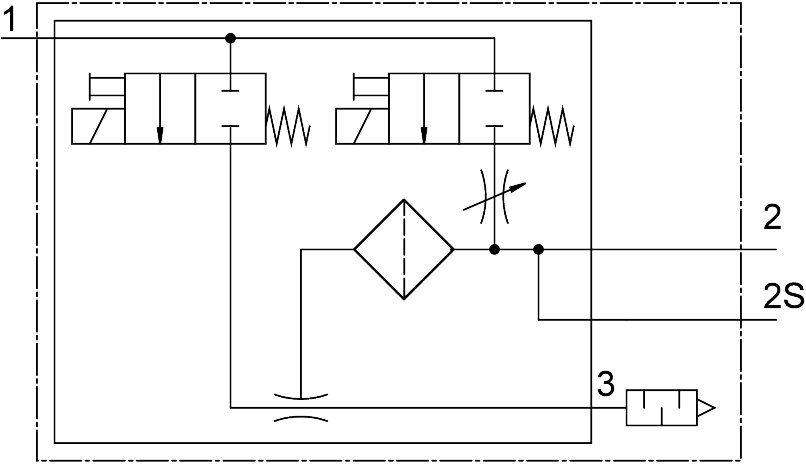

T-shape vacuum generator with switch-on valve and ejector pulse Laval nozzle 0.7 mm vacuum 92 % OVEL-7-H-15-PQ-VQ4-UC-C-A-H3 - Festo 8141100

Festo ✓ Original product Brand new

With a 0.7 mm Laval nozzle, the vacuum generator OVEL-7-H-15-PQ-VQ4-UC-C-A-H3 reaches up to 92 % vacuum at a max. suction flow of 17 l/min. Integrated functions: electric ejector pulse, flow control, electric switch-on valve and filter. Maximum vacuum is reached at an operating pressure of just 4.8 bar.

Net
€137.76
excl. VAT
Item FES-8141100
Manufacturer no. OVEL-7-H-15-PQ-VQ4-UC-C-A-H3
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The vacuum generator OVEL-7-H-15-PQ-VQ4-UC-C-A-H3 works with a 0.7 mm Laval nozzle and requires 2 to 7 bar operating pressure, nominal 4 bar. Ejector characteristic: high vacuum, Standard.

Benefits

  • Vacuum up to 92 %, reached at 4.8 bar operating pressure
  • Suction flow up to 17 l/min against atmosphere, at 4 bar operating pressure
  • Sound pressure level 56 dB(A) at nominal operating pressure, closed silencer
  • Clean production: LABS (PWIS) conformity VDMA24364-B1/B2-L
  • Product weight 58 g, grid dimension 15 mm
  • Corrosion resistance class 2 - Moderate corrosion stress

Applications

For dense surfaces where high vacuum defines the holding force, for example sheet metal, glass or film on a smooth carrier. Fastening: with through-hole. Lubricated operation is not possible.

Technical data

Nominal size, Laval nozzle0.7 mm
Grid dimension15 mm
Silencer designClosed
Mounting positionAny
Ejector characteristicHigh vacuum, Standard
Grade of filtration40 µm
Manual overrideNon-detenting
Integrated functionElectric ejector pulse, Flow control, Electric switch-on valve, Filter, Closed silencer
DesignT-shape
Valve functionClosed
Operating pressure for maximum suction flow rate4 bar
Operating pressure2 to 7 bar
Operating pressure for maximum vacuum4.8 bar
Maximum vacuum92 %
Nominal operating pressure4 bar
Maximum suction flow rate against atmosphere17 l/min
Release time at nominal operating pressure with ejector pulse1.2 s
Operational voltage range DC21.6 to 26.4 V
Duty cycle100 %
Characteristic coil data24 V DC: 1.0 W
Approvalc UL us - Listed (OL)
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation not possible
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature0 to 50 °C
Sound pressure level at nominal operating pressure56 dB(A)
Degree of protectionIP40
Ambient temperature0 to 50 °C
Product weight58 g
Electrical connection input, functionVacuum generation
Electrical connection input, connection type2x plugs
Electrical connection input, connector systemPlug pattern H
Electrical connection input, number of connections/cores2
Input electrical connection, mounting typeSnap-locking
Type of mountingWith through-hole
Pneumatic connection, port 1For tubing O.D. 4 mm
Pneumatic connection, port 3Closed silencer
Vacuum connectionFor tubing O.D. 4 mm
Material connecting threadPOM
Note on materialsRoHS compliant
Material sealsNBR
Material receiver nozzlePOM
Material filterPOM
Material housingReinforced PA
Material adjusting screwSteel
Material silencerReinforced PA, PE
Material screwsSteel
Material transmitter nozzleWrought aluminium alloy
ManufacturerFesto
Hersteller-NrOVEL-7-H-15-PQ-VQ4-UC-C-A-H3
EAN4052568566692
Zolltarifnummer84141089
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
For hose OD [mm]4
Nominal size DN [mm]0,7
Seal materialNBR
MediumCompressed air
Functionclosed
Flow rate [l/min]17
Filter grade [µm]40
Operating voltage24 V DC
SeriesOVEL
Betriebsdruck max [bar]7
Protection ratingIP40
Temperaturbereich0-50 °C
Temperature (max.)50
