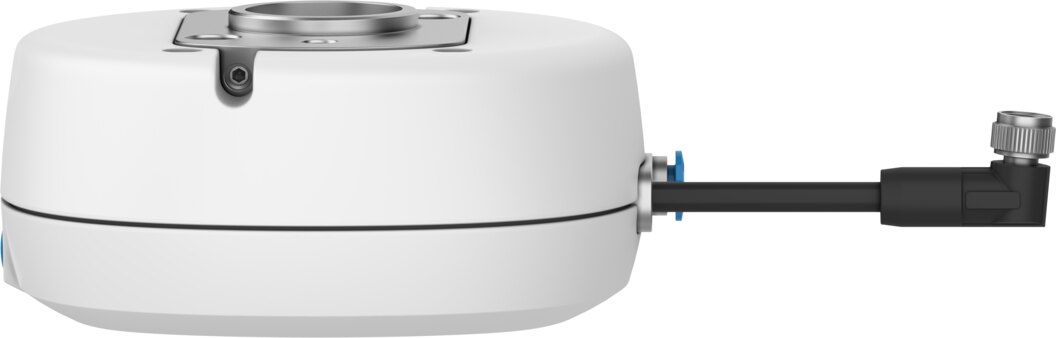

Vacuum generator for HRC with switch-on valve and pressure sensor Laval nozzle 0.7 mm vacuum 92 % OVEH-7-H-Q6-G18-UA-C-PNLK-SR12-HRC - Festo 8205192
Up to 92 % vacuum and 15 l/min suction flow against atmosphere: that is what the vacuum generator OVEH-7-H-Q6-G18-UA-C-PNLK-SR12-HRC delivers from compressed air. Integrated functions: electric ejector pulse, pressure sensor, electric switch-on valve and filter. Maximum vacuum is reached at an operating pressure of just 4.5 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
4 bar nominal operating pressure, 0.7 mm Laval nozzle, design human-robot collaboration (HRC): the Festo vacuum generator OVEH-7-H-Q6-G18-UA-C-PNLK-SR12-HRC at a glance. Ejector characteristic: high vacuum, Standard.
Benefits
- Vacuum up to 92 %, reached at 4.5 bar operating pressure
- Suction flow up to 15 l/min against atmosphere, at 4 bar operating pressure
- Vacuum monitoring with integrated pressure sensor: Piezoresistive pressure sensor with display, switching output PNP/NPN umschaltbar, LED indicator, 2 digits
- Electrics: degree of protection IP40, 24 V DC: 1.0 W, IO-Link
- Sound pressure level 48 dB(A) at nominal operating pressure, open silencer
- Clean production: LABS (PWIS) conformity VDMA24364-B1/B2-L
Applications
The high vacuum suits dense, smooth workpieces such as sheet metal, glass or plastic panels. Designed for human-robot collaboration (HRC). Mounting: with mounting kit, To ISO 9409. Lubricated operation is not possible.
Technical data
| Nominal size, Laval nozzle | 0.7 mm |
|---|---|
| Silencer design | Open |
| Mounting position | Any |
| Ejector characteristic | High vacuum, Standard |
| Grade of filtration | 40 µm |
| Manual override | None |

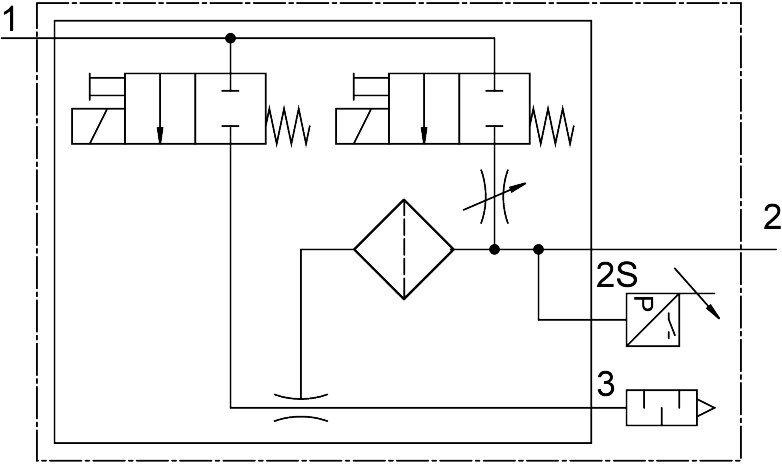

| Integrated function | Electric ejector pulse, Pressure sensor, Electric switch-on valve, Filter, Closed silencer |
| Design | Human-robot collaboration (HRC) |
| Short circuit current rating | Yes |
| Measured variable | Pressure |
| Measuring principle | Piezoresistive |
| Switching element function | N/C or N/O contact, switchable |
| Switching function | Freely programmable |
| Valve function | Closed |
| Reverse polarity protection | Yes |
| Measurement method | Piezoresistive pressure sensor with display |

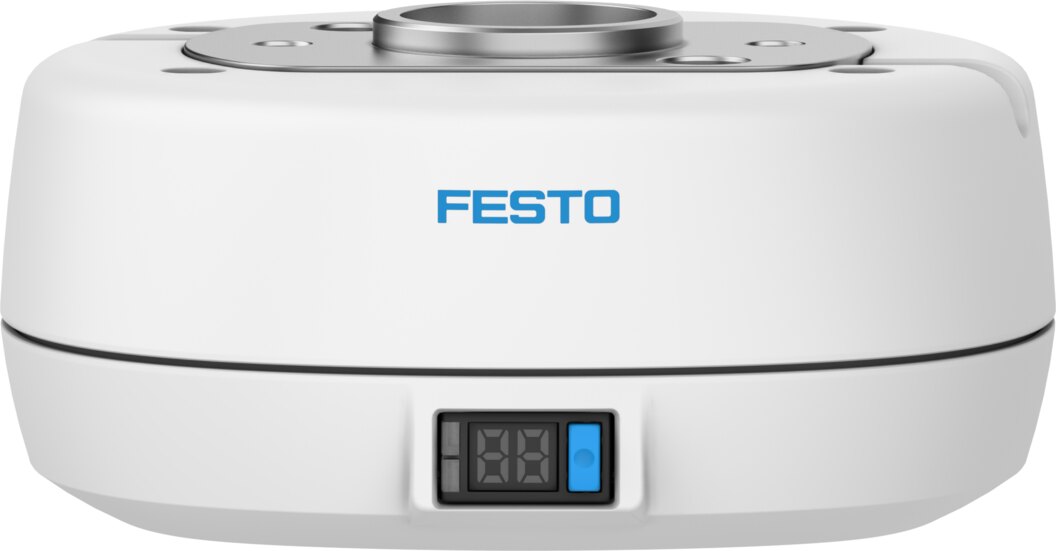

| Display type | LED indicator, 2 digits |
| Setting options | IO-Link, Teach-in, Via display and buttons |
| Switching status indication | Yellow LED |
| Operating pressure for maximum suction flow rate | 4 bar |
| Operating pressure | 2 to 7 bar |
| Operating pressure for maximum vacuum | 4.5 bar |
| Maximum vacuum | 92 % |
| Nominal operating pressure | 4 bar |
| Maximum suction flow rate against atmosphere | 15 l/min |
| Release time at nominal operating pressure with ejector pulse | 1.2 s |
| Operational voltage range DC | 21.6 to 26.4 V |
| Duty cycle | 100 % |
| Maximum output current | 100 mA |
| Switching output | PNP/NPN switchable |
| Characteristic coil data | 24 V DC: 1.0 W |
| CE mark (see declaration of conformity) | To EU EMC Directive |
| UKCA marking (see declaration of conformity) | To UK regulations for EMC |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | 0 to 50 °C |
| Recommended cleaning agent | Soapy water |
| Relative air humidity | up to 93 % at 40 °C |
| Sound pressure level at nominal operating pressure | 48 dB(A) |
| Sound power level at nominal operating pressure | 60 dB(A) |
| Degree of protection | IP40 |
| Ambient temperature | 0 to 50 °C |
| Product weight | 415 g |
| Pressure measuring range | -1 to 0 bar |
| Accuracy in ± % FS | 1.5 %FS |
| Reproducibility of switching values FS | 0.3 % |
| Protocol | IO-Link |
| IO-Link, Protocol version | Device V 1.1 |
| IO-Link, Profile | Smart sensor profile |
| IO-Link, Function classes | Binary data channel (BDC), Process data variable (PDV), Identification, Diagnostics, Teach channel |
| IO-Link, communication mode | COM2 (38.4 kBaud) |
| IO-Link, SIO-Mode support | Yes |
| IO-Link, Port class | A |
| IO-Link, Process data length OUT | 0 bytes |
| IO-Link, Process data length IN | 2 bytes |
| IO-Link, Process data content IN | 14 bit PDV (pressure measurement value), 2 bit BDC (pressure monitoring) |
| IO-Link, Minimum cycle time | 3 ms |
| IO-Link, Data storage required | 0.5 byte |

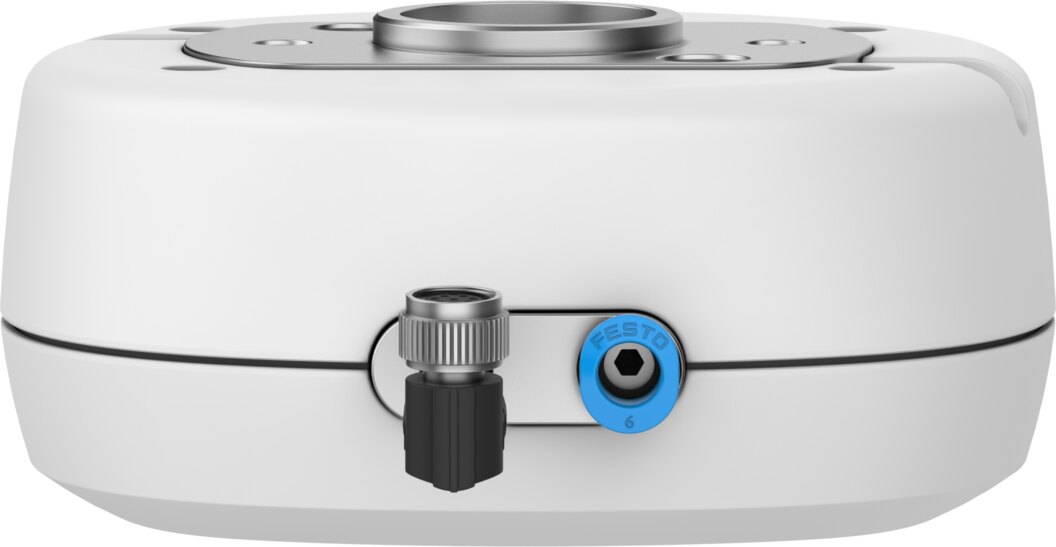

| Electrical connection 1, connection type | Cable with socket |
| Electrical connection 1, cable outlet | Angled |
| Electrical connection 1, design | Round |
| Electrical connection 1, connector system | M8x1, A-coded to EN 61076-2-104 |
| Electrical connection 1, number of connections/cores | 8 |
| Electrical connection 1, used connections/cores | 5 |
| Electrical connection 1, tightening torque | 0.2 Nm |
| Electrical connection input, function | Power supply, Vacuum generation |
| Electrical connection output, function | Digital output |
| Cable characteristic | Suitable for robot applications |
| Cable diameter | 5 mm |
| Cable diameter tolerance | ± 1 mm |
| Cable length | 0.3 m |
| Protection against tampering | PIN code |

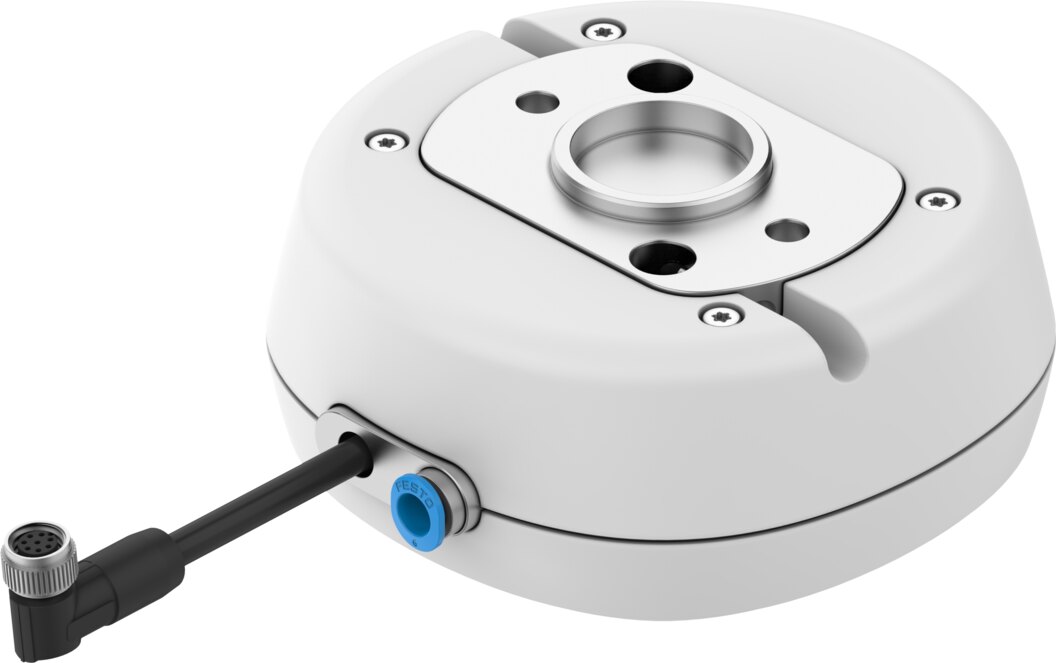

| Type of mounting | With mounting kit, To ISO 9409 |
| Pneumatic connection, port 1 | For tubing O.D. 6 mm |
| Pneumatic connection, port 3 | Open silencer |
| Vacuum connection | G1/8 |
| Note on vacuum connection | Additional accessories possible |
| Cable sheath colour | Black |
| Material connecting thread | Wrought aluminium alloy, anodised |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Material receiver nozzle | POM |
| Material filter | POM |
| Material housing | Reinforced PA |
| Material hollow bolt | Wrought aluminium alloy |
| Material cable sheath | PVC |
| Material adjusting screw | Steel |
| Material silencer | Reinforced PA, PE |
| Material screws | Steel |
| Material transmitter nozzle | Wrought aluminium alloy |
| Manufacturer | Festo |
| Hersteller-Nr | OVEH-7-H-Q6-G18-UA-C-PNLK-SR12-HRC |
| EAN | 4052568825096 |
| Zolltarifnummer | 84141089 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| For hose OD [mm] | 6 |
| Nominal size DN [mm] | 0,7 |
| Seal material | NBR |
| Medium | Compressed air |
| Function | closed |
| Flow rate [l/min] | 15 |
| Filter grade [µm] | 40 |
| Operating voltage | 24 V DC |
| Betriebsdruck max [bar] | 7 |
| Protection rating | IP40 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
