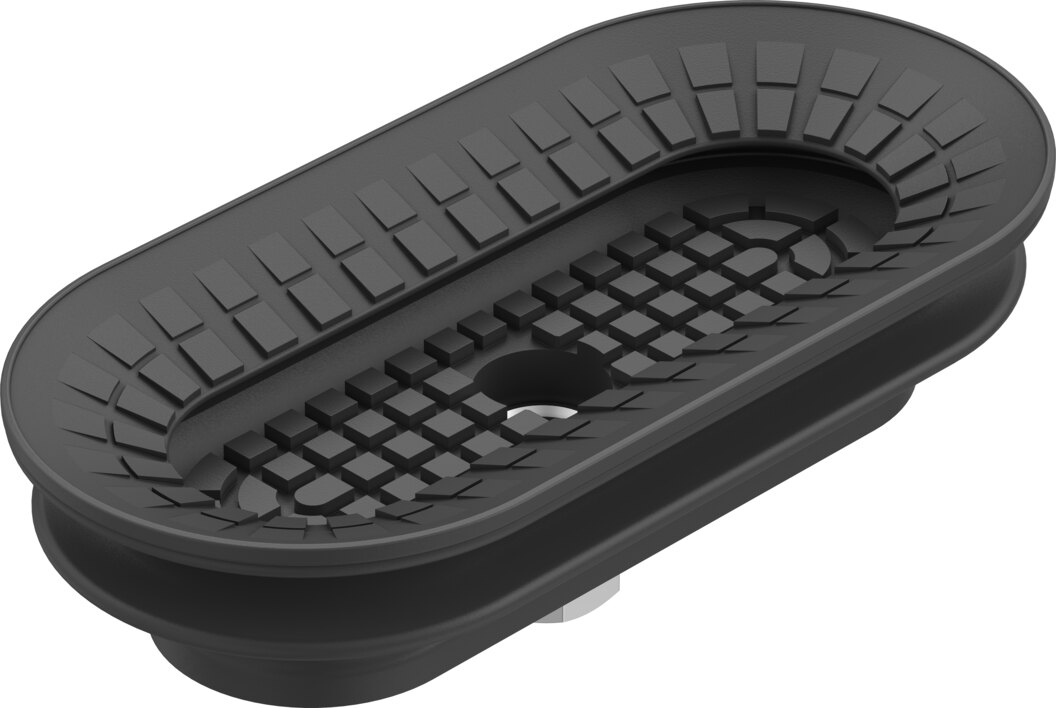

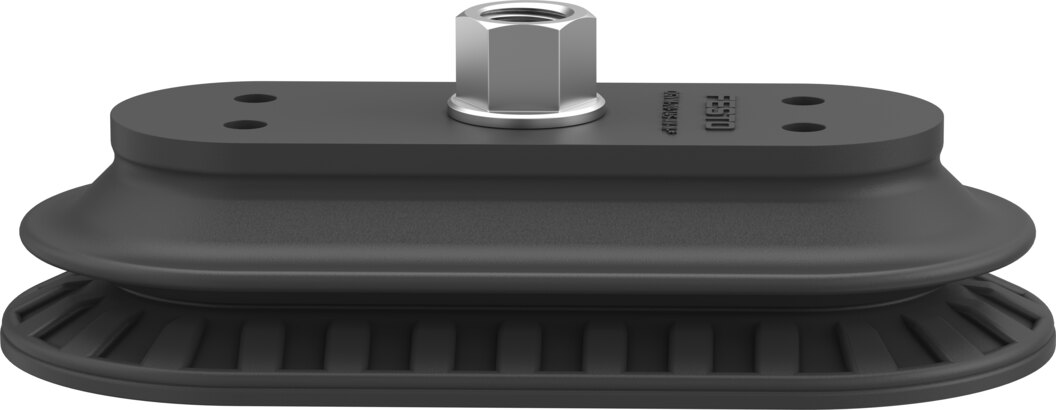

Oval bellows vacuum suction cup 70x145 mm NBR G1/4 OGVM-70X145-AV-N-G14F - Festo 8073868

Festo ✓ Original product Brand new

With 446 N of holding force at -0.6 bar, the Festo OGVM-70X145-AV-N-G14F vacuum suction cup (70x145 mm) holds parts reliably during handling. Oval bellows design made of NBR. The 1.5-convolution bellows compensates 16.5 mm in height and touches down gently. NBR suction cup, Shore hardness 60 +/-5.

Net
€76.77
excl. VAT
Item FES-8073868
Manufacturer no. OGVM-70X145-AV-N-G14F
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 446 N of holding force at -0.6 bar, the Festo OGVM-70X145-AV-N-G14F vacuum suction cup (70x145 mm) holds parts reliably during handling.

Benefits

  • 446 N holding force at -0.6 bar nominal operating pressure
  • The 1.5-convolution bellows compensates 16.5 mm in height and touches down gently
  • NBR suction cup, Shore hardness 60 +/-5
  • Lateral force of 317 N at nominal operating pressure, relevant for fast sideways moves
  • Mounts directly via the female thread G1/4 vacuum connection

Typical applications

Typical uses are parts with height offsets or slight curvature, such as cartons, bags or plastic mouldings.

Technical data

TypeOGVM-70X145-AV-N-G14F
Festo part number8073868
Height compensator for suction cup16.5 mm
Minimum workpiece radius70 mm
Nominal size8 mm
Suction cup size70x145 mm
Suction cup volume111 cm³
Position of connectionOn top
Mounting positionAny
Suction cup shapeOval, bellows with 1.5 convolutions
Operating pressure-0.95 to 0 bar
Nominal operating pressure-0.6 bar
Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-A1-L
Ambient temperature-20 to 80 °C
Holding force at nominal operating pressure446 N
Vertical lateral force at nominal operating pressure317 N
Product weight156 g
Type of mountingVia vacuum port
Vacuum connectionFemale thread G1/4
ColourBlack
Shore hardness60 +/-5
Material screwed plugWrought aluminium alloy
Note on materialsRoHS compliant
Material suction cupNBR
Weight0.16 kg
ManufacturerFesto
Hersteller-NrOGVM-70X145-AV-N-G14F
EAN4052568301057
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialNBR
ThreadG 1/4 IG
Nominal size DN [mm]8
MediumAir
Thread typeInternal thread
Pneumatic connectionG1/4 IG
Temperaturbereich-20-80 °C
Temperature (max.)80
