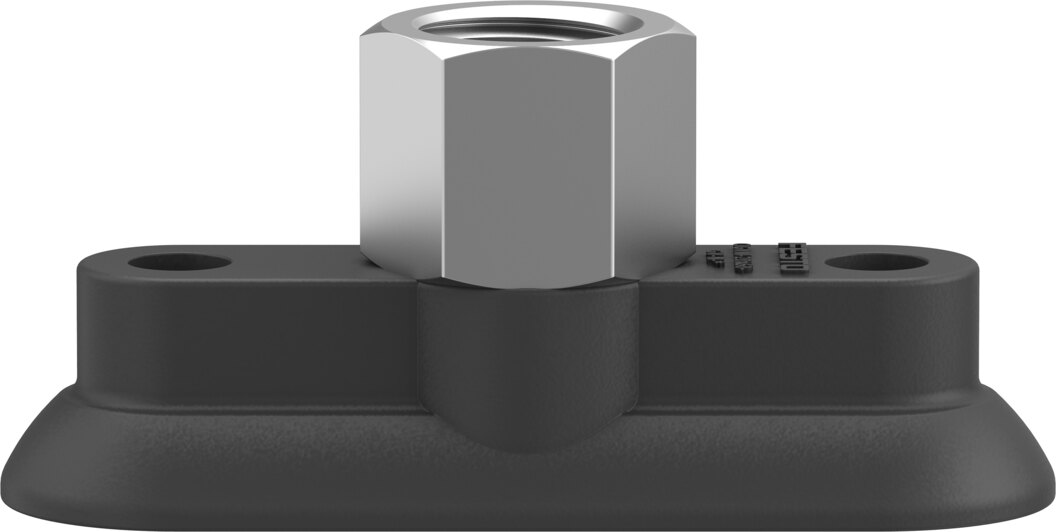

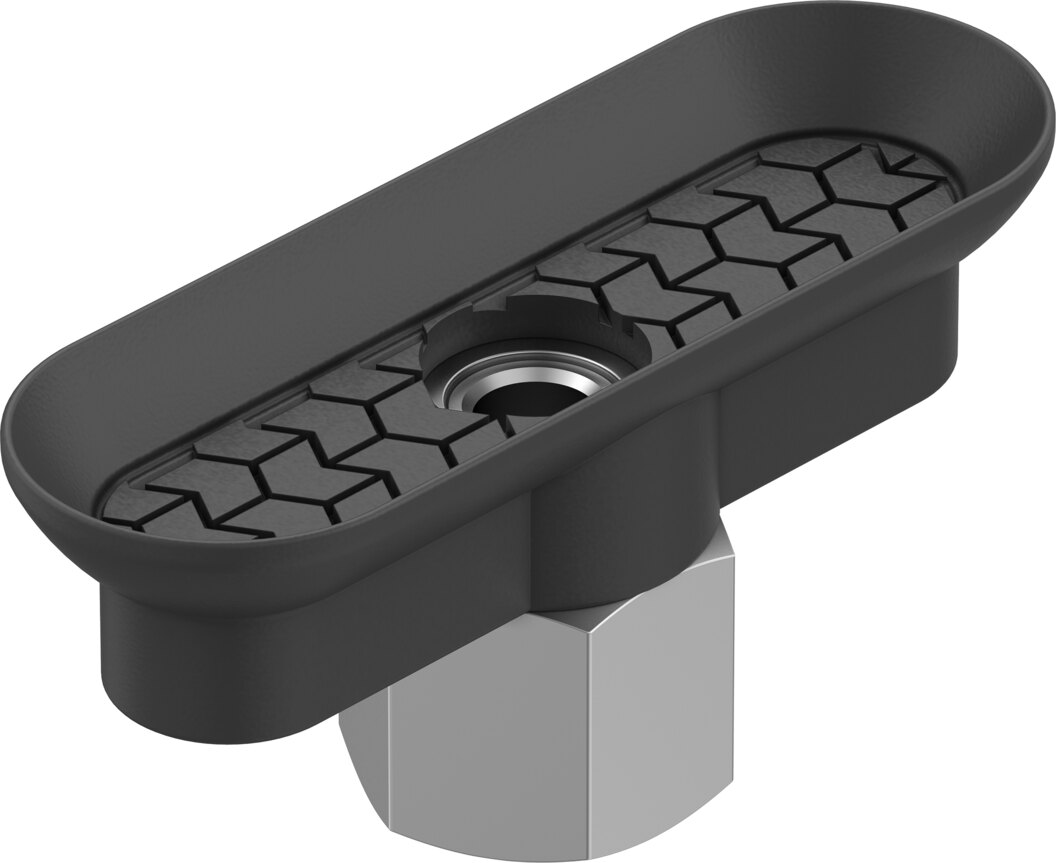

Oval bell-shaped vacuum suction cup 20x60 mm NBR G1/4 OGVM-20X60-GV-N-G14F - Festo 8073862
With 81 N of holding force at -0.6 bar, the Festo OGVM-20X60-GV-N-G14F vacuum suction cup (20x60 mm) holds parts reliably during handling. Oval bell-shaped design made of NBR. Bell shape for curved workpieces from a workpiece radius of 12.5 mm. NBR suction cup, Shore hardness 60 +/-5.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With 81 N of holding force at -0.6 bar, the Festo OGVM-20X60-GV-N-G14F vacuum suction cup (20x60 mm) holds parts reliably during handling.
Why choose it
- Holding force of 81 N at a nominal operating pressure of -0.6 bar
- Bell shape for curved workpieces from a workpiece radius of 12.5 mm
- NBR suction cup, Shore hardness 60 +/-5
- Takes up 103 N of lateral force at nominal operating pressure
- Vacuum connection female thread G1/4 on top, mounted directly via the port
Areas of use
The bell shape suits curved surfaces and textured parts, such as tubes, mouldings or castings.
Technical data
| Type | OGVM-20X60-GV-N-G14F |
|---|---|
| Festo part number | 8073862 |
| Height compensator for suction cup | 5 mm |
| Minimum workpiece radius | 12.5 mm |
| Nominal size | 6 mm |
| Suction cup size | 20x60 mm |
| Suction cup volume | 5 cm³ |
| Position of connection | On top |
| Mounting position | Any |
| Suction cup shape | Oval, bell-shaped |
| Operating pressure | -0.95 to 0 bar |
| Nominal operating pressure | -0.6 bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -20 to 80 °C |
| Holding force at nominal operating pressure | 81 N |
| Vertical lateral force at nominal operating pressure | 103 N |
| Product weight | 16 g |
| Type of mounting | Via vacuum port |
| Vacuum connection | Female thread G1/4 |
| Colour | Black |
| Shore hardness | 60 +/-5 |
| Material screwed plug | Wrought aluminium alloy |
| Note on materials | RoHS compliant |
| Material suction cup | NBR |
| Weight | 0.018 kg |
| Manufacturer | Festo |
| Hersteller-Nr | OGVM-20X60-GV-N-G14F |
| EAN | 4052568300999 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | NBR |
| Thread | G 1/4 IG |
| Nominal size DN [mm] | 6 |
| Medium | Air |
| Thread type | Internal thread |
| Pneumatic connection | G1/4 IG |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
