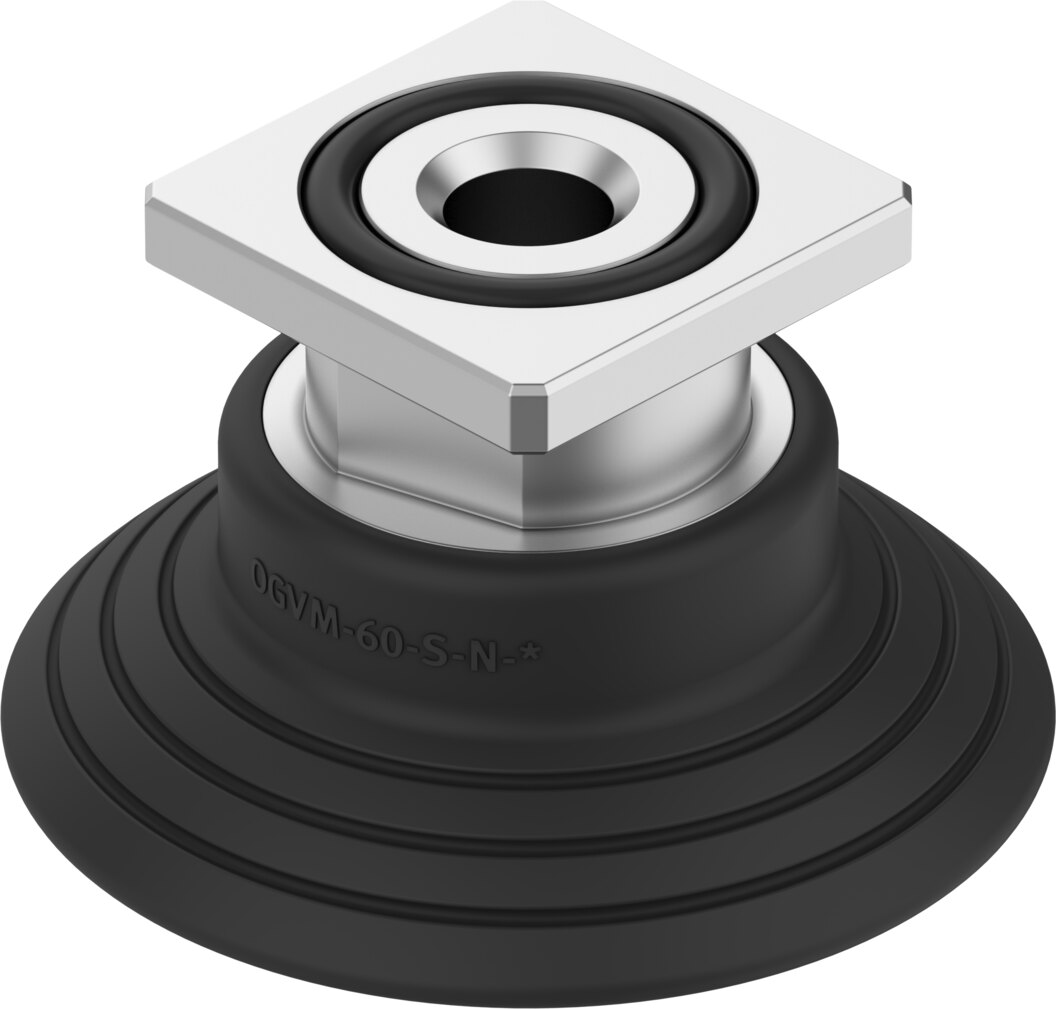

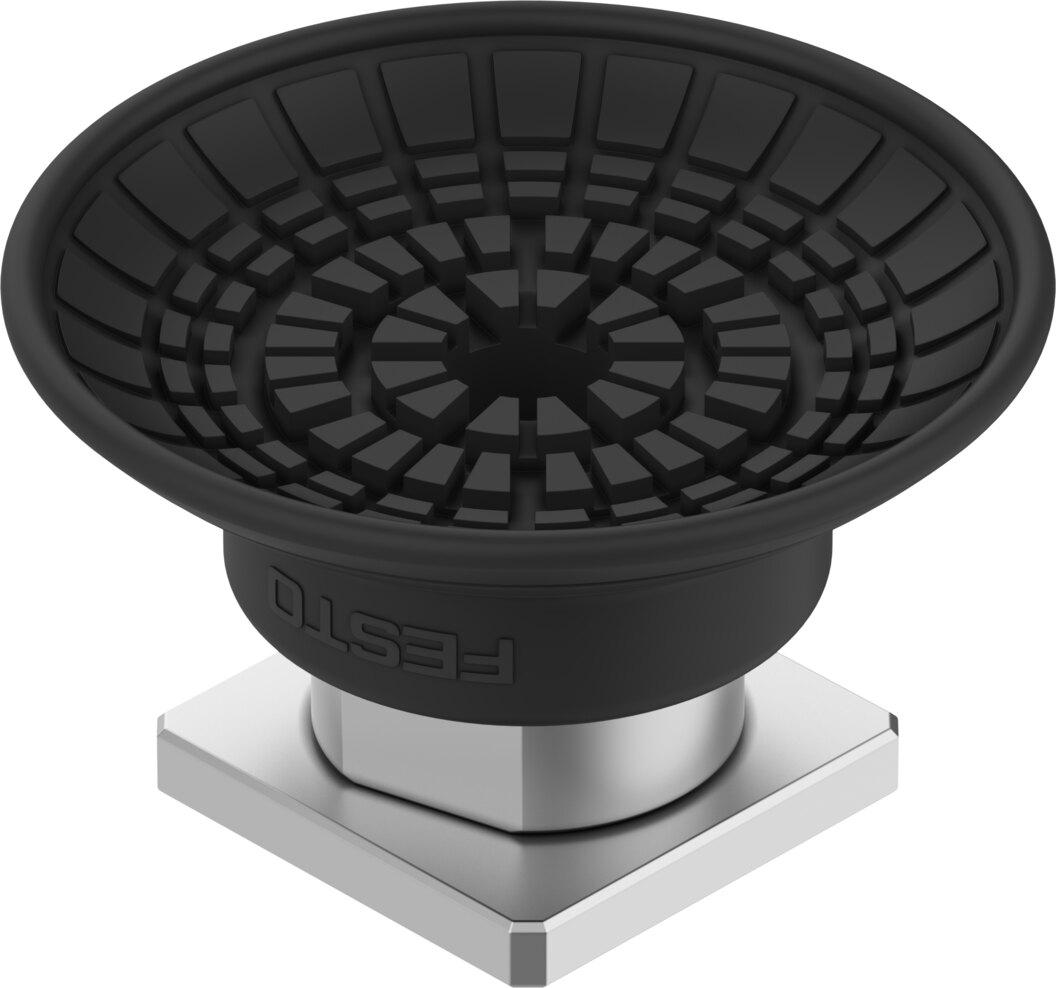

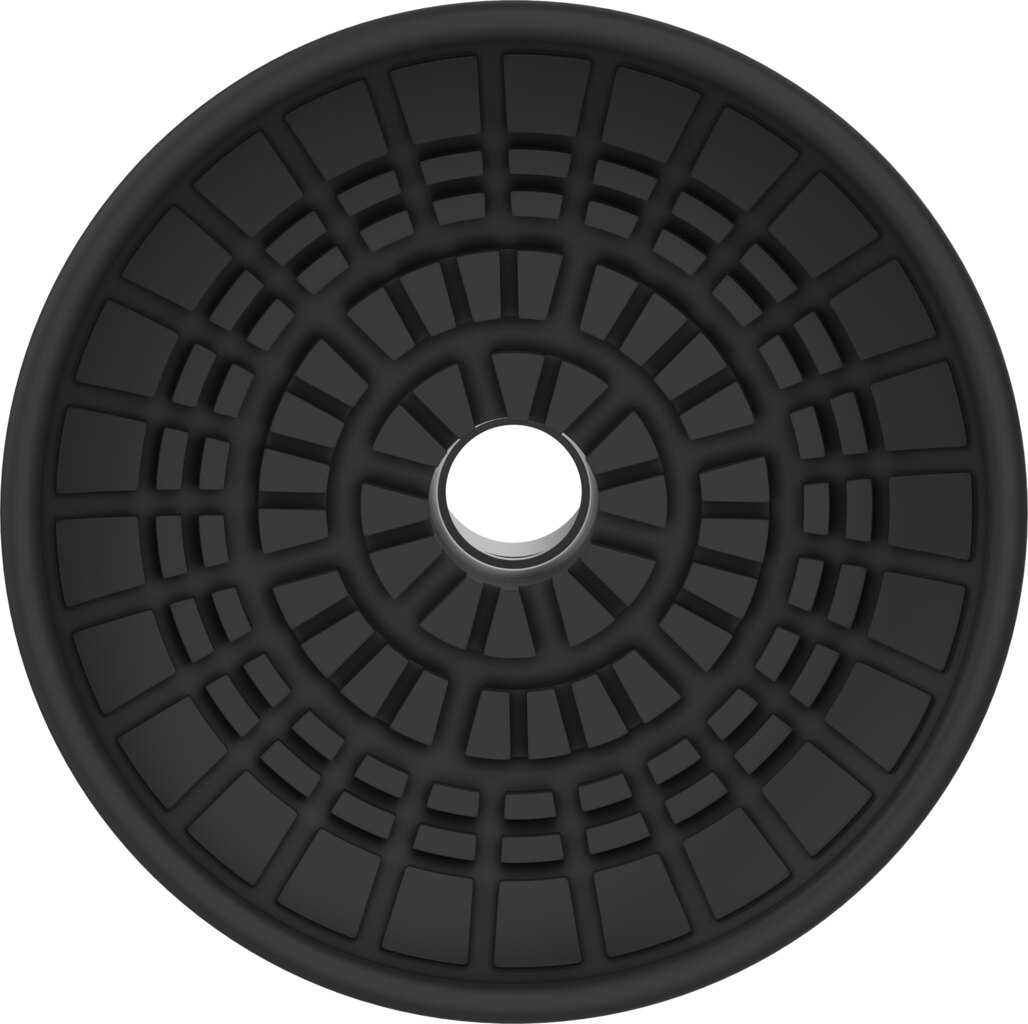

Round flat vacuum suction cup Ø 60 mm NBR with rectangular adapter OGVM-60-S-N-RA - Festo 8213220

Festo ✓ Original product Brand new

With 120 N of holding force at -0.6 bar, the Festo OGVM-60-S-N-RA vacuum suction cup (Ø 60 mm) holds parts reliably during handling. Round flat design made of NBR. Low internal volume of 15 cm³ in a flat design, so the vacuum builds up quickly. NBR suction cup, Shore hardness 60 +/-5.

Net
€42.92
excl. VAT
Item FES-8213220
Manufacturer no. OGVM-60-S-N-RA
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 120 N of holding force at -0.6 bar, the Festo OGVM-60-S-N-RA vacuum suction cup (Ø 60 mm) holds parts reliably during handling.

Key benefits

  • Holding force of 120 N at a nominal operating pressure of -0.6 bar
  • Low internal volume of 15 cm³ in a flat design, so the vacuum builds up quickly
  • NBR suction cup, Shore hardness 60 +/-5
  • Lateral force of 99 N at nominal operating pressure, relevant for fast sideways moves
  • Rectangular adapter RA for positive-locking mounting in the holder

Areas of use

Flat suction cups suit smooth, even workpieces such as sheet metal, glass, cardboard or plastic panels.

Technical data

TypeOGVM-60-S-N-RA
Festo part number8213220
Height compensator for suction cup6 mm
Minimum workpiece radius70 mm
Nominal size8 mm
Suction cup diameter60 mm
Suction cup volume15 cm³
Position of connectionOn top
Mounting positionAny
Suction cup shapeRound, flat
Operating pressure-0.95 to 0 bar
Nominal operating pressure-0.6 bar
Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-A1/A2-L
Ambient temperature-20 to 80 °C
Holding force at nominal operating pressure120 N
Lateral force at nominal operating pressure99 N
Product weight50 g
Type of mountingVia vacuum port
Vacuum connectionRectangular adapter RA
ColourBlack
Shore hardness60 +/-5
Material screwed plugWrought aluminium alloy
Note on materialsRoHS compliant
Material suction cupNBR
ManufacturerFesto
Hersteller-NrOGVM-60-S-N-RA
EAN4052568790486
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialNBR
Nominal size DN [mm]8
Diameter [mm]60
MediumAir
Temperaturbereich-20-80 °C
Temperature (max.)80
