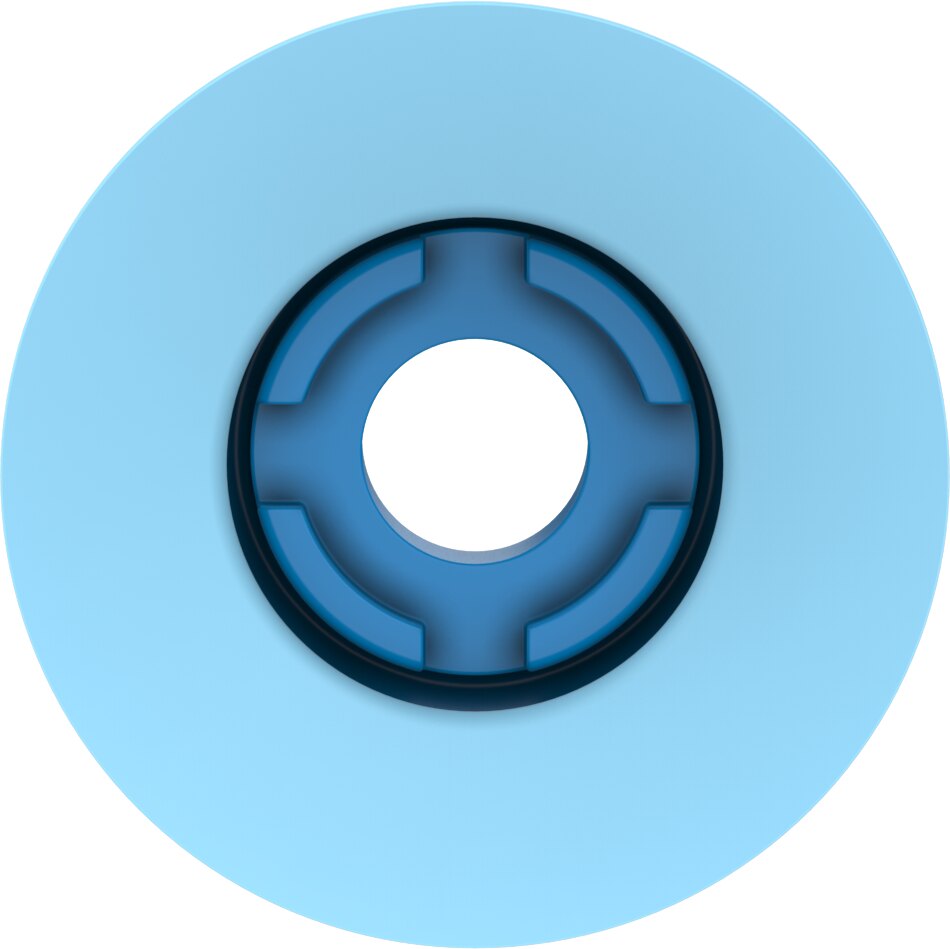

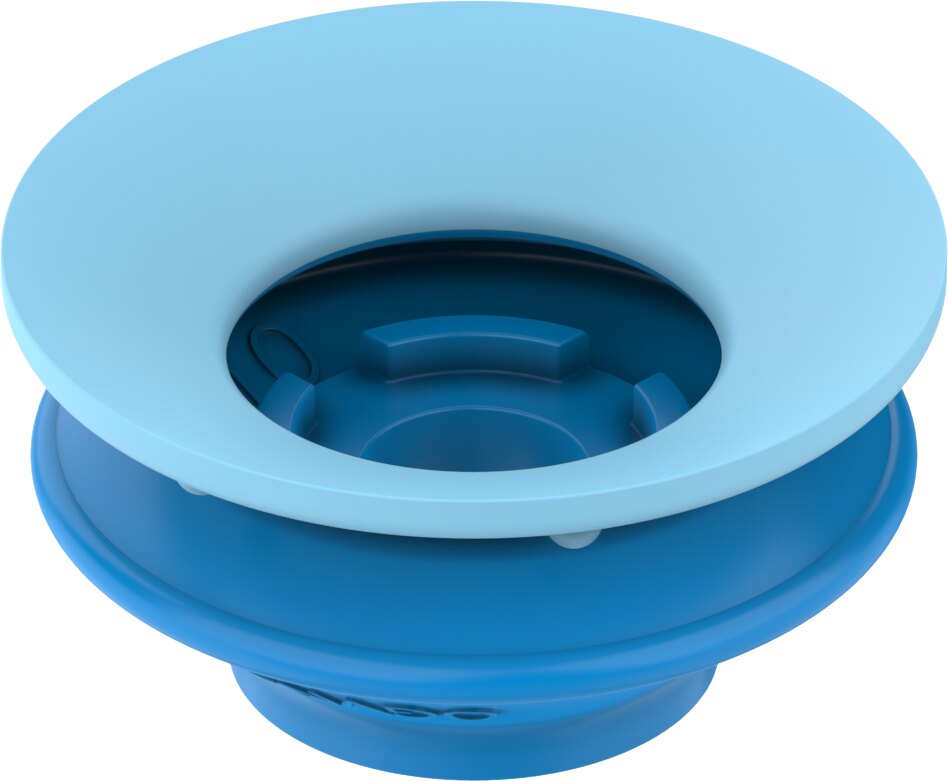

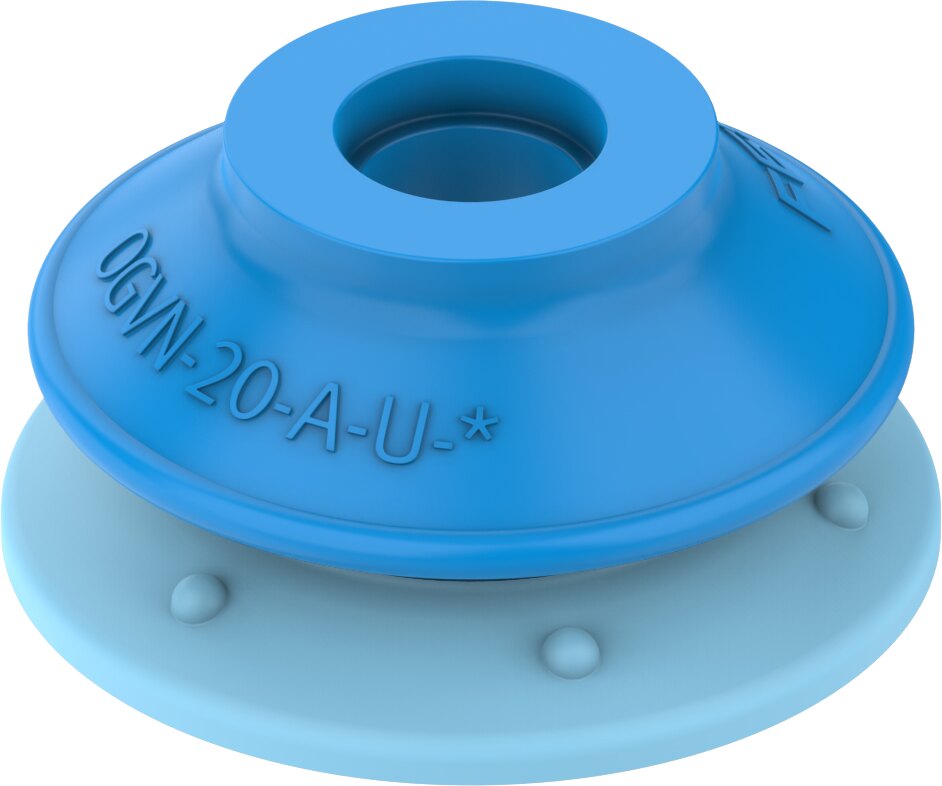

Round bellows suction cup Ø 20 mm PUR without connector OGVN-20-A-U - Festo 8204817

Festo ✓ Original product Brand new

The Festo OGVN-20-A-U suction cup (Ø 20 mm, PUR) is the suction element for vacuum grippers, with connecting parts chosen to suit the application. The 1.5-convolution bellows compensates 4.6 mm in height and touches down gently. PUR suction cup, Shore hardness A 70 +/-5.

Net
€14.62
excl. VAT
Item FES-8204817
Manufacturer no. OGVN-20-A-U
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo OGVN-20-A-U suction cup (Ø 20 mm, PUR) is the suction element for vacuum grippers, with connecting parts chosen to suit the application.

Why choose it

  • The 1.5-convolution bellows compensates 4.6 mm in height and touches down gently
  • PUR suction cup, Shore hardness A 70 +/-5
  • LABS (PWIS) conformity VDMA24364-A1/A2-L
  • Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
  • Ambient temperature 10 to 45 °C

Applications

Typical uses are parts with height offsets or slight curvature, such as cartons, bags or plastic mouldings.

Technical data

TypeOGVN-20-A-U
Festo part number8204817
Height compensator for suction cup4.6 mm
Suction cup diameter20 mm
Suction cup volume1.04 cm³
Position of connectionOn top
Mounting positionAny
Suction cup shapeRound, bellows with 1.5 convolutions
Operating pressure-0.95 to 0 bar
Nominal operating pressure-0.7 bar
Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-A1/A2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Ambient temperature10 to 45 °C
Product weight1.1 g
Type of mountingVia vacuum port
ColourBlue/light blue
Shore hardnessA 70 +/-5
Note on materialsRoHS compliant
Material suction cupPUR
Weight0.002 kg
ManufacturerFesto
Hersteller-NrOGVN-20-A-U
EAN4052568929794
Zolltarifnummer84799070
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialPUR
Diameter [mm]20
MediumAir
Temperature (max.)45
