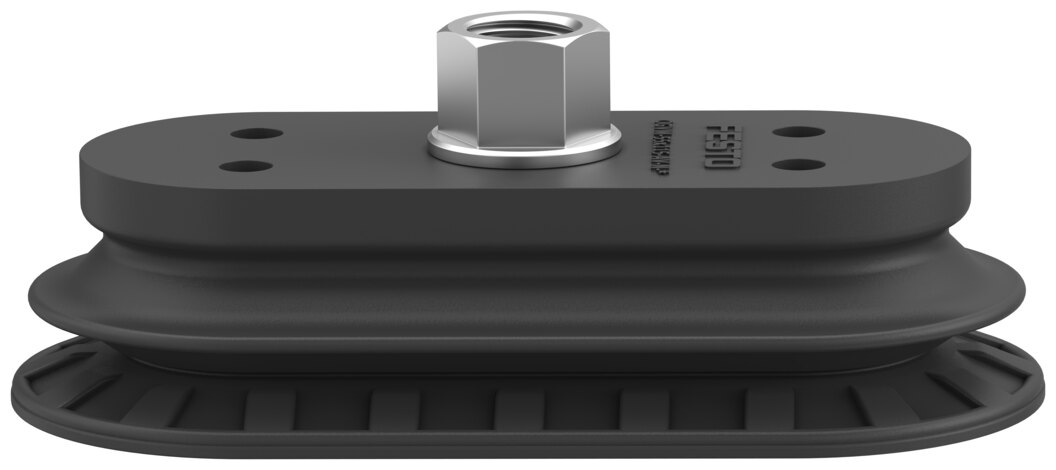

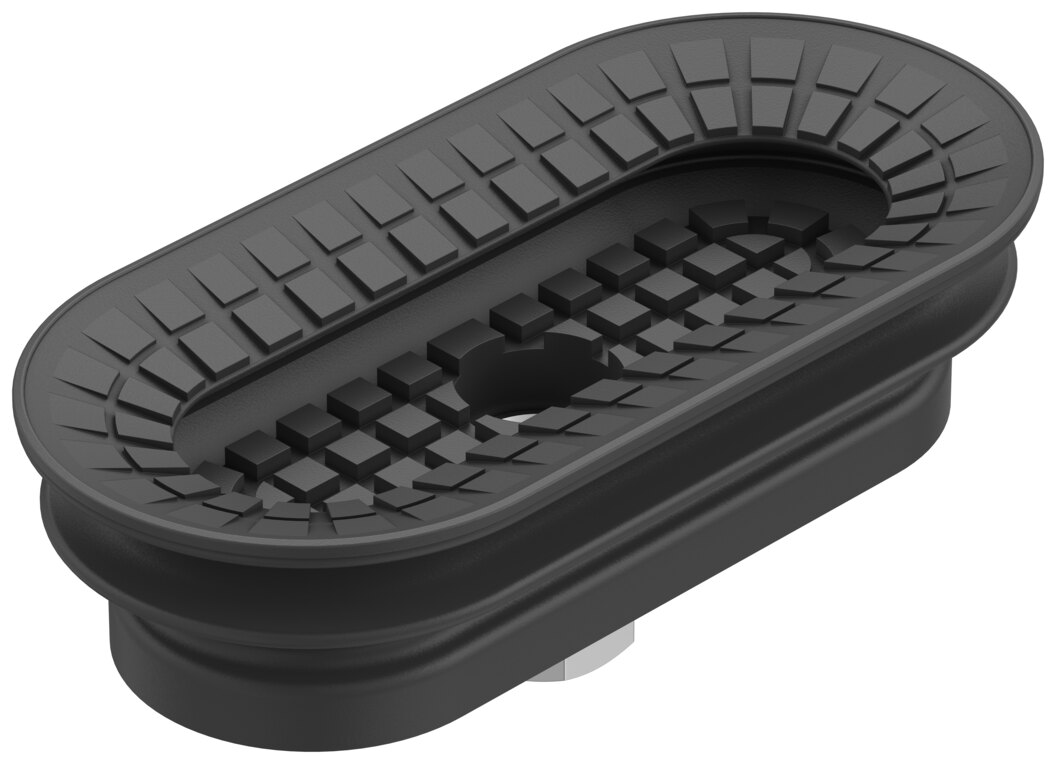

Oval bellows vacuum suction cup 55x115 mm NBR G1/4 OGVM-55X115-AV-N-G14F - Festo 8073867
The Festo OGVM-55X115-AV-N-G14F vacuum suction cup grips workpieces securely with 200 N of holding force at -0.6 bar nominal operating pressure. Oval bellows design made of NBR. The 1.5-convolution bellows compensates 13 mm in height and touches down gently.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo OGVM-55X115-AV-N-G14F vacuum suction cup grips workpieces securely with 200 N of holding force at -0.6 bar nominal operating pressure.
Key benefits
- 200 N holding force at -0.6 bar nominal operating pressure
- The 1.5-convolution bellows compensates 13 mm in height and touches down gently
- Suction cup material NBR with Shore hardness 60 +/-5
- Lateral force of 234 N at nominal operating pressure, relevant for fast sideways moves
- Vacuum connection female thread G1/4 on top, mounted directly via the port
Areas of use
Typical uses are parts with height offsets or slight curvature, such as cartons, bags or plastic mouldings.
Technical data
| Type | OGVM-55X115-AV-N-G14F |
|---|---|
| Festo part number | 8073867 |
| Height compensator for suction cup | 13 mm |
| Minimum workpiece radius | 50 mm |
| Nominal size | 8 mm |
| Suction cup size | 55x115 mm |
| Suction cup volume | 52 cm³ |
| Position of connection | On top |
| Mounting position | Any |
| Suction cup shape | Oval, bellows with 1.5 convolutions |
| Operating pressure | -0.95 to 0 bar |
| Nominal operating pressure | -0.6 bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -20 to 80 °C |
| Holding force at nominal operating pressure | 200 N |
| Vertical lateral force at nominal operating pressure | 234 N |
| Product weight | 76 g |
| Type of mounting | Via vacuum port |
| Vacuum connection | Female thread G1/4 |
| Colour | Black |
| Shore hardness | 60 +/-5 |
| Material screwed plug | Wrought aluminium alloy |
| Note on materials | RoHS compliant |
| Material suction cup | NBR |
| Weight | 0.115 kg |
| Manufacturer | Festo |
| Hersteller-Nr | OGVM-55X115-AV-N-G14F |
| EAN | 4052568301040 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | NBR |
| Thread | G 1/4 IG |
| Nominal size DN [mm] | 8 |
| Medium | Air |
| Thread type | Internal thread |
| Pneumatic connection | G1/4 IG |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
