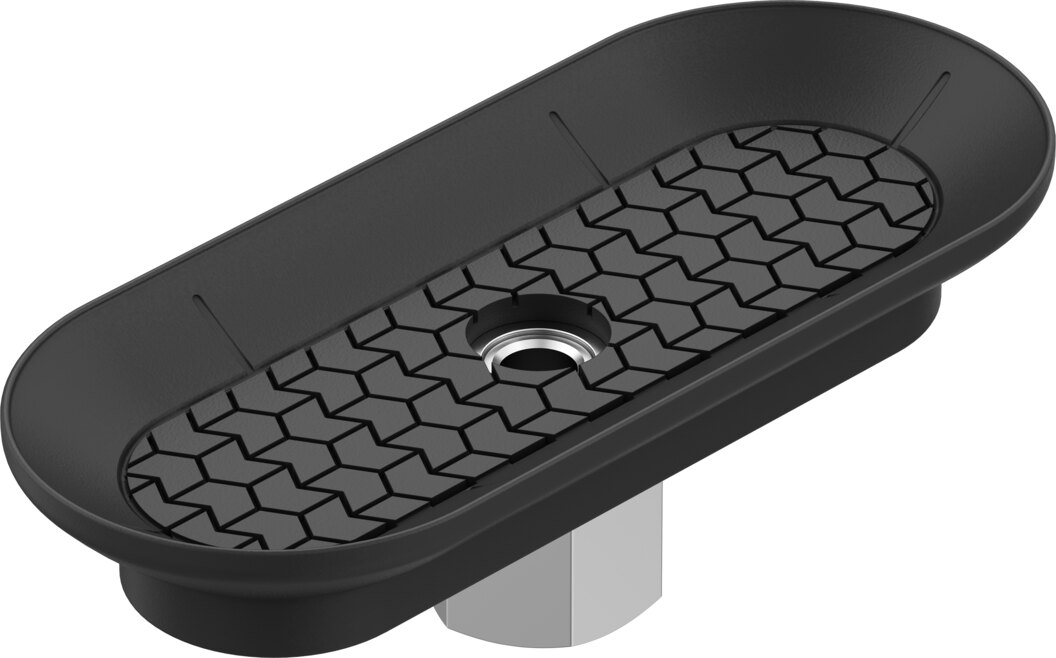

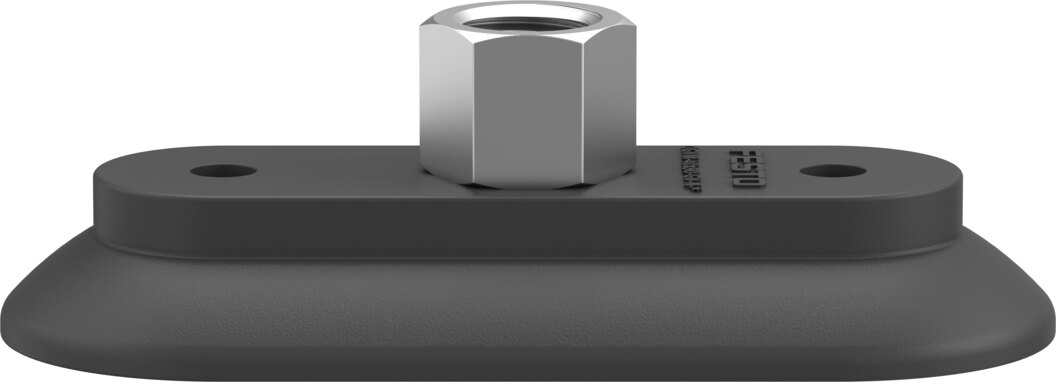

Suction cup with connection OGVM-40X90-GV-N-G14F - Festo 8073864
Net
excl. VAT
€60.87
Item
FES-8073864
Manufacturer no.
OGVM-40X90-GV-N-G14F
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Height compensator for suction cup | 6 mm |
|---|---|
| Min. workpiece radius | 35 mm |
| Nominal size | 6 mm |
| Suction cup size | 40x90 mm |
| Suction cup volume | 15.8 cm³ |
| Position of connection | On top |
| Mounting position | Any |
| Suction cup shape | Oval, bell-shaped |
| Operating pressure | -0.95 ... 0 bar |
| Nominal operating pressure | -0.6 bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -20 ... 80 °C |
| Holding force at nominal operating pressure | 311 N |
| Vertical lateral force at nominal operatin pressure | 192 N |
| Product weight | 40 g |
| Type of mounting | Via vacuum port |
| Vacuum connection | Female thread G1/4 |
| Colour | Black |
| Shore hardness | 60 +/-5 |
| Material screwed plug | Wrought aluminium alloy |
| Note on materials | RoHS compliant |
| Material suction cup | NBR |
| Weight | 0.043 kg |
| Manufacturer | Festo |
| Hersteller-Nr | OGVM-40X90-GV-N-G14F |
| EAN | 4052568301019 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
